MAX77958EVKIT-3S6

Product Details

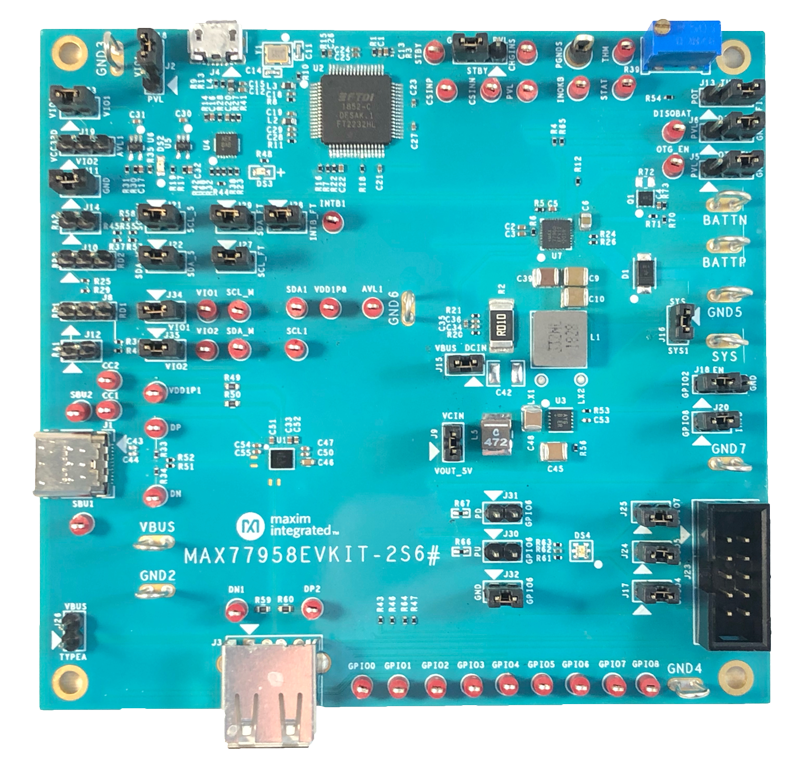

The MAX77958 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77958 Standalone USB Type-C and Power Delivery Controller.

The EV kit enables easy evaluation of the following features:

• USB Type-C Detection/PD Communication (See Table 1 in the data sheet for Acronyms)
  • Power Role (Sink and Source), Data Role UFP and DFP) detection
  • PD Adapter Detection and PD Communication
  • Integrated V_CONN Switch with OCP
  • Power/Data Role Swap
  • PPS (with PD Adapter Supporting PPS)
  • Audio and Debug Accessory Sink/Source Mode
  • Vendor Defined Message
• BC1.2 Legacy Charger Detection: SDP, CDP, DCP and DCD Timeout
• I²C Master to Control Companion IC
• Nine Configurable GPIOs (GPIO6 for SID)

The EV kit contains a MAX77961 charger to demonstrate the I²C master feature of the MAX77958. The MAX77961 is a buck-boost charger for 2S/3S Li+ battery application and is capable of 3.5V to 25V input voltage, with a maximum programmable fast charging current of 6A. The MAX77961 can be configured as the 2-cell or 3-cell application by the CONG pin resistor (R5), refer to the MAX77961 data sheet for more details.

The MAX16904 (a buck converter) is installed on the EV kit to provide 5V to V_CONN. The MAX77958 uses GPIO2 to enable the buck converter when the MAX77958 is in SOURCE Power Role.

A Micro-B USB cable is included in the package to serve as the interface from a USB port on a Windows^® PC to the slave I²C port on the MAX77958. A Windows based software provides a user-friendly interface to exercise the features of the MAX77958.

APPLICATIONS

• Cameras
• Game Players
• Handheld Devices
• Healthcare and Medical Devices
• Industrial Equipment PoE to USB Type-C Adapters
• Monitors
• Other USB Type-C Devices
• Portable Devices
• Power Banks
• Smartphones
• Tablets
