Overview

Features and Benefits

  • Quad-Phase Core Buck Regulator
    • Test Points for Both Local Output and Remote Sense
    • Exercise DVS with Simple GUI Tool
  • On-Board Load Pulse Generator Circuit
    • Adjust Load Current with Parallel Resistor Loads
    • Easily Perform Load Transients with the Press of a Button
  • I2C Interface
    • Access Through USB Port or Directly Through SDA and SCL Test Points
  • Lead-Free and RoHS Compliant
  • Software GUI and Command Module
  • Assembled and Tested

Product Details

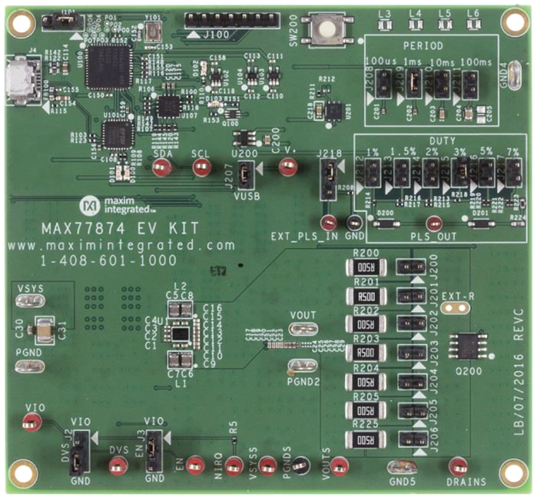

The MAX77874 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77874. The EV kit allows for easy evaluation of the MAX77874 quad-phase core buck regulator by providing access to the I2C bus and including an on-board load pulse generator circuit. The EV kit also serves as a guide for layout and design with the MAX77874.

Windows®-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77874.

Applications

  • AI, Machine Vision, Embedded Microprocessors
  • DSLR, Mirrorless, Action Cameras
  • Gaming, Drones, Robots, Virtual Reality
  • Smartphones, Tablets, Ultrabooks

Applicable Parts

Documentation & Resources

  • View All (3)
  • Data Sheet (1)
  • Evaluation Design File (2)
    • Document Type

    Tools & Simulations

    EE-Sim

    EE-Sim: Design & Simulate MAX77874 EVKIT

    Software Development

    MAX77874 Evaluation Kit Software, 1.0.2
    ZIP
