Overview
Features and Benefits
- One Half-Bridge Driver
- One 65V Rated LS FET
- Embedded Demagnetization Circuitry
- Integrated Current-Sense Amplifier
- Supply Voltage 8V to 36V
- Up to 3A Drive Current
- 1MHz I2C Serial Interface
- Full Set of Protections
Product Details

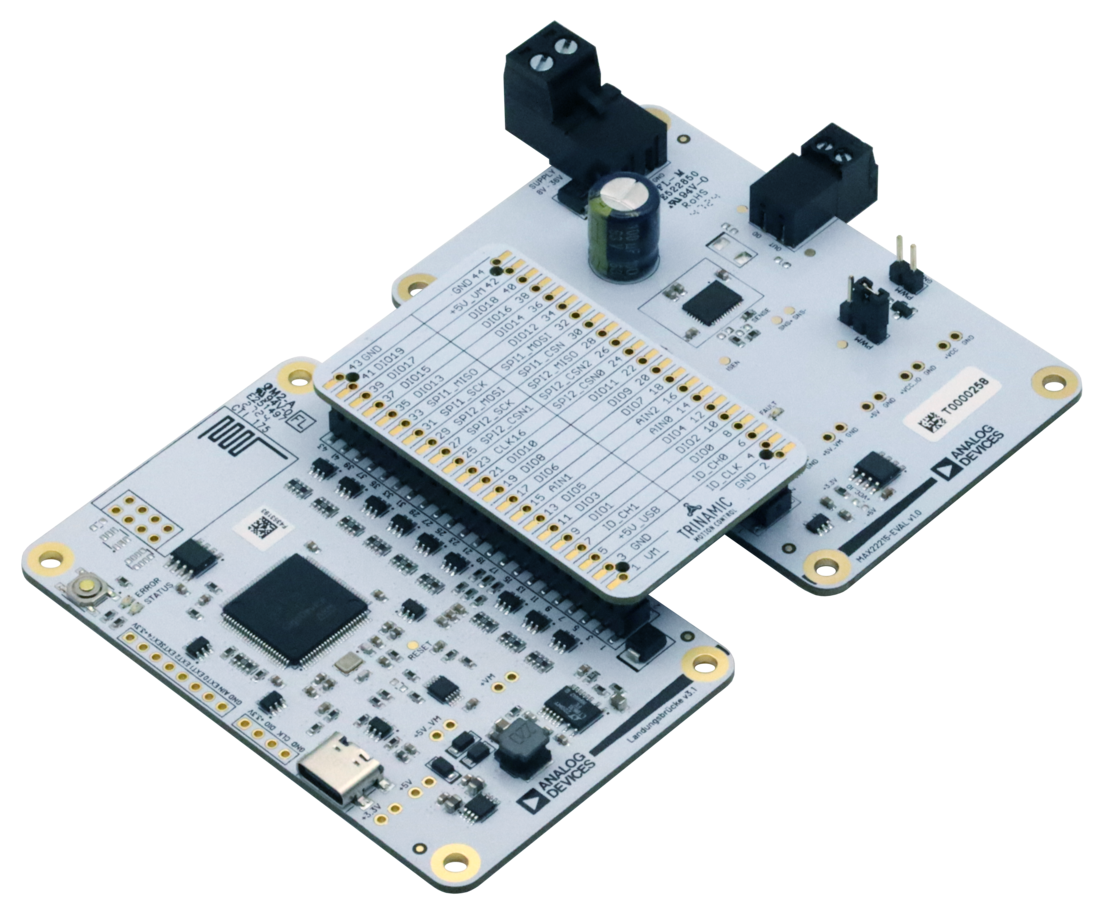

The MAX22215-EVAL allows evaluation of the MAX22215 in combination with the TRINAMIC evaluation board system or as a standalone board. It uses the standard schematic and offers several options to test different modes of operation. The MAX22215 is a 3A motor brake driver with a current-sense amplifier and advanced diagnostics.
APPLICATIONS
- Industrial Motor Brake Release
- Robotics Motor Brake Release
Applicable Parts
Documentation & Resources
-
MAX22215-EVKIT Gerber Files3/10/2026ZIP512 KB
