Overview

Features and Benefits

  • 2.7V to 16V Input Voltage Range
  • 0.5V to 5.8V Output Voltage Range
  • High Efficiency and Power Density
  • Low Component Count
  • Dual-Output or Single-Output Dual-Phase Operation
  • Optimized Performance
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

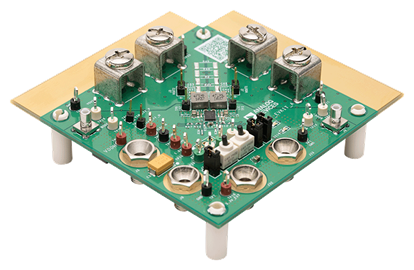

The MAX20828T evaluation kit (EV kit) is a reference platform designed for the evaluation of the MAX20828T, a dual-output, compact, low-cost, fully integrated, highly efficient, step-down DC-DC switching regulator IC. The IC is in a 21-pin, 3.5mm x 4.6mm, 0.5mm pitch, FC2QFN package. This EV kit can deliver up to 8A load per output. The two outputs can be connected as a single-output, dual-phase regulator that supports up to 16A load current. For more information, refer to the MAX20828T IC data sheet.

The EV kit comprises a fully assembled and tested PCB implementation of the MAX20828T. The jumper pins, test points, and the input/output connectors are included to provide a flexible and convenient use in a wide range of applications.

Applicable Parts

Getting Started

REQUIRED EQUIPMENT

  • MAX20828T EV kit
  • 2.7V to 16V power supply with optional 3.3V external power supply
  • 0 to 16A load
  • Digital voltmeters
  • Oscilloscope and probes
