Overview
Features and Benefits
- Input Voltage: 4.5V to 36V (Up to 50V Load Dump)
- Drives Six Strings of HB LEDs
- LED Current: 20mA to 120mA
- Demonstrates Both Phase-Shifted and Direct PWM Dimming
- Demonstrates Undervoltage Lockout and Output Short Protection
- Demonstrates Cycle-by-Cycle Current Limit and Thermal-Shutdown Feature
- Demonstrates 5V, 30mA LDO Output Capability
- Proven PCB and Thermal Design
- Fully Assembled and Tested
Product Details

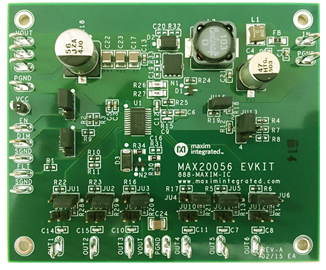

The MAX20056B evaluation kit (EV kit) demonstrates the MAX20056B, an integrated, 6-channel high-brightness LED driver with very wide PWM dimming ratio and phase shifting for automotive displays.
The EV kit operates from a DC supply voltage from 4.5V to 36V and the switching frequency is set at 400kHz. Spread-spectrum mode (SSM) is enabled for EMI improvement. The EV kit demonstrates direct dim and phase-shifted pulse-width modulation (PWM) dimming. The EV kit also demonstrates short-LED, open- LED, and overtemperature-fault protection.
For operation at switching frequencies other than 400kHz, the external components should be chosen according to the calculations in the MAX20056B IC data sheet.
Applications
- Automotive Central Information Displays
- Automotive Dashboards
- Automotive Head-Up Displays
- Automotive Navigation Systems
