MAX17760AAEVKIT
Overview
Features and Benefits
- Operates from a 7V to 76V Input Supply
- Up to 300mA Load Current
- 5V Output Voltage
- 400kHz Switching Frequency
- Selectable PWM and PFM Modes of Operation
- Enable/UVLO Input, Resistor-Programmable InputUndervoltage Lockout (UVLO) Threshold
- Adjustable Soft-Start Time
- Open-Drain RESET Output
- External Clock Synchronization
- Overcurrent and Overtemperature Protection
- Proven Printed Circuit Board (PCB) Layout
- Fully Assembled and Tested
- Complies with CISPR 22 (EN55022) Class BConducted and Radiated Emissions
Product Details

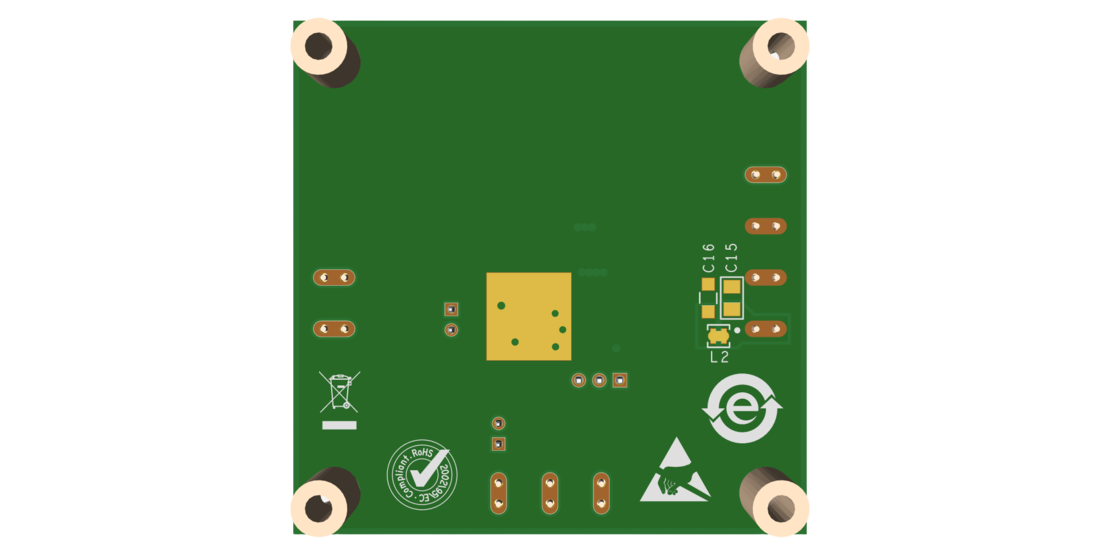

The MAX17760AAEVKIT# evaluation board provides a proven design to evaluate the MAX17760A high-efficiency, high-voltage, synchronous step-down DC-DC converter in a thin dual flat no-lead (TDFN) package. The application circuit is configured to demonstrate optimal performance and component sizes in the evaluation board. The evaluation board also provides a good layout example, optimized for conducted, radiated electromagnetic interference (EMI), and thermal performance.
The evaluation board is configured to operate at 400kHz switching frequency over a 7V to 76V input voltage range and can deliver up to 300mA load current.
The evaluation board features an adjustable input undervoltage lockout, adjustable soft-start, adjustable switching frequency, open-drain RESET signal, and external clock synchronization.
The MAX17760 converter data sheet provides a complete description of the part that should be read in conjunction with the user guide before operating the evaluation board.
Applicable Parts
Getting Started
Required Equipment
- 76V, 500mA DC power supply
- 2 Digital multimeters (DMM)
- Load capable of sinking up to 300mA
Documentation & Resources
-
MAX17760AAEVKIT Gerber Files5/11/2026ZIP1 MB
