Overview

Features and Benefits

  • Evaluates the MAX17291C IC
  • (3 x 2 Bump, 0.4mm Pitch)
  • 1.8V to 4.5V Input Range
  • 5.5V to 20V Configurable Output Voltage
  • Up to 80mA Input Peak Current
  • Proven 2-Layer, 1.5oz Copper PCB Layout
  • Demonstrates Compact Solution Size

Product Details

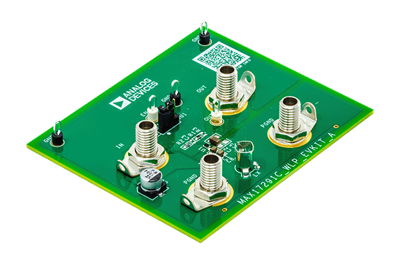

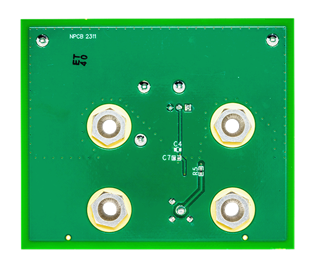

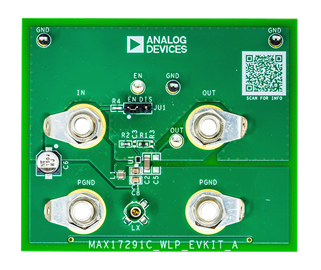

The MAX17291C evaluation kit (EV kit) evaluates the MAX17291C IC in a wafer-level package (WLP). The MAX17291C is a low quiescent current boost (step-up) DC-DC converter with an 80mA peak inductor current limit, TrueShutdown™, and short-circuit protection. The EV kit operates over an input range of 1.8V to 4.5V and provides resistor-configurable output voltages from 5.5V to 20V. The EV kit comes with the MAX17291CANT+ installed.

Markets and Technologies

Applicable Parts

System Requirements

  • MAX17291C WLP EV kit
  • 1.8V to 4.5V, 5A DC power supply
  • Digital voltmeter (DVM)
