Product Details

This page provides information for the Filter Wizard evaluation board system, for use with designs created in Analog Filter Wizard - www.analog.com/filterwizard. For other active filter-related evaluation boards, please visit Evaluation Board for Active Filters.

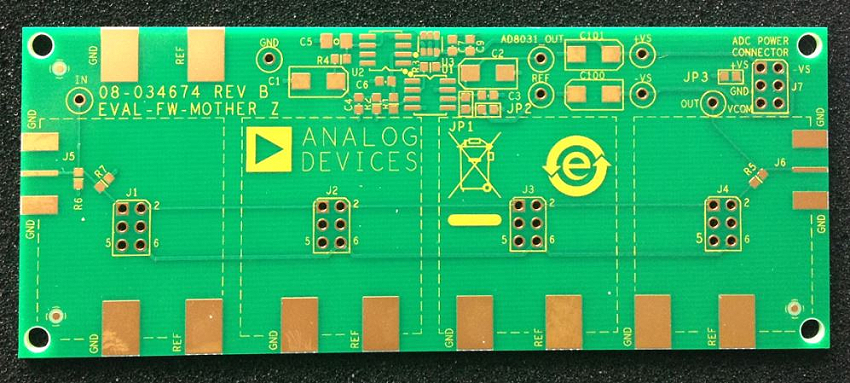

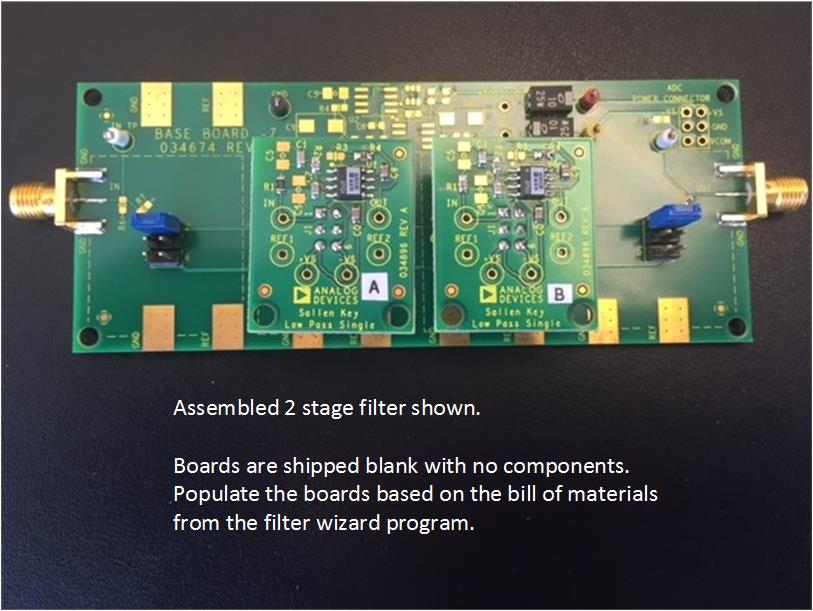

The Filter Wizard evaluation board system consists of a motherboard and several daughterboards. These boards are shipped unpopulateduse BOM and assembly information generated in Analog Filter Wizard to order components and assemble complete filter design.

The motherboard/daughterboard system gives you the following advantages:

  • Change stage order quickly – For example, to evaluate tradeoffs between various amplifiers (noise performance vs. input range, etc)

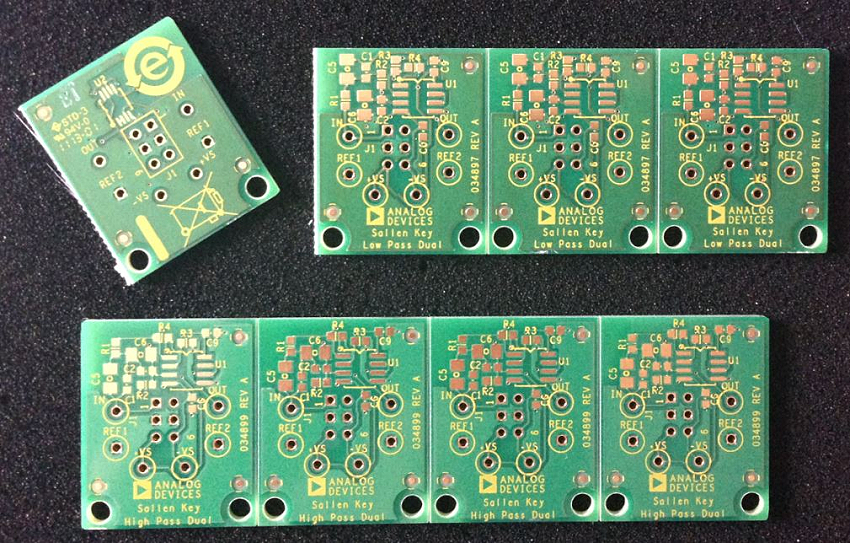

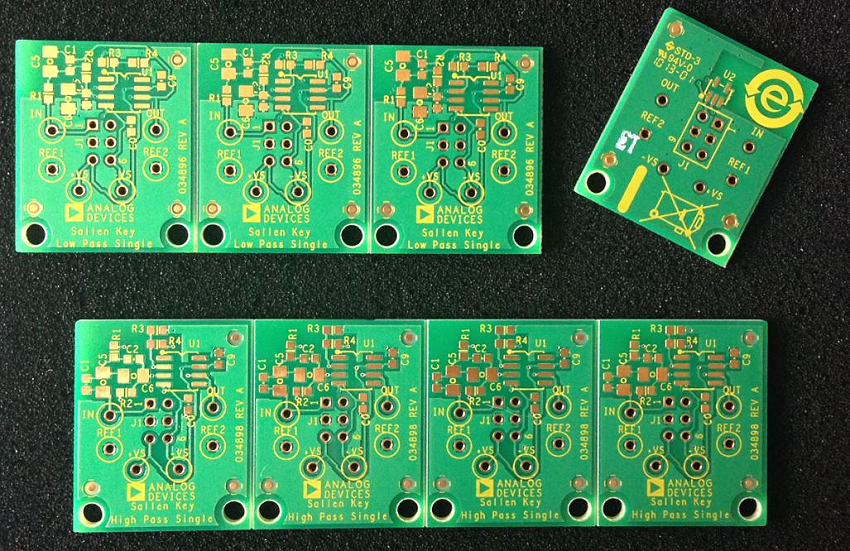

  • Use different stage types in the same design – There are several daughterboard models to support different types of stages. These daughterboards can be mixed-and-matched in the same design. For example, combining stages that utilize both single and dual package op amps. Also, combine a low-pass and a high pass stage to create a band-pass filter.
  • Measure individual stage performance easily – Single stages can be debugged in isolation.

Each daughterboard order contains boards for 4 stages.

Documentation & Resources

  • View All (4)
  • Design Tool (1)
  • Evaluation Design File (3)
  • Software

    Design Tool

    Analog Filter Wizard
    Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
