EVAL-ADRF6614
ADRF6614 Evaluation Board
Top
-web.gif?rev=2de928c95a544118b51e43005ddf417b&sc_lang=en&h=500&thn=1&hash=5488221B0E059A4E1016EC4B7F83F46B)
-web.gif?rev=4beb6d8691c14841a06575ea0eea1993&sc_lang=en&h=500&thn=1&hash=83B31DAAAEAD3143886A4426FAB7E515)
-web.gif?rev=2de928c95a544118b51e43005ddf417b&sc_lang=en&h=270&thn=1&hash=FDFCA2AE4399C48385E0CBF4125113C3)
-web.gif?rev=4beb6d8691c14841a06575ea0eea1993&sc_lang=en&h=270&thn=1&hash=16C94EC771175AF48A071650F6E3BDE0)
Overview
Features and Benefits
- Full featured evaluation board for the ADRF6612/ADRF6614
- Single supply: 5 V operation
Product Details

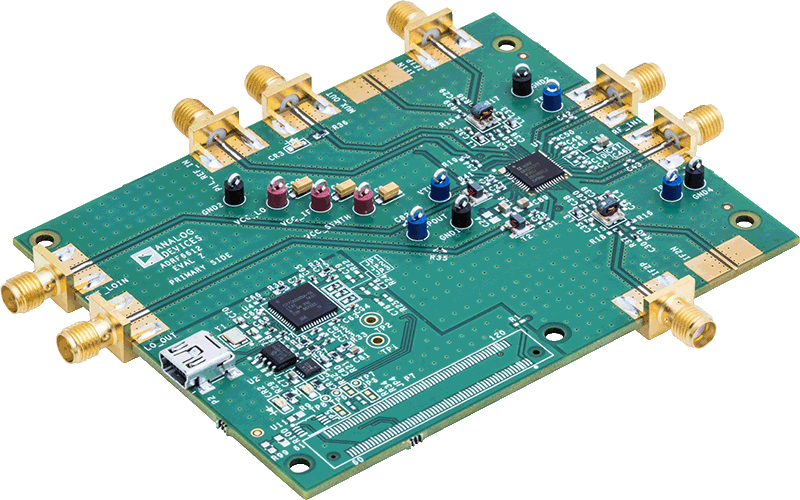

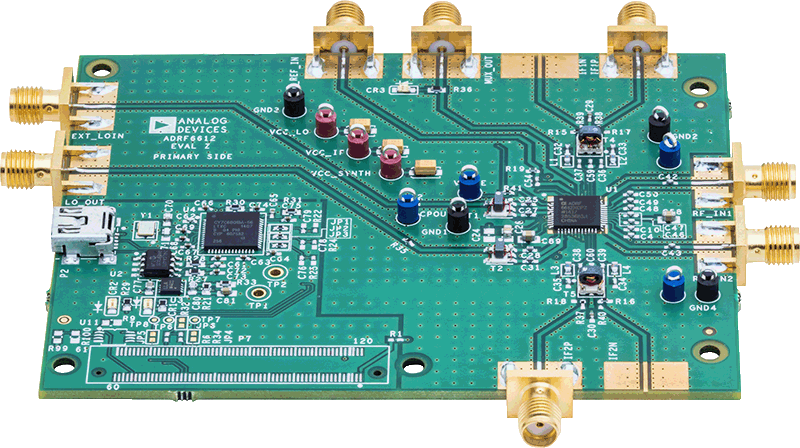

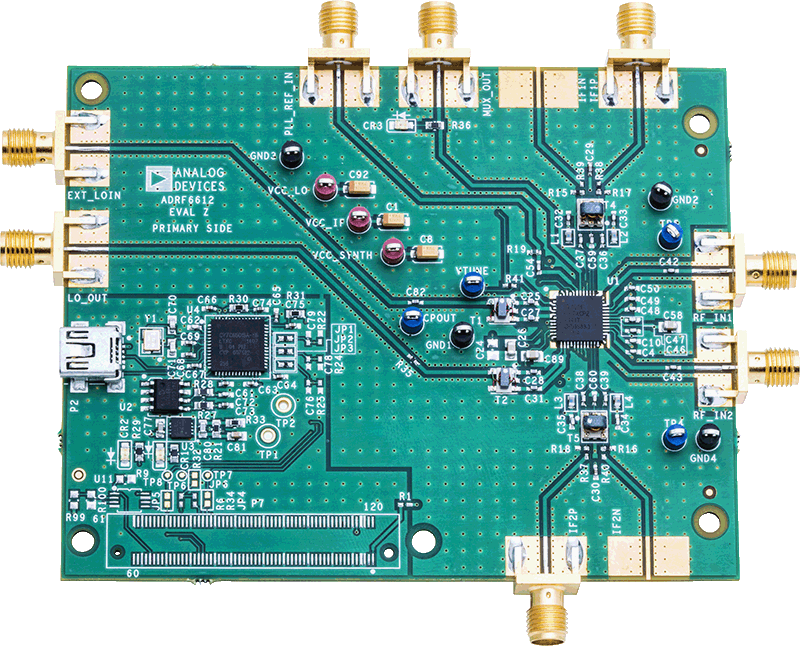

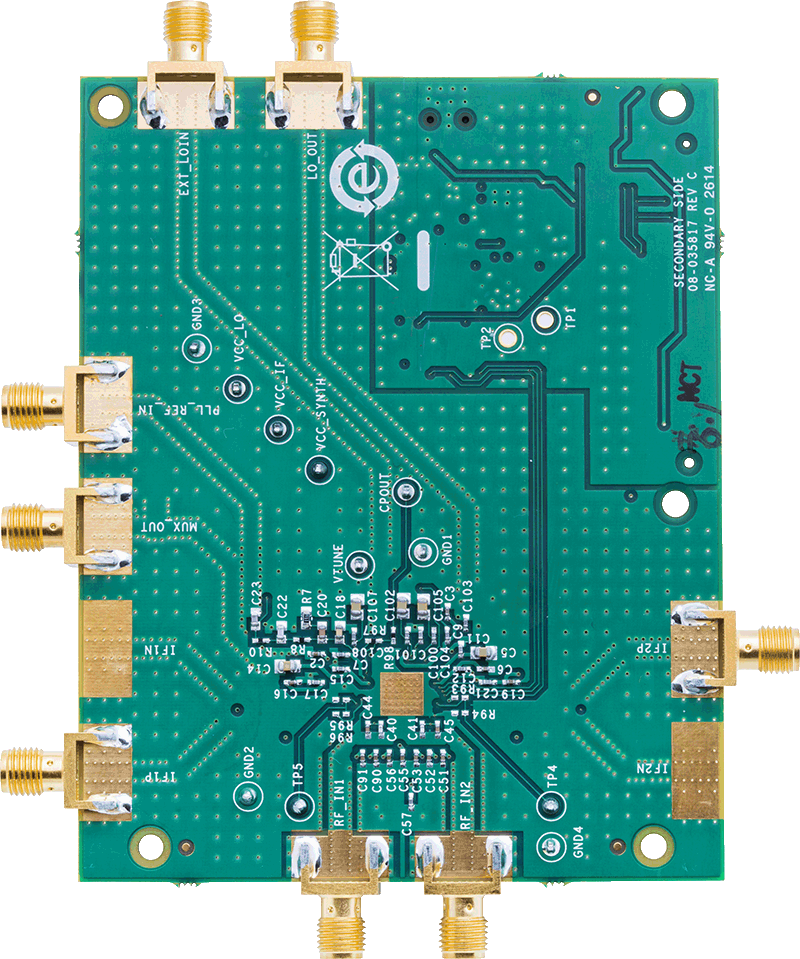

This page contains information for evaluating the ADRF6612/ADRF6614, 700 MHz to 3000 MHz Rx Dual Mixer with Integrated Fractional-N PLL and VCO. The ADRF6612/ADRF6614 is a full featured evaluation board with a single supply of 5 V.The user guide UG-969 allows the user to quickly power up and run the software for the ADRF6612/ADRF6614 integrated synthesizer and mixers. It complements the ADRF6612/ADRF6614 data sheet, which should be used in conjunction with the user guide.
The ADRF6612/ADRF6614 evaluation board provides all of the support circuitry required to operate the ADRF6612/ADRF6614 in various modes and configurations.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
ADRF6614 Gerber Files5/19/2017ZIP377 K
