Overview

Features and Benefits

  • Contains ADRF5300 device and external components
  • RF connectors
  • Simple connection to test equipment
  • On-board through line for calibration

Product Details

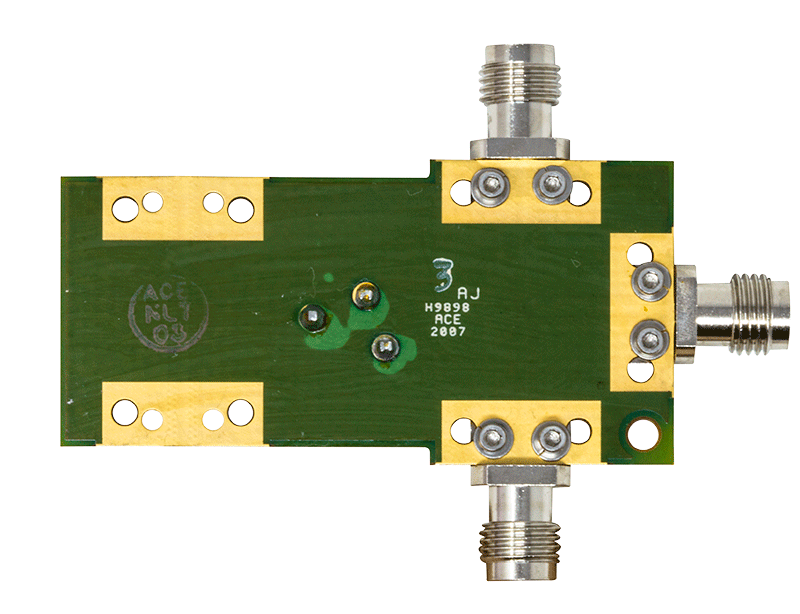

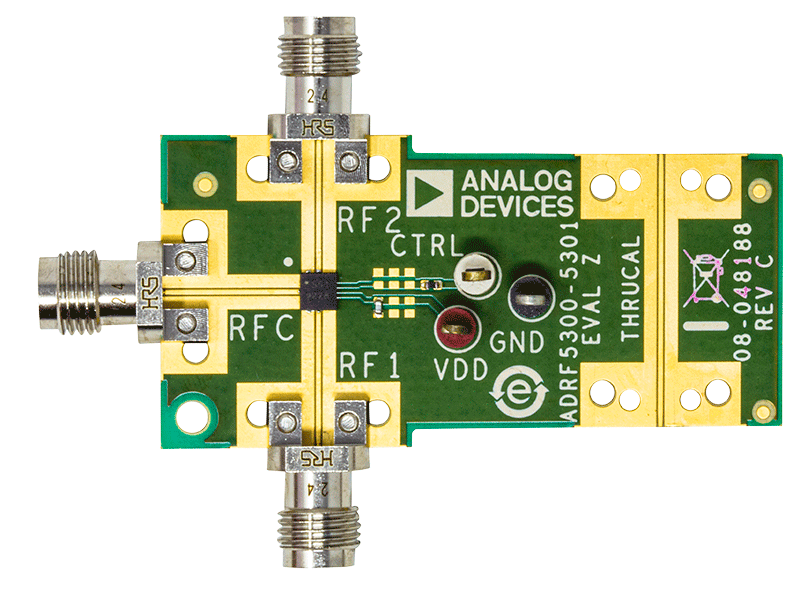

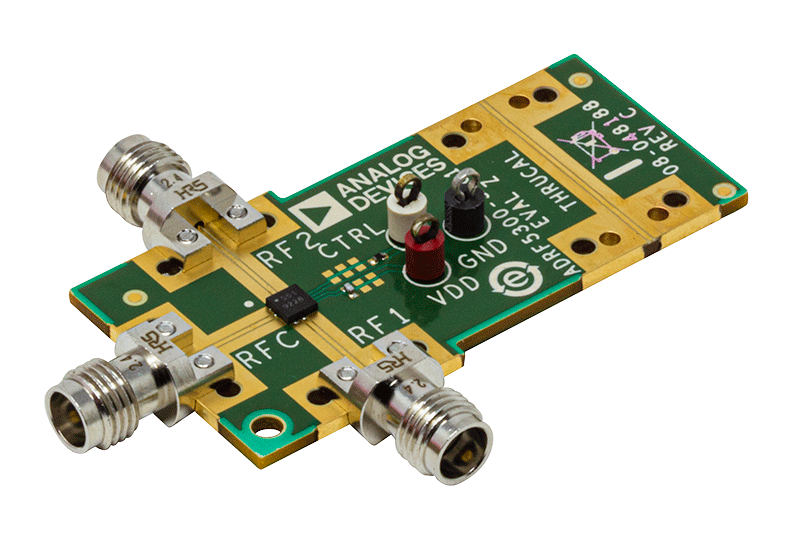

The ADRF5300-EVALZ is designed to evaluate the features and performance of the ADRF5300 silicon, SPDT, reflective switch, which has a frequency range of 24 GHz to 32 GHz. The ADRF5300-EVALZ (see Figure 1) is populated with a 2.4 mm Hirose connector.

For full details on the ADRF5300, see the ADRF5300 data sheet, which must be consulted in conjunction with this user guide when using the ADRF5300-EVALZ.

Markets and Technologies

Applicable Parts

Getting Started

EQUIPMENT NEEDED

  • DC power supply
  • Network and spectrum analyzer
  • Signal generator
