EVAL-ADRF5142
Evaluating the ADRF5142 High Power, 40 W Peak, Silicon SPDT Switch, 8GHz to 11 GHz
Top
Overview
Features and Benefits
- Full-featured evaluation board for the ADRF5142
- Easy connection to the test equipment
- Through line for calibration
Product Details
The ADRF5142 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process.

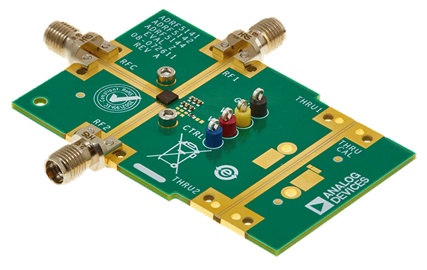

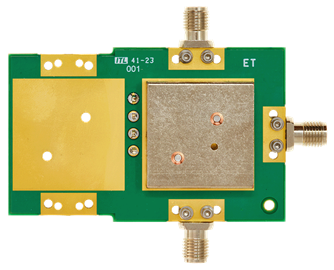

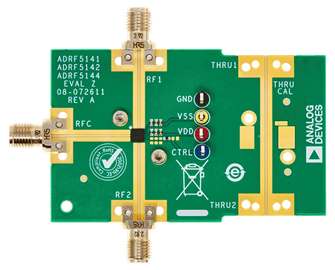

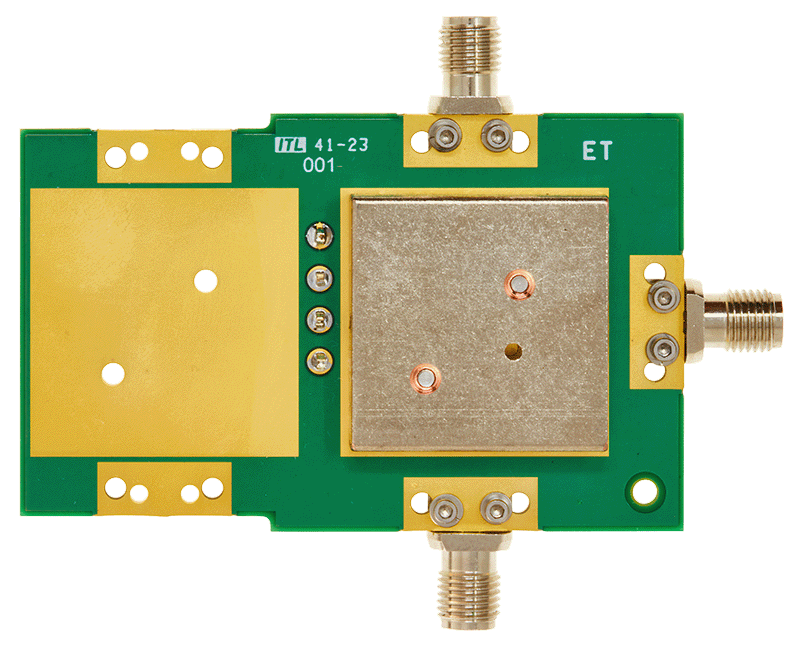

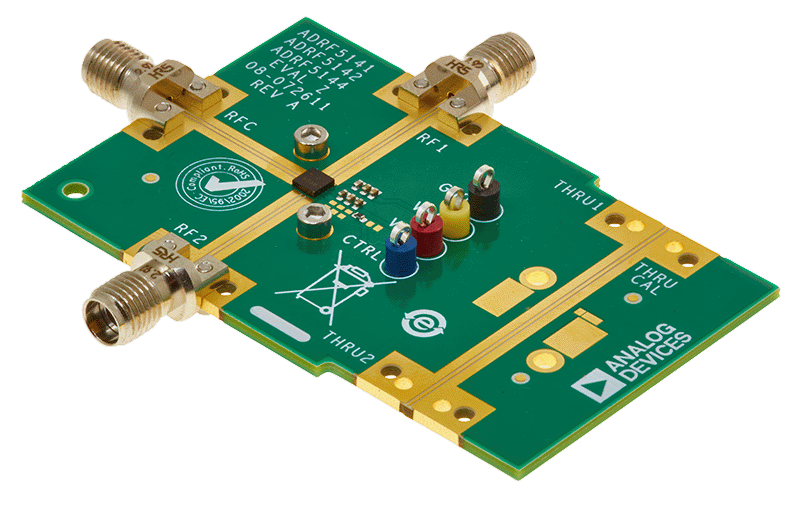

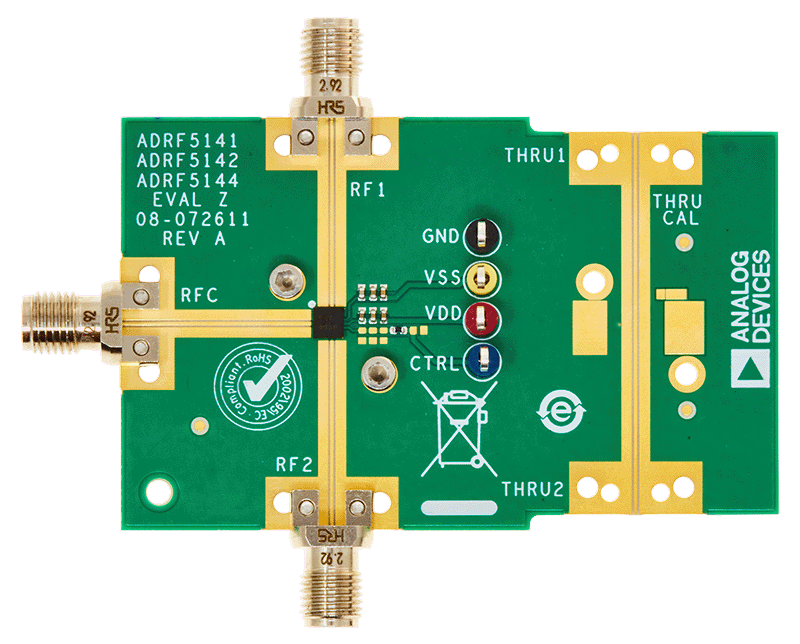

This user guide describes the ADRF5142-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5142. The evaluation board is shown in Figure 1.
The ADRF5142 data sheet provides its full specifications. Refer to the ADRF5142 data sheet in conjunction with this user guide when using the ADRF5142-EVALZ.
Markets and Technologies
Applicable Parts
Getting Started
- DC power supplies
- Network analyzer
