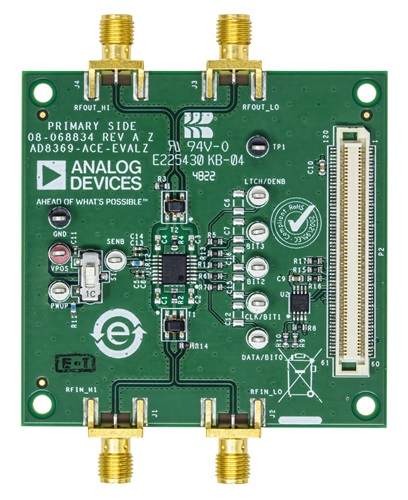

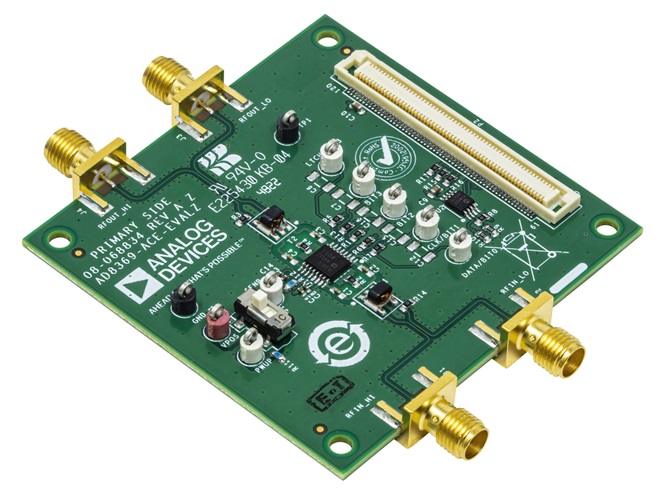

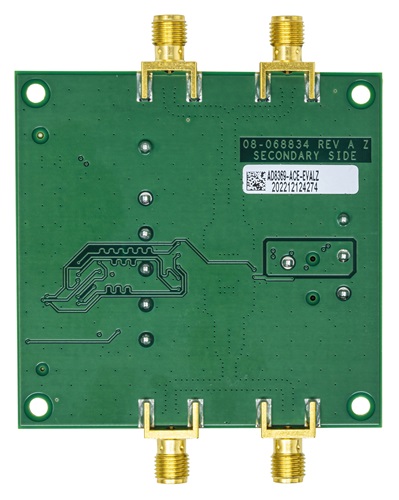

The AD8369-ACE-EVALZ evaluation board allows the manual control of the AD8369 through the USB port on a Microsoft® Windows® PC via a SDP-S interface board.

Additional information on the AD8369 is provided in the AD8369 data sheet. Consult the data sheet in conjunction with this user guide when using the AD8369-ACE-EVALZ evaluation board.

Markets and Technologies

Applicable Parts

Getting Started

EQUIPMENT NEEDED

  • 5V DC power supply
  • EVAL-SDP-CS1Z (SDP-S)
  • Signal generator
  • Spectrum analyzer
  • Microsoft Windows PC with a USB port

Documentation & Resources

  • View All (3)
  • User Guide (1)
  • Data Sheet (1)
  • Evaluation Design File (1)
    • Document Type

    Software

    ACE Software

    ZIP
    1 KB
    ACE plug-in for Board.AD8369 1.2022.28400 [May 11 23]
    The AD8369 is a high performance digitally controlled variable gain amplifier(VGA) for use from low frequencies to a –3 dB frequency of 600 MHz at all gain codes.
    EXE
    157 MB
    ACE Installer Software 1.30.3369.1491 [Jul 10 25]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE software page >
