EVAL-AD7605-4 Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Full-featured evaluation boards for the AD7606/AD7606-6/AD7606-4, AD7607, AD7608, and AD7605-4
On-board power supplies
Standalone capability
System demonstration platform (SDP) compatible (EVAL-SDP-CB1Z
PC software for control and data analysis

Product Details

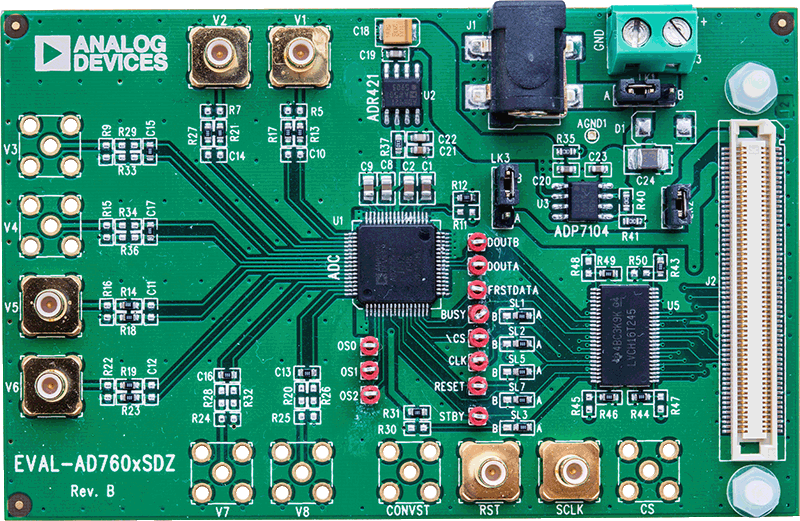

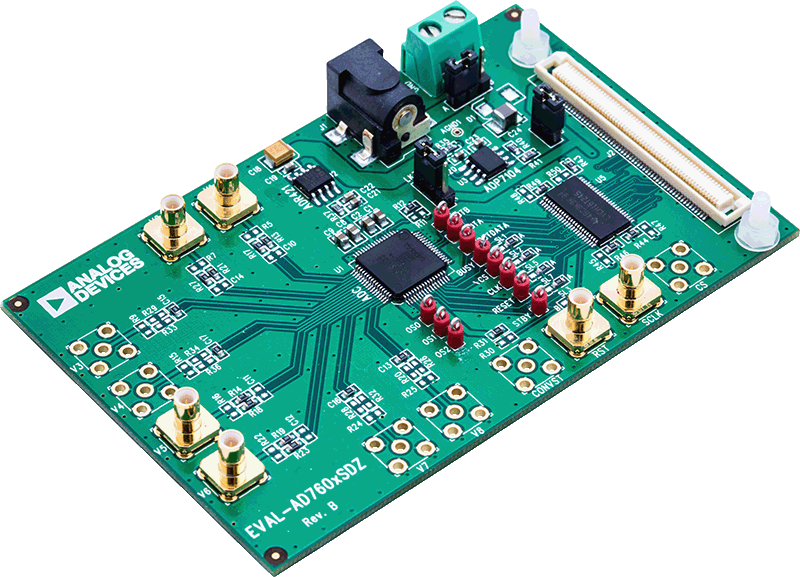

The EVAL-AD7605-4SDZ is a fully featured evaluation kit for the AD7605. This board operates in standalone mode or in conjunction with the Evaluation Controller Board, EVAL-SDP-CB1Z. When operated with the Evaluation Controller Board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Evaluation Controller Board.
