Product Details

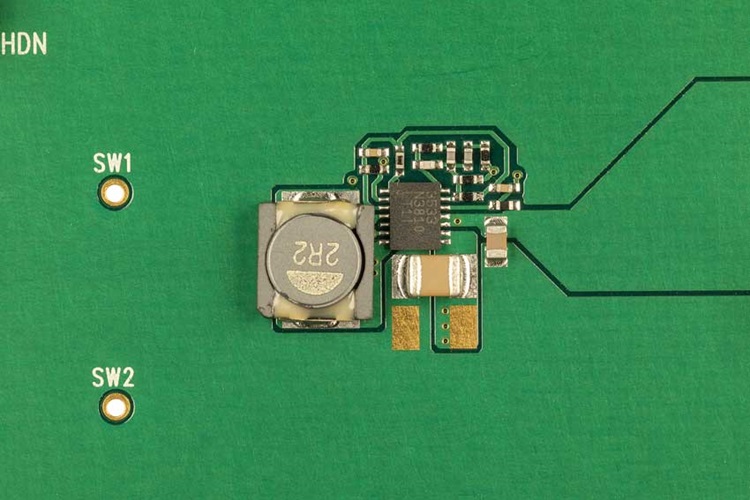

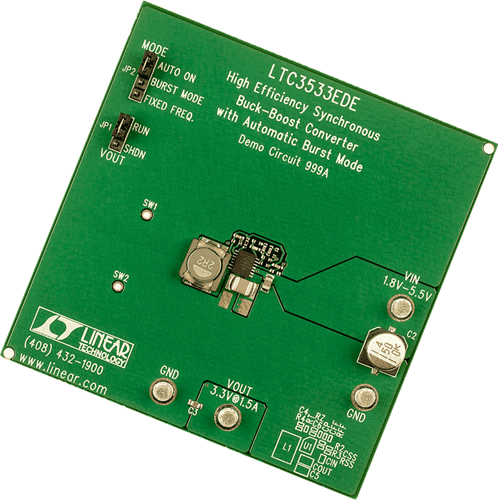

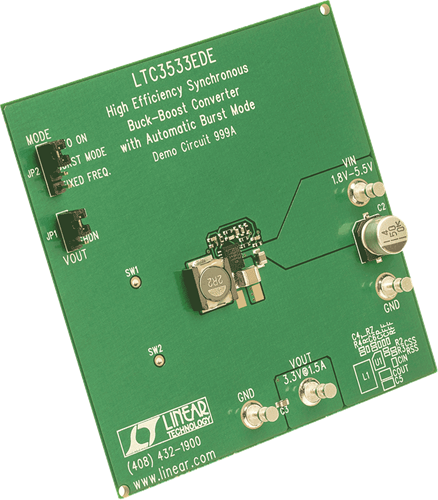

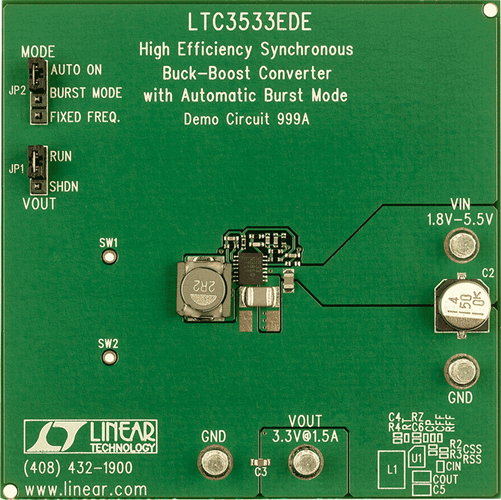

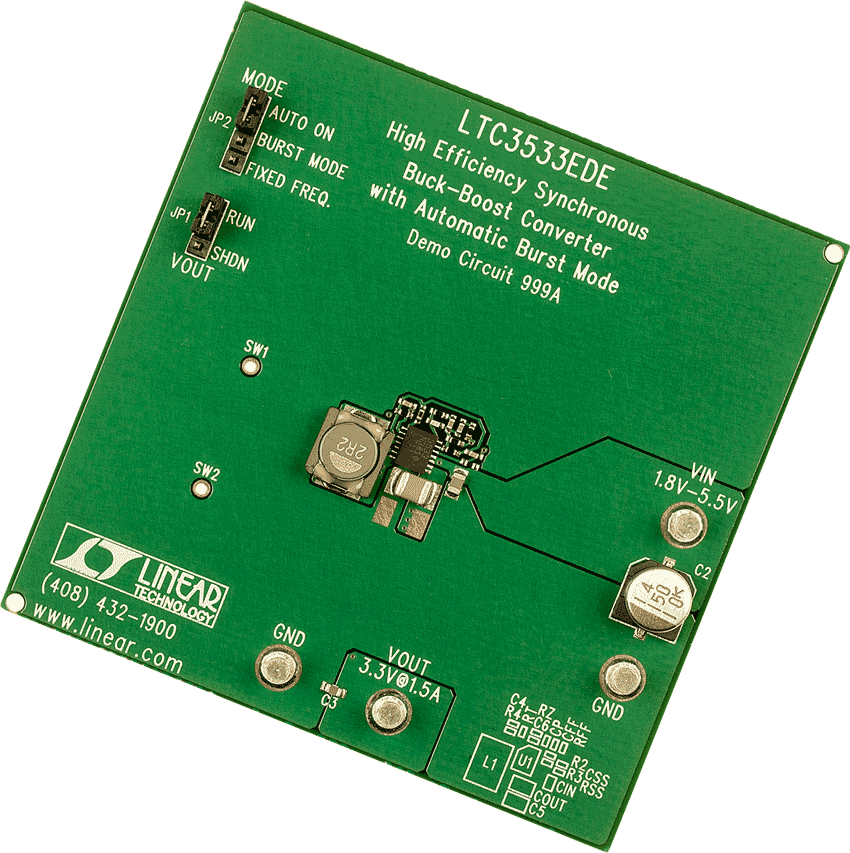

Demonstration circuit 999A is a wide input range, 3.3V, synchronous buck-boost converter featuring the LTC3533.  This circuit is designed to demonstrate the high level of performance, efficiency and small solution size attainable using this part in a buck-boost power supply. It operates at 1MHz and produces a regulated 3.3V from an input voltage range of 2.4V to 5.5V, and operates down to 1.8V with de-rated output current.

Applicable Parts

Documentation & Resources

  • View All (3)

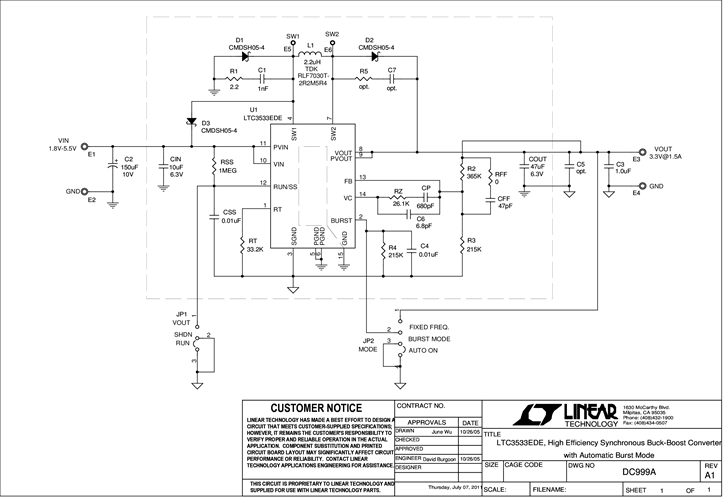

  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
