DC697A
LT1943EFE | 4-Output Switching Regulator For TFT-LCD Panels, VIN = 4.5V - 8V, VOUT = 3.3V @ 1.5A, 13V @ 500mA, 30V @ 20mA, -10V @ 50mA
Top
Overview
Product Details
DC697A: Demo Board for the LT1943 High Current Quad Output Regulator for TFT LCD Panels.
Applicable Parts
Documentation & Resources
-

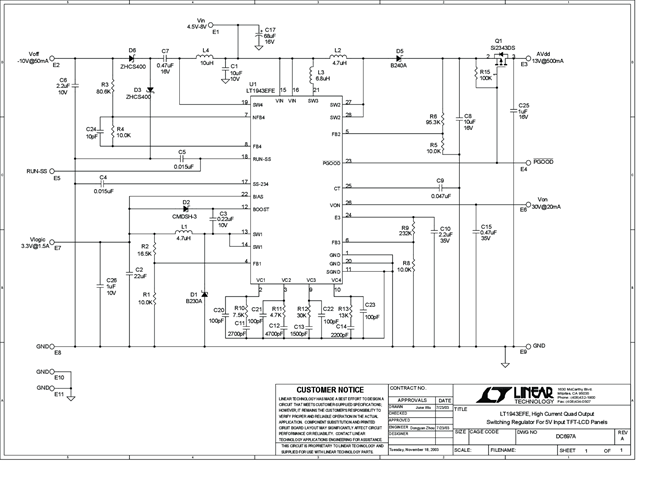

DC697A - Schematic9/24/2009PDF60K
-
DC697A - Demo Manual9/24/2009PDF112K
-
DC697A - Design File9/24/2009ZIP582K
