Overview

Product Details

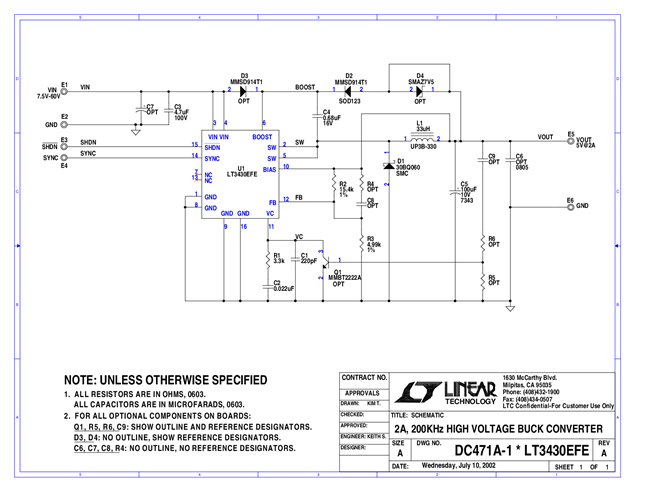

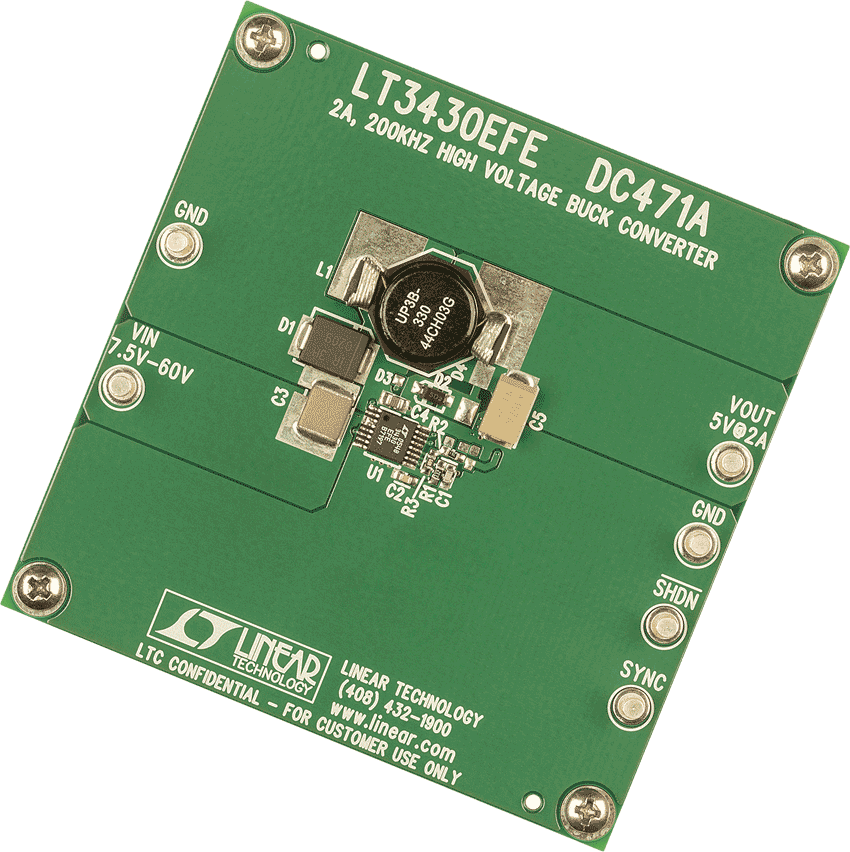

Demonstration circuit 471 is a 60V, 200kHz, monolithic step-down DC/DC switching converter using the LT3430. The circuit is designed for a 7.5V to –60V input, and provides a 5.0V output at 2A load current.
