Overview

Product Details

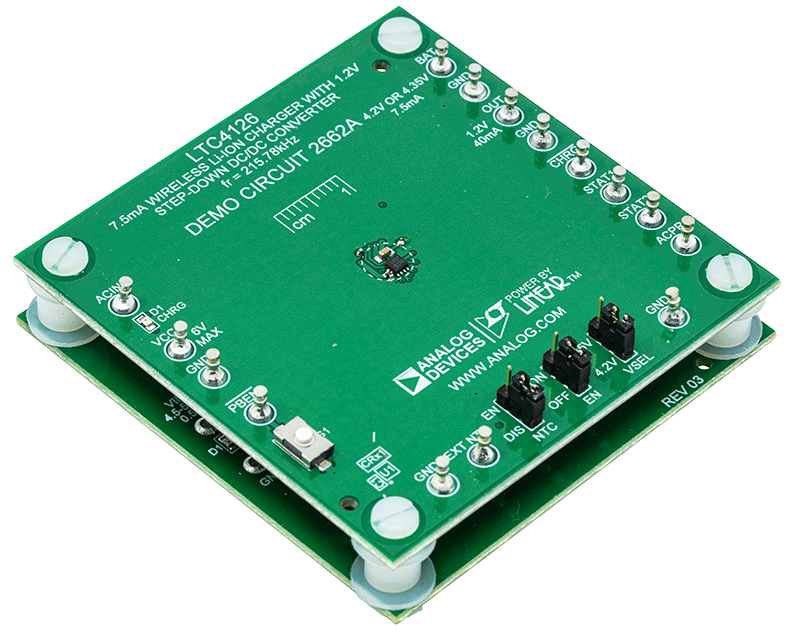

DC2663A-KIT is a Demonstration kit of the DC2662A receiver board, featuring the LTC4126EDC, the DC2661A singleswitch transmitter board featuring the LTC6992 and the DC2687A application-sized receiver board featuring the LTC4126EDC. The DC2662A can charge a single Li-Ion battery at up to 7.5 mA with an air gap of 2.0 mm to 4.0 mm.

Applicable Parts

Package Contents

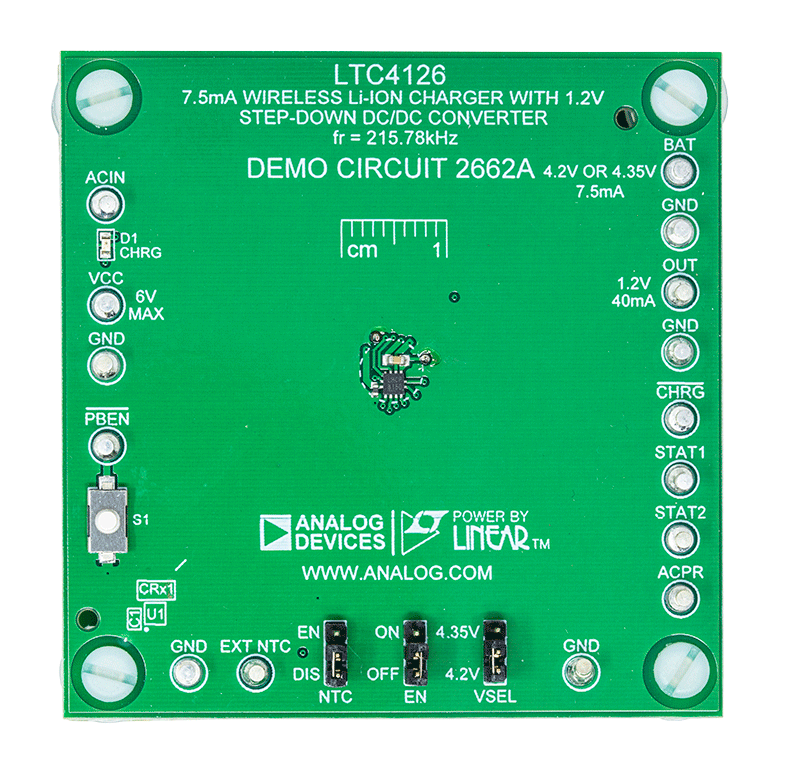

  • 1 × DC2662A (LTC4126EDC) Receiver Demo Board

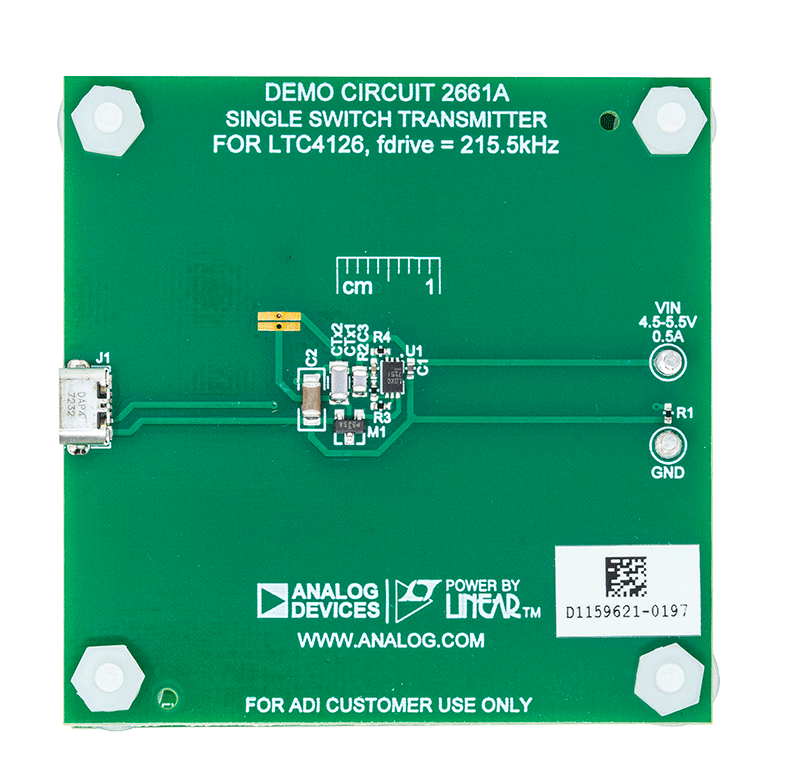

  • 1 × DC2661A (LTC6992) Transmitter Demo Board
  • 2 × DC2687A (LTC4126EDC) Application-Sized Receiver Demo Board
