DC2581A-B
LTC2341-16 Demo Board | Dual, 16-Bit, 666ksps Differential ±5V Input SoftSpan ADC with Wide Input Common Mode Range (Requires DC590, DC2026, DC890)
Top
Overview
Product Details
Demonstration circuit 2581A shows the proper way to drive the LTC2341 ADC. The LTC2341 is a low noise, high speed, simultaneous sampling 16-/18-bit successive approximation register (SAR) ADC. The LTC2341 has a flexible SoftSpan™ interface that allows conversion-by-conversion control of the input voltage span on a per-channel basis. An internal 2.048V reference and 2× buffer simplify basic operation while an external reference can be used to increase the input range and the SNR of the ADC.
Applicable Parts
Documentation & Resources
-

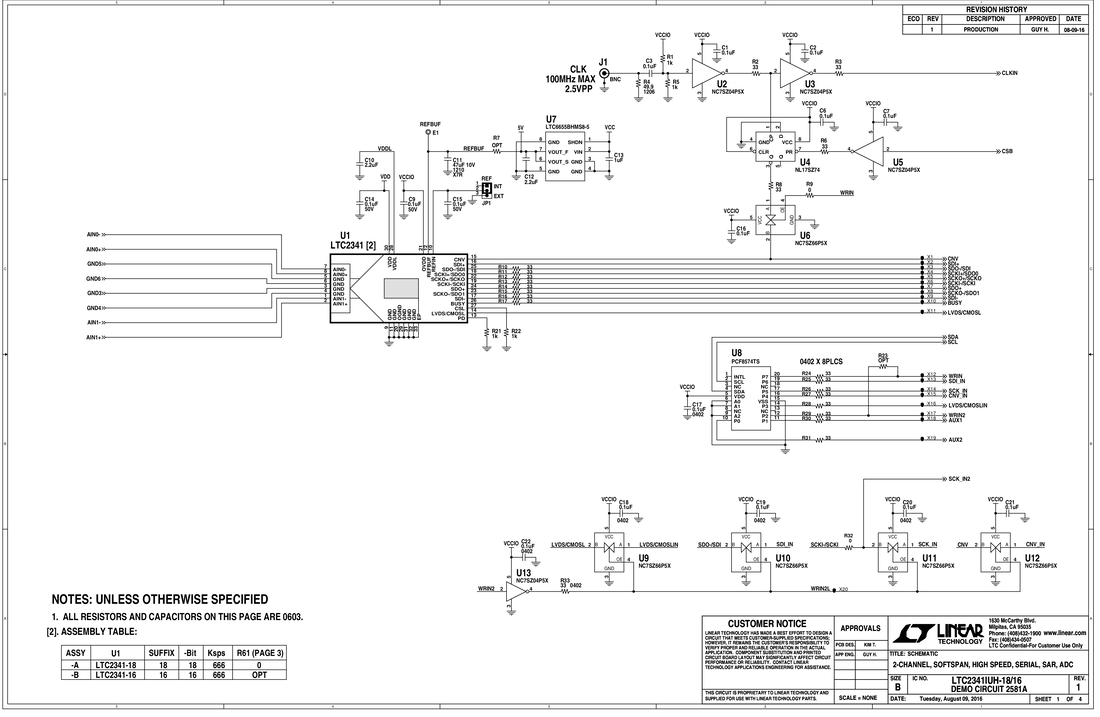

DC2581A - Schematic12/12/2016PDF122K
-
