DC2364A
LTC2873 Demo Board | Single Bus RS232/RS485 Multiprotocol Transceiver with Integrated Termination (Shared I/O) (DC2026 Optional)
Top
Overview
Product Details

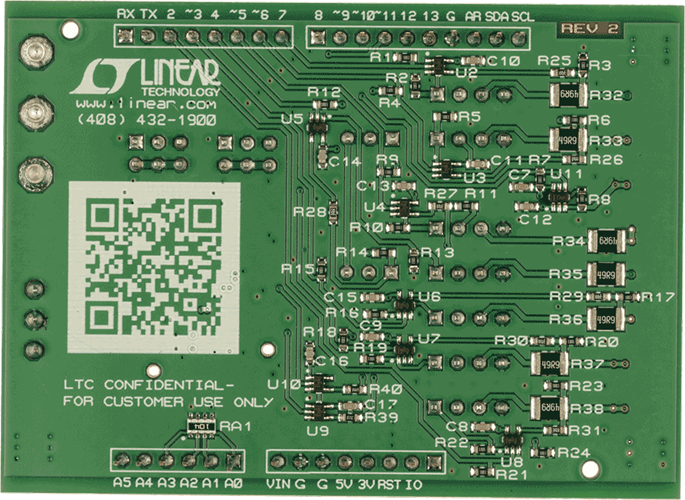

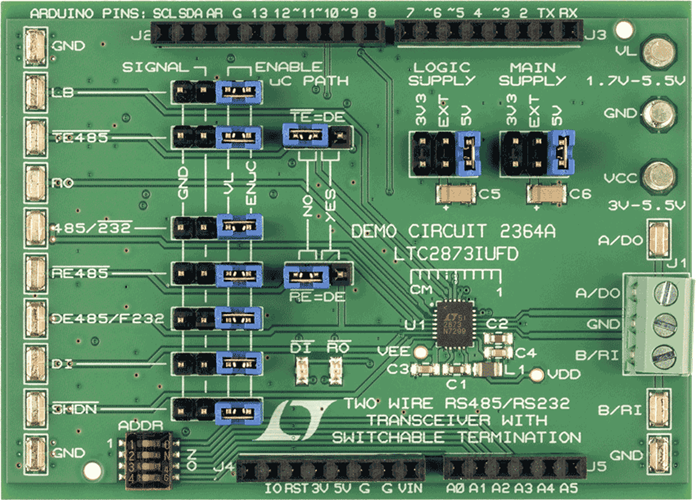

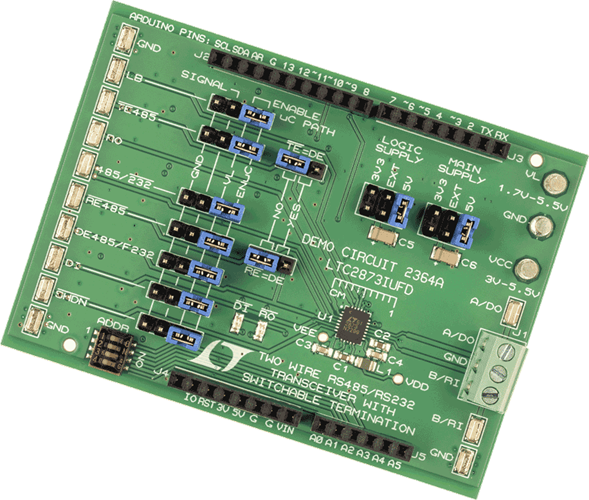

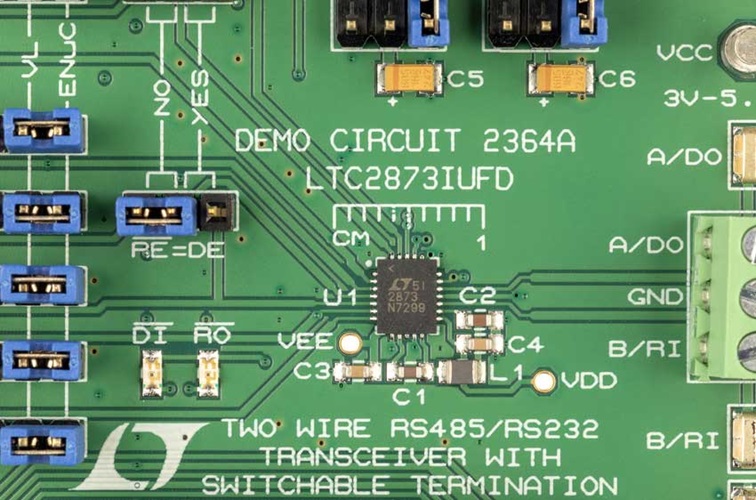

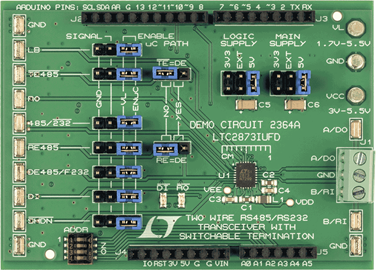

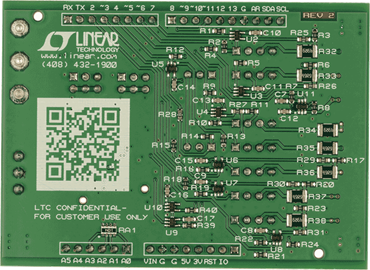

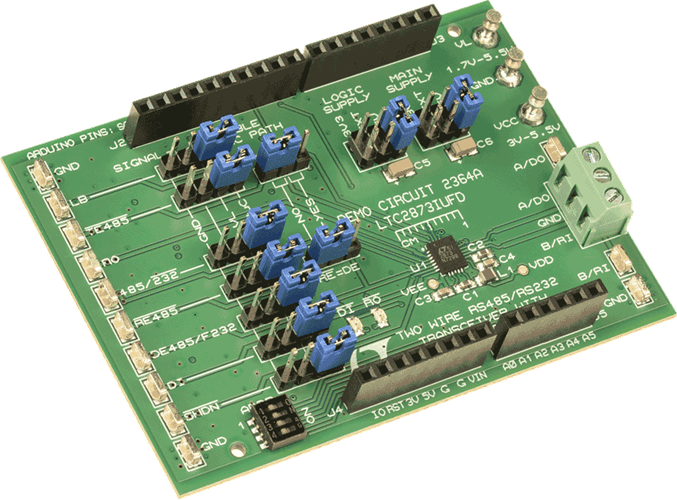

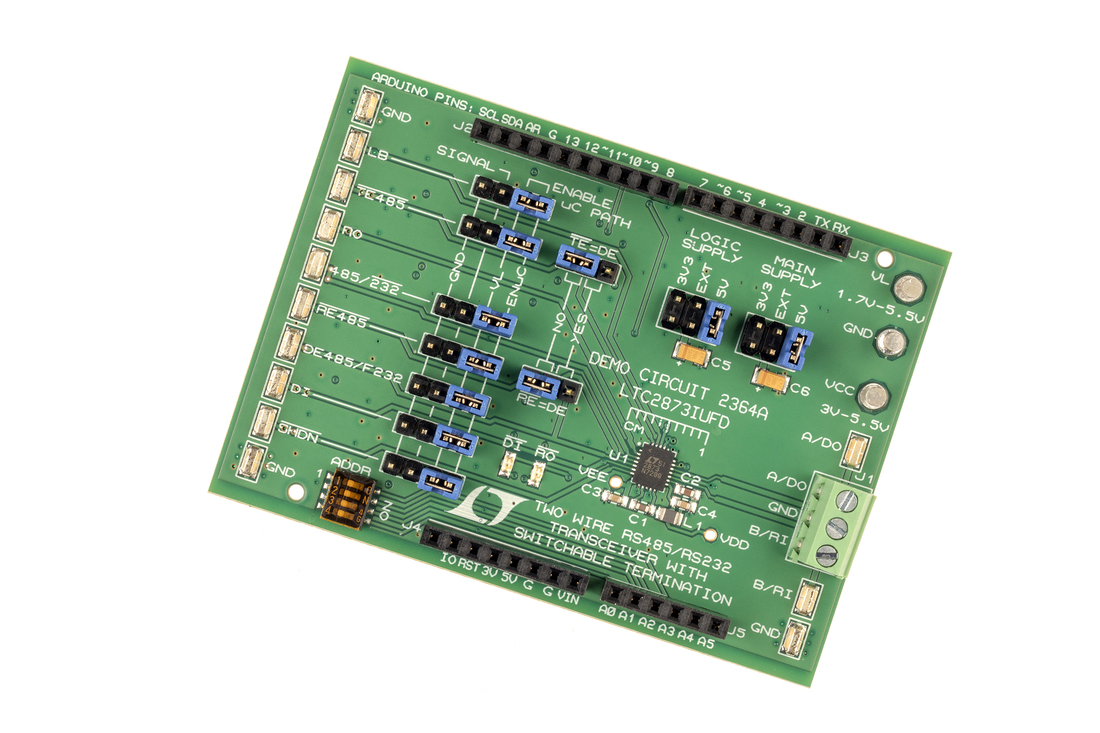

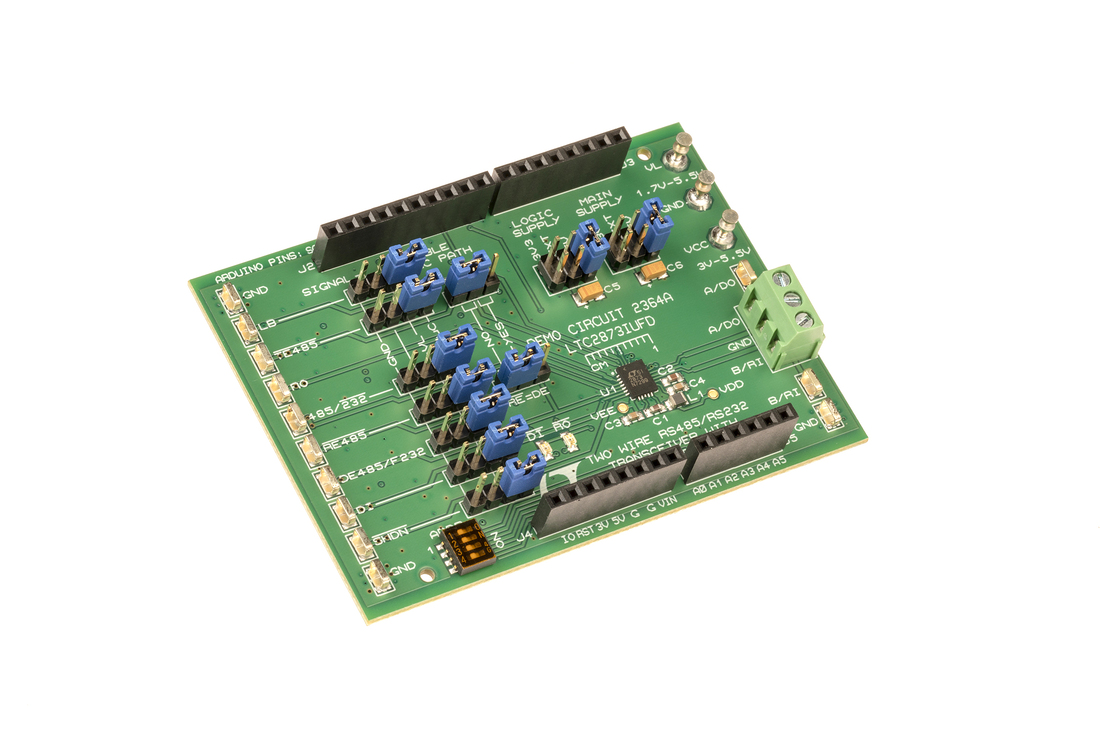

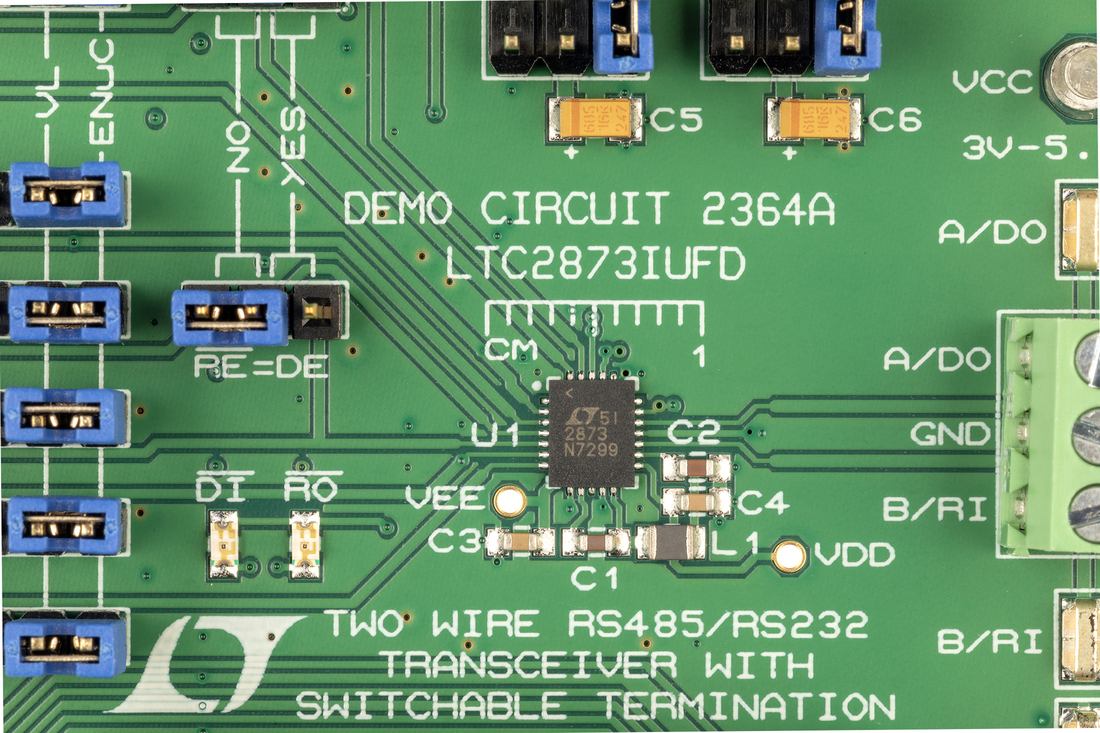

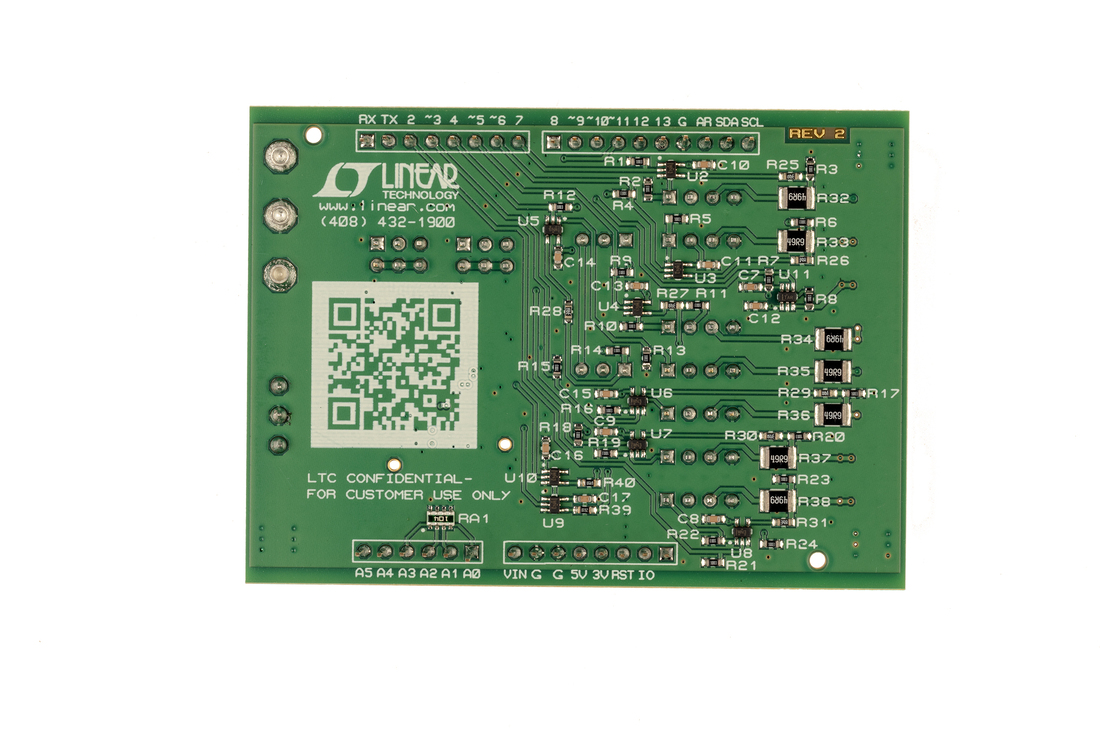

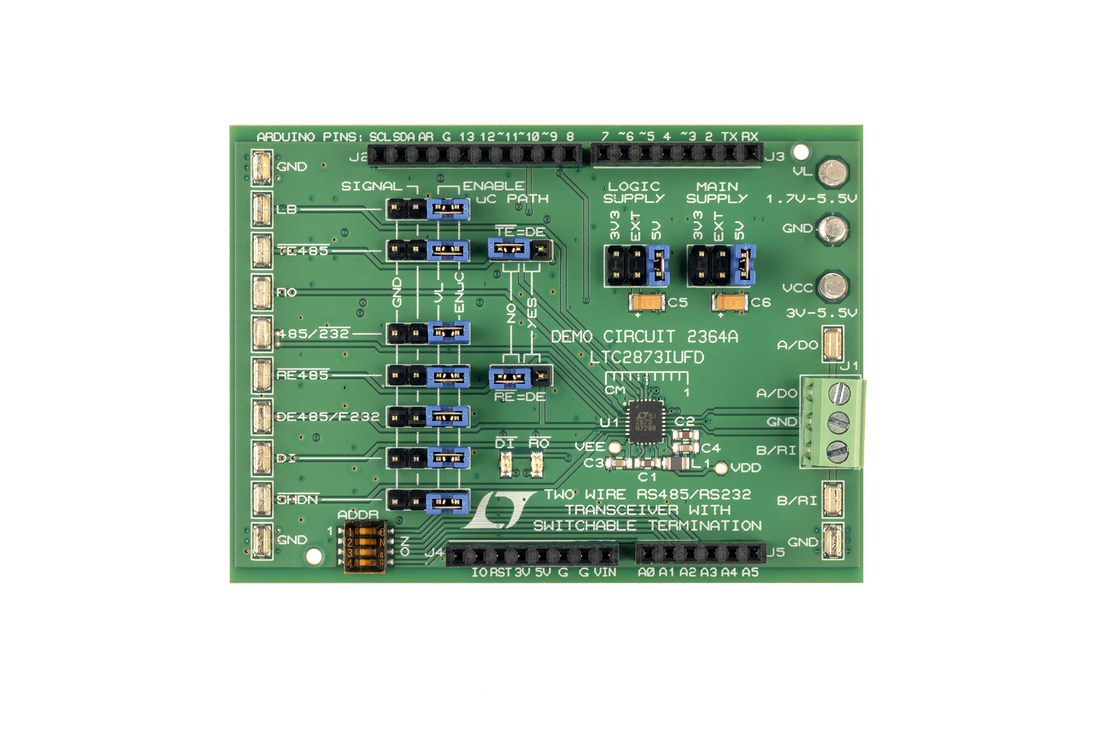

Demonstration circuit 2364A showcases the LTC2873 RS232/RS485 multiprotocol transceiver with integrated termination. The DC2364A operates as a stand-alone evaluation platform or can be used as a shield with a Linduino® or Arduino microcontroller board for quick and versatile evaluation of the LTC2873.
DC2026 is optional (not required).
Markets and Technologies
Applicable Parts
Documentation & Resources
-

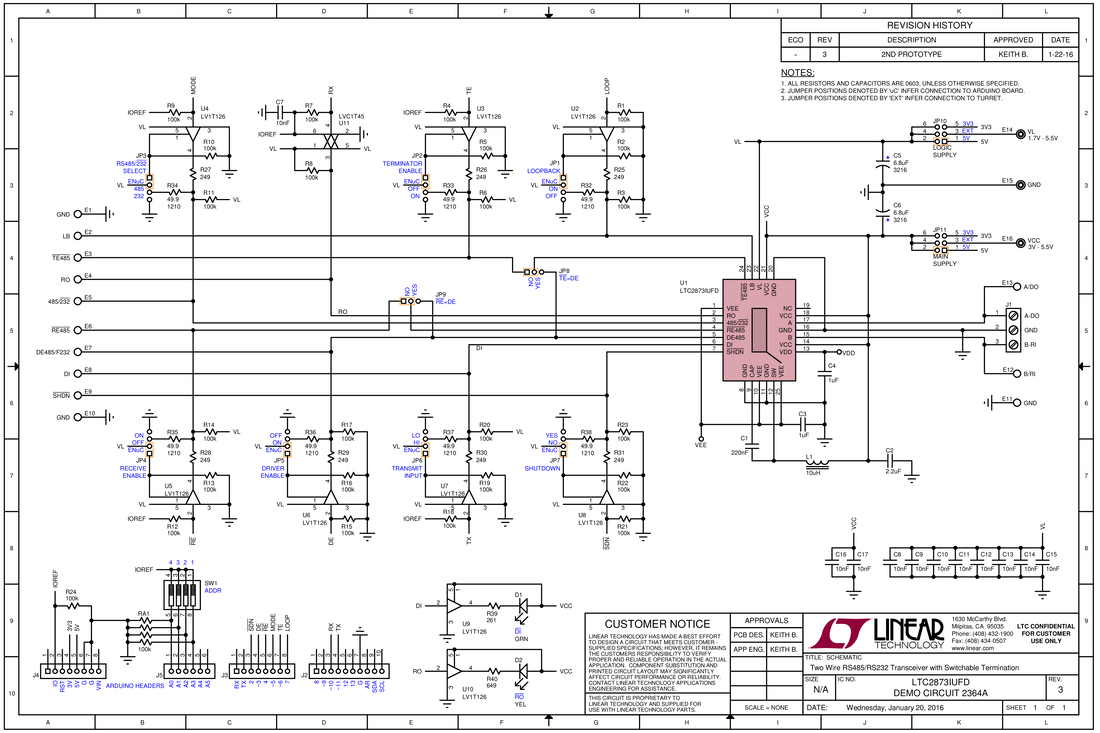

DC2364A - Schematic2/22/2016PDF34K
-
DC2364A - Demo Manual2/22/2016PDF178K
-
DC2364A - Design Files2/22/2016ZIP1M
