Overview

Product Details

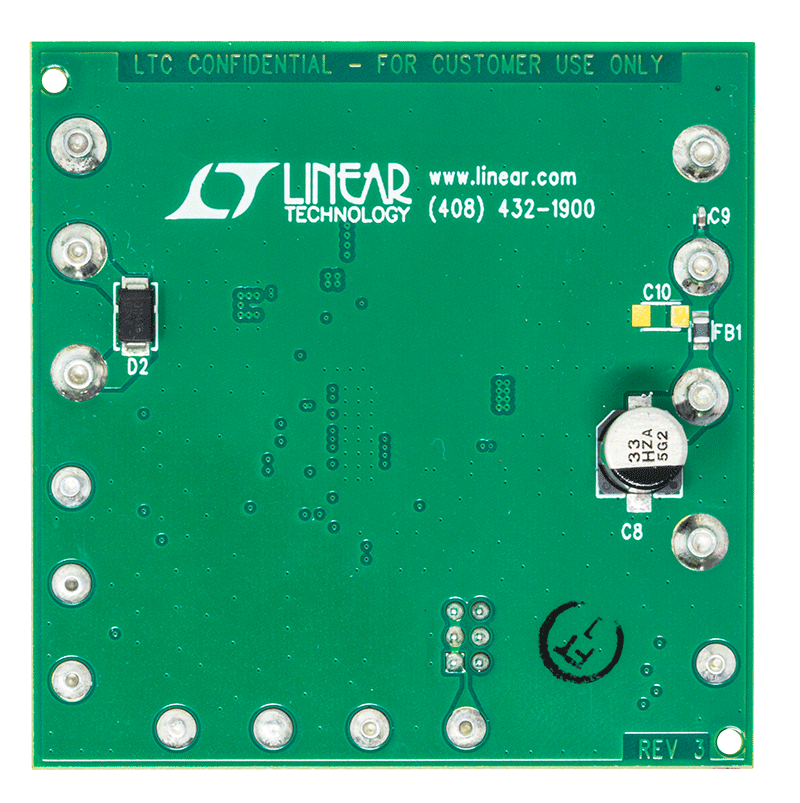

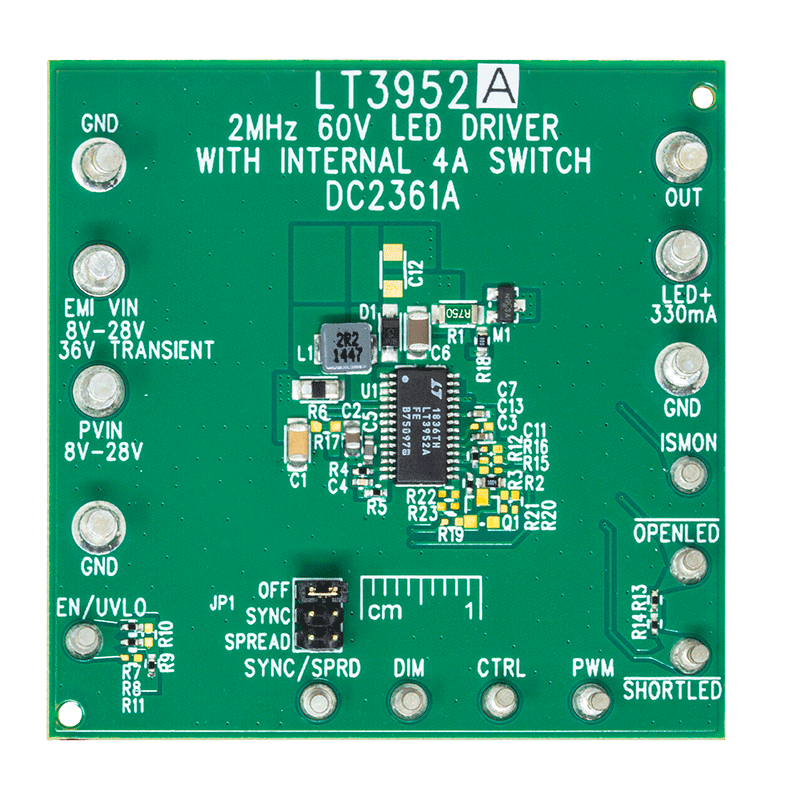

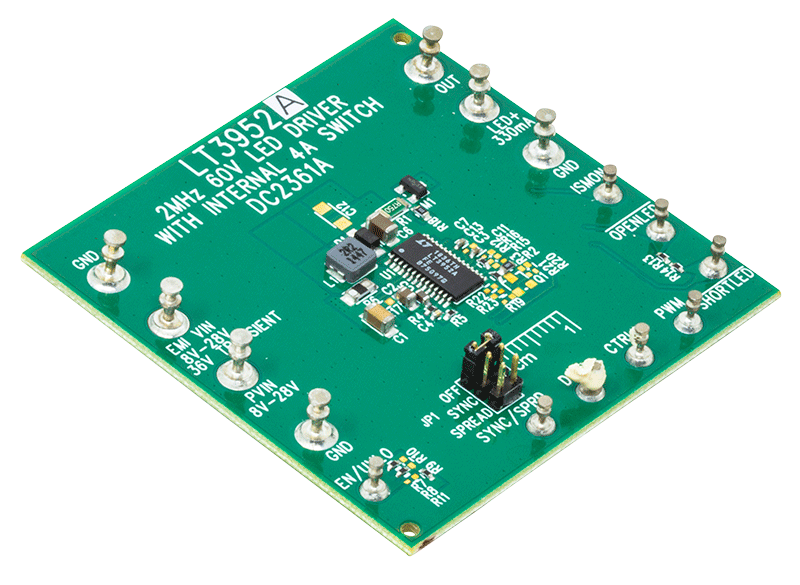

Demonstration circuit DC2361A is a 2MHz 60V LED driver with internal 4A switch featuring the LT3952A monolithic LED driver. It accepts an input voltage from 8V to 28V (with transient to 36V) and boosts to a single string of LEDs up to 40V at 330mA. DC2361A features an integrated 4A switch, constant current and constant voltage output control as well as input current limit and monitoring.
