DC2237A
LTM8064 Demo Board | CVCC Source/Sink Step‑Down μModule Regulator, 7.5V ≤ VIN ≤ 58V, VOUT = 5V @ ±6A
Top
Overview
Product Details

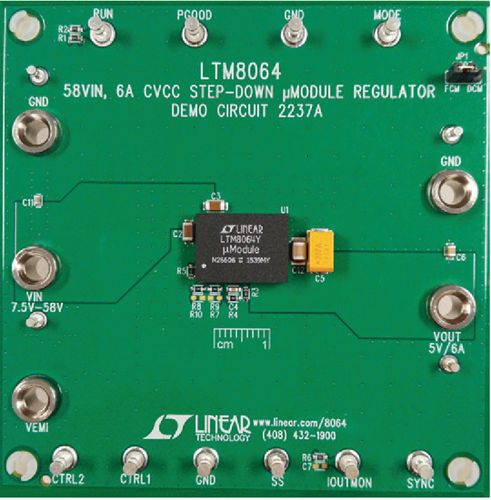

Demonstration circuit 2237A is a 58VIN, 6A, CVCC Step-Down μModule® Regulator featuring the LTM8064. The demo circuit is designed for a 5V output from an input voltage range of 7.5V to 58V. The output can source 7A (typical) or sink 9.1A (typical). The circuit can be operated in either constant voltage mode or constant current mode.
Applicable Parts
Documentation & Resources
-
DC2237A - Schematic4/5/2016PDF32K
-
DC2237A - Demo Manual4/5/2016PDF446K
-
DC2237A - Design Files4/21/2016ZIP1M
