DC2142A
LTC3875EUJ/LTC3874IUFD Demo Board | 4.5V ≤ VIN ≤ 14V; VOUT: 1V @ 120A
Top
Overview
Product Details
Demonstration circuit 2142A is a high efficiency, high density, 4-phase synchronous buck converter with a 4.5V to 14V input range. It can supply 120A maximum load current at a 1.0V output. This demo board incorporates the LTC3875EUJ and LTC3874IUFD master/slave controllers.
Documentation & Resources
-

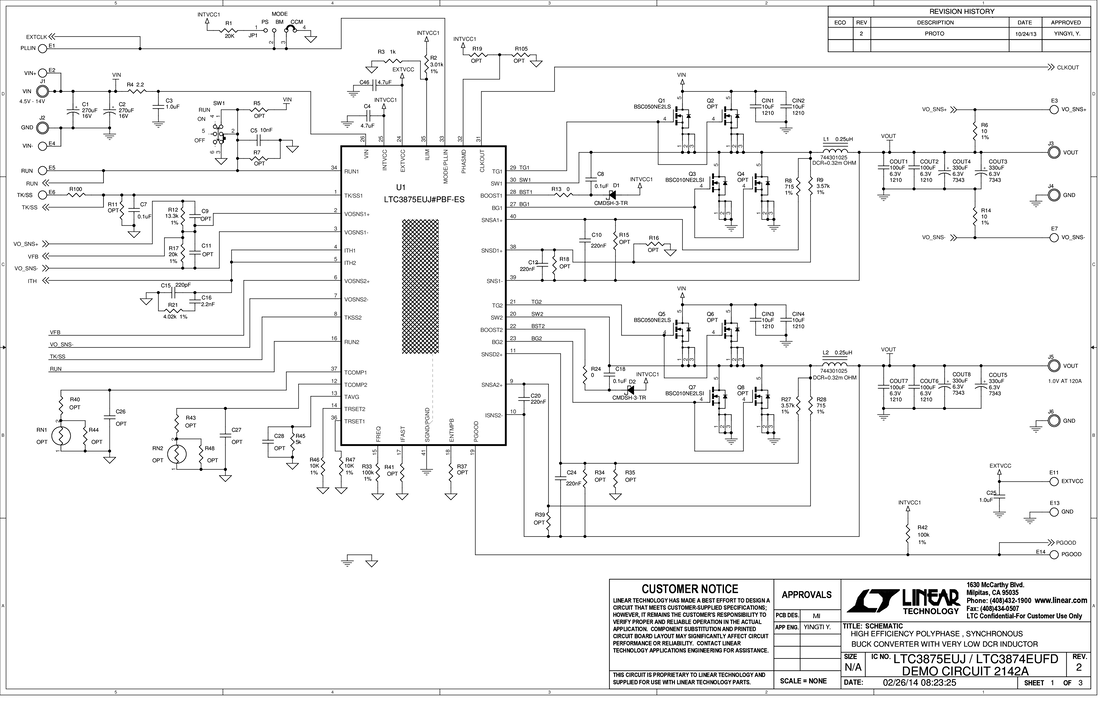

DC2142A - Schematic6/5/2014PDF140K
-
DC2142A - Demo Manual6/5/2014PDF759K
-
DC2142A - Design Files6/5/2014ZIP6M
