DC2076A-B
LTC6430-20 Demo Board | Optimized 300MHz to 1000MHz Differential ADC Driver, IF/RF Amplifier
Top
Overview
Product Details
Demonstration circuit 2076A-B features the LTC6430-20 differential ADC Driver/IF Amplifier. The LTC6430-20 has a power gain of 20.8dB and is part of the LTC6430-YY amplifier series.
Applicable Parts
Documentation & Resources
-

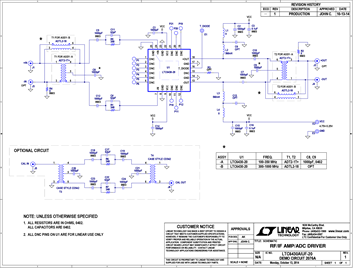

DC2076A - Schematic12/3/2014PDF49K
-
DC2076A-B - Demo Manual12/3/2014PDF548K
-
DC2076A - Design Files12/3/2014ZIP1M
