DC1739A-B
LTC3765EMSE/LTC3766EGN Isolated Demo Board | Forward Converter, 18V ≤ VIN ≤ 72V; VOUT = 12V @ 12.5A
Top
Overview
Product Details
Demonstration circuit 1739A-B is a 150W isolated forward converter with synchronous rectification featuring the LTC3765/LTC3766. This circuit demonstrates a high level of performance, efficiency, and small solution size attainable using these parts in an active-clamp-reset forward converter power supply. It operates at 240kHz and produces a regulated 12V, 12.5A output from an input voltage range of 18V to 72V, making it well suited for telecom, industrial, and other applications.
Documentation & Resources
-

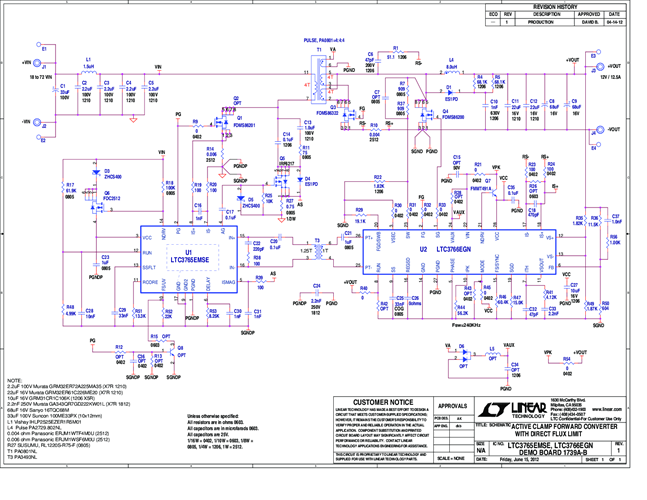

DC1739A-B - Schematic6/27/2012PDF38K
-
DC1739A-B - Demo Manual6/27/2012PDF322K
-
DC1739A-B - Design Files6/27/2012ZIP1M
