Overview
Product Details
Demonstration circuit 1345 is a wide input voltage range, no Rsense step-down dc/dc converter featuring the LTC3879EMSE. Its output voltage is 1.2V with a load rating of 12A and the input voltage range is 4.5V to 34V.
Applicable Parts
Documentation & Resources
-

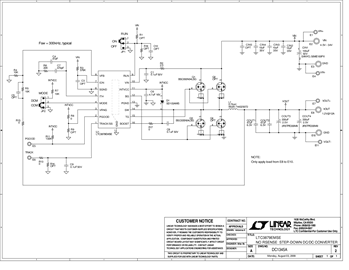

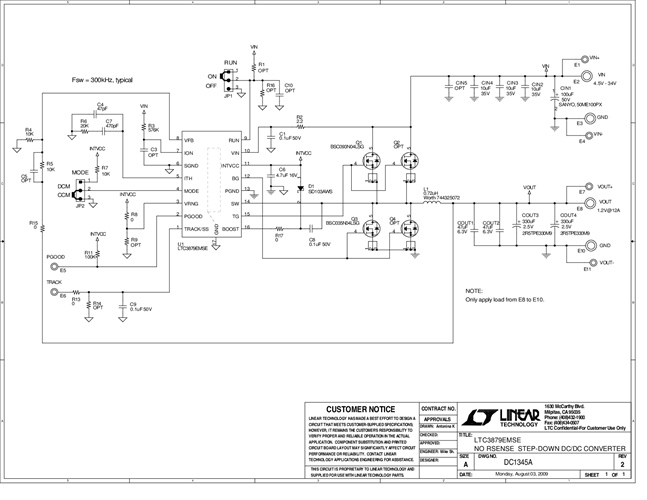

DC1345A - Schematic10/7/2009PDF41K
-
DC1345A - Demo Manual10/7/2009PDF284K
-
DC1345A - Design Files10/7/2009ZIP741K
