Overview

Product Details

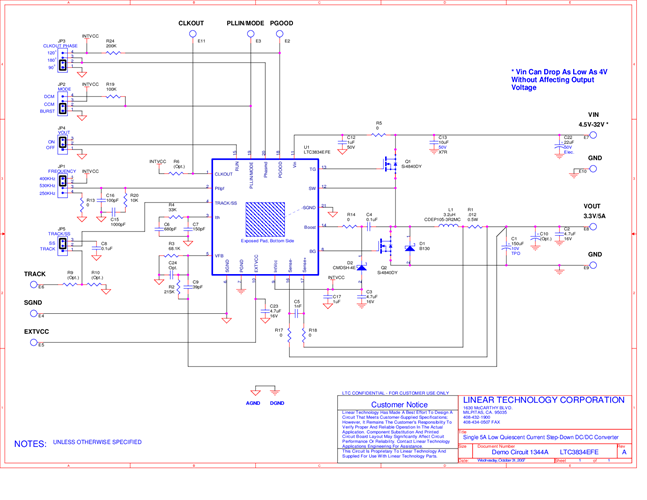

Demonstration circuit 1344A is a low quiescent current step-down DC/DC converter featuring the LTC3834 in a 20-pin TSSOP exposed pad package. The DC1344A is programmed to generate a regulated 3.3V@5A output from a 4.5V to 32V input voltage.
