DC1296A

LTC3556EUFD Demo Board | High Efficiency USB Power Manager with Dual Buck-Buck Boost DC/DC

Top

Overview

Product Details

Product Details

DC1296A: Demo Board for the LTC3556 High Efﬁciency USB Power Manager with Dual Buck and Buck-Boost DC/DCs

Applicable Parts

LTC3556

Documentation & Resources

Demo Board Schematic

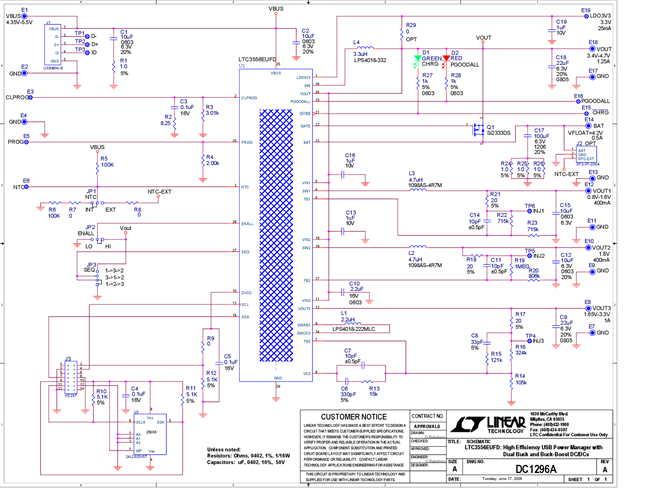

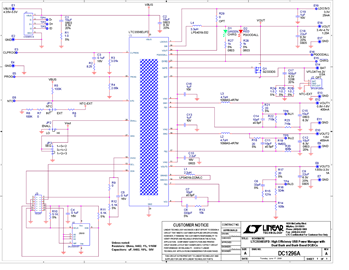

DC1296A - Schematic
9/24/2009

PDF

96K

User Guide

DC1296A - Demo Manual
9/24/2009

PDF

344K

Evaluation Design File

DC1296A - Design File
9/24/2009

ZIP

939K
