DC1121A

LTC3524EUF | Five Output Power Supply and LED Driver for Small to Medium TFT-LCDs

Top

Overview

Product Details

Product Details

DC1121A: Demo Board for LTC3524 - Adjustable TFT Bias Supply with WLED Driver

Applicable Parts

LTC3524

Documentation & Resources

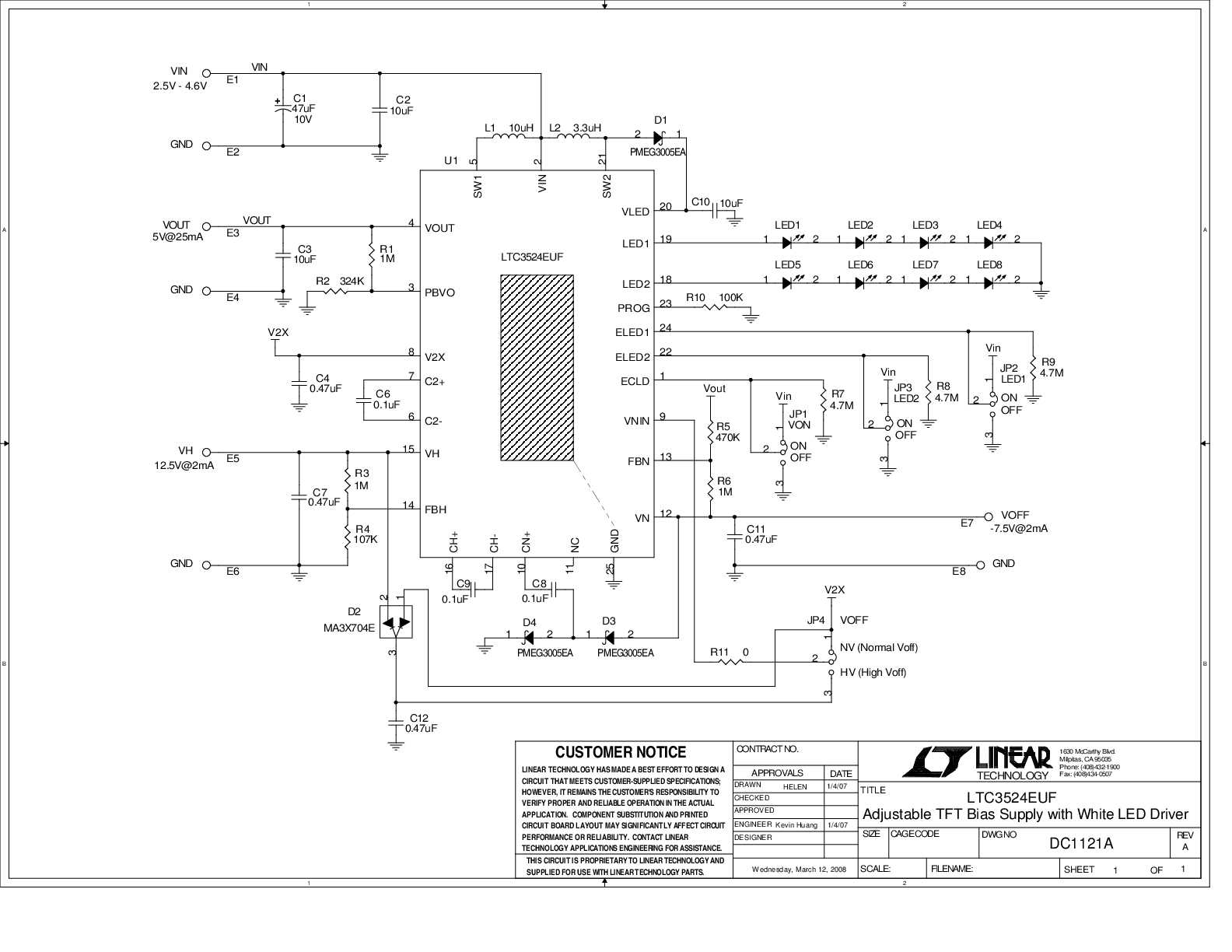

Demo Board Schematic

DC1121A - Schematic
9/24/2009

PDF

33K

User Guide

DC1121A - Demo Manual
9/24/2009

PDF

595K

Evaluation Design File

DC1121A - Design File
9/24/2009

ZIP

629K

Software

LTspice

LTC3524 Demo Circuit - Adjustable TFT Bias Supply with WLED Driver (3.3V to 5V @ 25mA, 12.5V @ 2mA, -7.5V @ 2mA & 2-Strings of 4x LEDs @ 20mA)
