DC1106A
LT3570EUF Demo Board | Buck + Boost + LDO Controller, 4V to 36VIN Buck with VOUT1 = 3.3V@1A, 3.3V to 10VIN Boost with VOUT2 = 12V@275mA, 100mA LDO
Top
Overview
Product Details
Demonstration circuit 1106 is a 1.5A Buck Converter, 1.5A Boost Converter, and LDO Controller featuring the LT3570. The Buck is designed to convert a 4V to 36V source to 3.3V at 1A. The LDO is powered from the output of the buck and converts 3.3V to 2.5V at 100mA. The boost converts a 3.3V to 10V source to 12V at 275mA.
Applicable Parts
Documentation & Resources
-

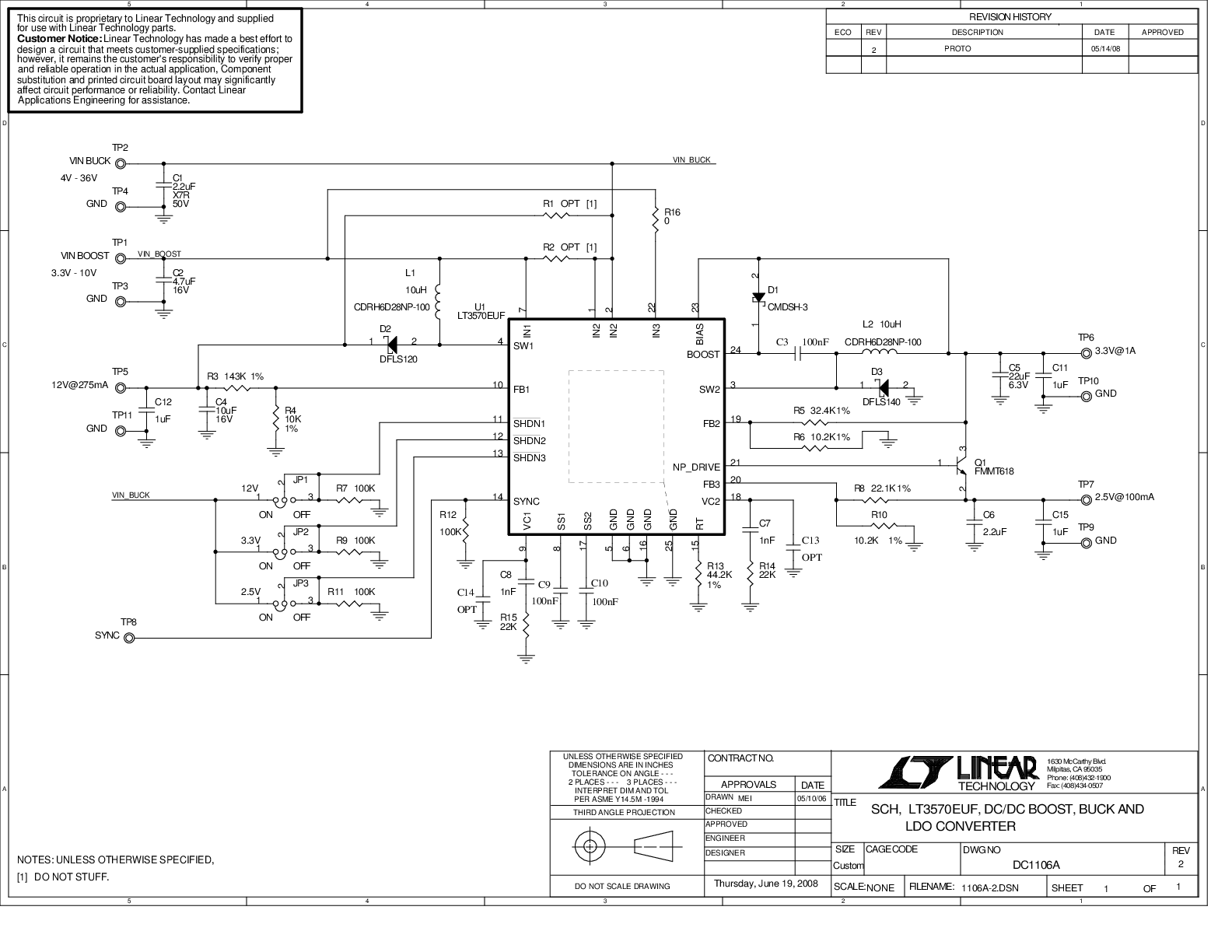

DC1106A - Schematic9/24/2009PDF30K
-
DC1106A - Demo Manual9/24/2009PDF106K
-
DC1106A - Design File9/24/2009ZIP2M
