DC1072B
LTC3561AEDD Demo Board | 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V/Adjustable @ 1A
Top
Overview
Product Details
Demonstration circuit 1072B is a step-down converter using the LTC3561A monolithic synchronous buck regulator. The DC1072B has an input voltage range of 2.5V to 5.5V, and is capable of delivering up to 1A of output current at a jumper-selectable output voltage of 1.2V, 1.5V, 1.8V or user-defined.
Applicable Parts
Documentation & Resources
-

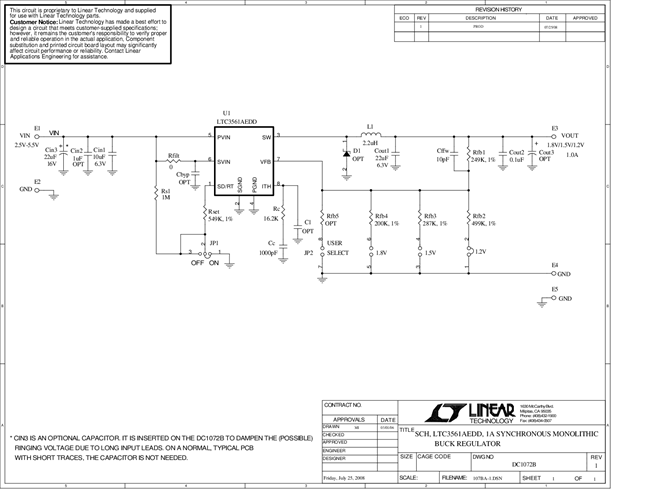

DC1072B - Schematic9/24/2009PDF28K
-
DC1072B - Demo Manual9/24/2009PDF404K
-
DC1072B - Design File9/24/2009ZIP1M
