EVAL-BF-EZEXT-1

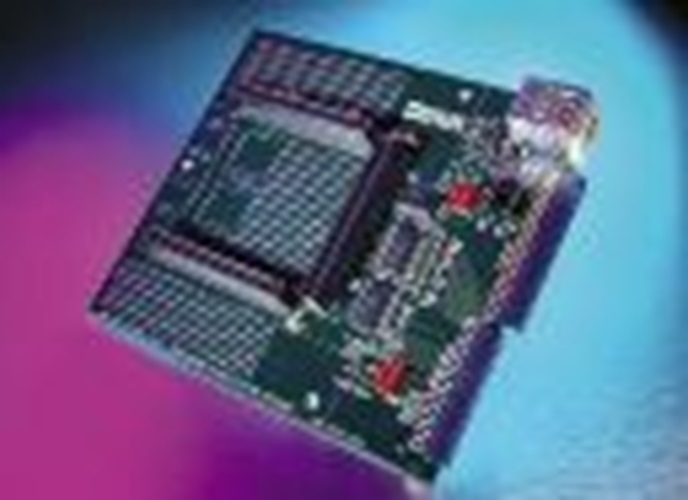

The Blackfin FPGA extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the Blackfin evaluation system by providing a Xilinx FPGA with external memory, IDC connectors for off-board connections, and a small breadboard area. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

Top

Features and Benefits

Expansion Interface for connecting to ADSP-BF533 EZ-KIT Lite and ADSP-BF561 EZ-KIT Lite
External LCD display interface
Analog Devices High Speed Converter (HSC) interface for connecting to HSC Evaluation Boards (ADC, mixed signal, and DAC)
RJ45 connector for providing SPI signals for configuring converter registers
Dimensions: 5” (H) x 5” (W)

Product Details

The Blackfin EZ-Extender daughter board allows developers to connect the Parallel Peripheral Interface (PPI) on the ADSP-BF533 EZ-KIT Lite and the ADSP-BF561 EZ-KIT Lite to a number of Analog Devices High Speed Converter (HSC) evaluation boards (ADC, mix signal, and DAC), the OV6630 OmniVision camera evaluation board, and an external LCD display. The ADSP-BF533 EZ-Extender 1 also provides developers breadboard area and the ability to access all of the pins on the ADSP-BF533 and ADSP-BF561 EZ-KIT Lite’s expansion interface.

Applications and information about the use and connection of the various interfaces on the Blackfin EZ-Extender are available from Analog Devices.

EZ-Extender to DSP Supported HSC Evaluation Boards

Part Number:
ADZS-BF-EZEXT-1

Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

Package Contents

Blackfin EZ-Extender
(plugs directly onto the expansion interface of the ADSP-BF533/BF561 EZ-KIT Lite board)

System Requirements

Windows^® 2000 SP4, Windows XP SP2, Windows Vista™ or (from update 7) Windows 7 Business/ Enterprise/ Ultimate editions
Intel Pentium^® processor (x86 compatible), 1 GHz or faster
512 MB RAM and 2 GB available hard disk space
VisualDSP++ 5.0
