Overview
Features and Benefits
- Easy Evaluation of ADM33051E
- Power/Ground Through Header and Screw Terminal Connections
- Screw Terminal Block for CAN Signals
- Test Points for Measuring All Signals
- Resistors and TVS Footprints for External Protection Devices
- Proven PCB Layout
- Fully Assembled and Tested
Product Details

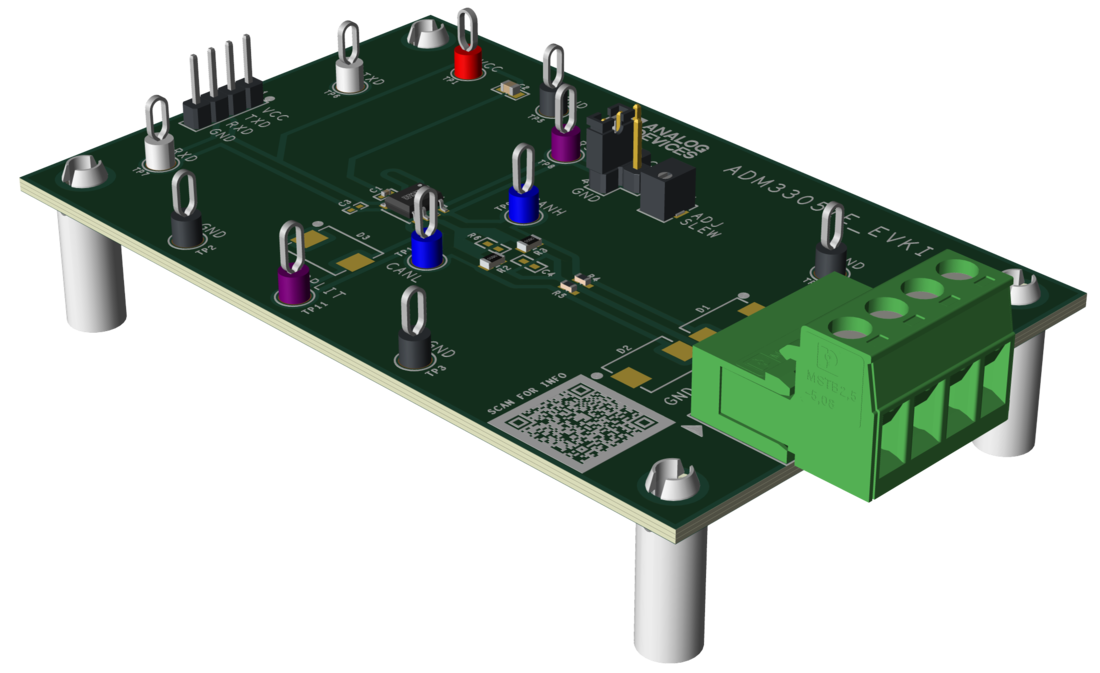

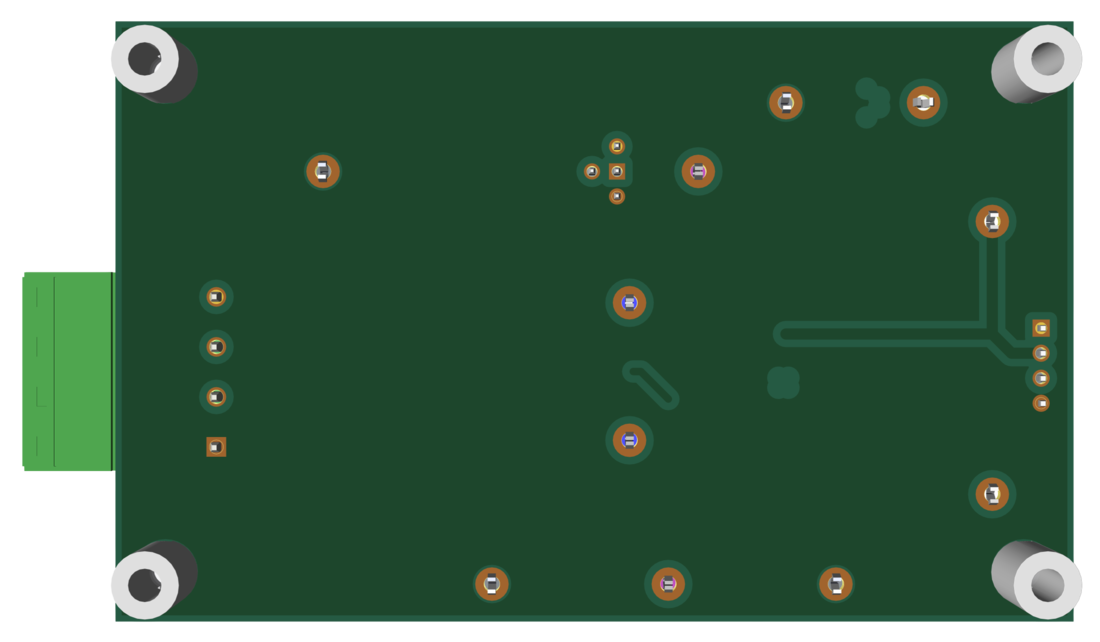

The ADM33051E evaluation kit (EV kit) is a fully assembled and tested board that demonstrates the functionality of the ADM33051E. The ADM33051E is a CAN FD transceiver with ±60V fault protection, ±20kV ESD human body model (HBM) for interface pins, variable slew rate, and ±25V extended common-mode range.
Applicable Parts
Getting Started
Required Equipment
- ADM33051E EV kit
- 3.3V/500mA DC power supply
- Signal/function generator that can generate a 1MHz square wave signal
- Oscilloscope
Documentation & Resources
-
ADM33051EEVKIT User Guide: Evaluates: ADM33051E (Rev. 0)5/22/2026PDF727 KB
