EVAL-ADIN2299

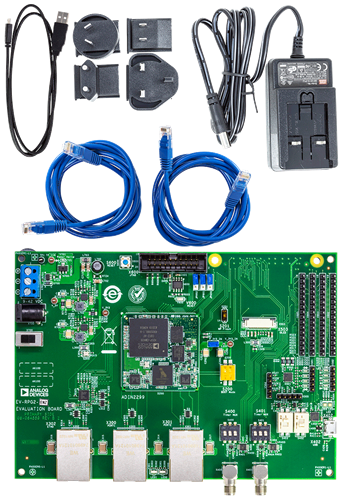

ADIN2299 Evaluation Kit
Top
Overview
Product Details
This user guide describes how to set up the provided hardware of the evaluation kit and establish the link type specific host connection and connect the evaluation board to an industrial Ethernet network.
The evaluation kits provide an end to end evaluation of the communication path from the host processor to the programmable logic controller (PLC) or PC-based tool.
The evaluation kits can completely verify the communication path between the host processor and a PLC before integrating the network interface into the end field device.
EVALUATION KIT OPTIONS
- EtherCAT: EV-RPG2-ECZ
- EtherNet/IP: EV-RPG2-ENZ
- Profinet: EV-RPG2-PNZ
- Modbus: EV-RPG2-MBZ
Markets and Technologies
Applicable Parts
Documentation & Resources
-
ADIN2299 Evaluation Kit Modules and Bill of Materials8/15/2023ZIP2 M
-
ADIN2299 Modules and Bill of Materials8/15/2023ZIP33 M
