DS26303 Short-Haul Line Interface Unit vs. IDT82V2048

Abstract

Introduction

This document provides an explanation of the differences between the DS26303 and the IDT82V2048 with emphasis on the information required to use the DS26303 in an existing IDT82V2048 application. The DS26303 is an 8-channel short-haul line interface unit (LIU) that supports E1/T1/J1 from a single 3.3V power supply. This device supports the functions of the IDT82V2048 without software modification, while providing additional features. The DS26303 can be used in an existing IDT82V2048 application without changing PCB layout, but by simply replacing external component values for the desired application.

Descriptions of the feature differences are provided in three separate sections. Table 1 provides a list of DS26303 features not present in the IDT82V2048. Table 2 gives a list of IDT82V2048 features not present in the DS26303. Table 3 provides a list of features present in both the DS26303 and IDT82V2048 that are not implemented the same on both devices.

The differences between registers of the DS26303 and IDT82V2048 are described in Tables 6 through 10, along with the additional functionality provided by additional register banks of the DS26303. Figure 1 and Table 11 provide the minor changes in component values required when using the DS26303 in an existing IDT82V2048 application.

Table 1. DS26303 Features Not Present in IDT82V2048
DS26303	IDT82V2048
Programmable option to clear interrupt status on write or read. Clear on read is default.	Not supported.
Individual channel control for jitter attenuator: Enable/disable FIFO depth FIFO limit trip	All channels have global control.
Internal software-selectable transmit and receive-side termination for 100Ω T1 twisted-pair, 110Ω J1 twisted-pair, 120Ω E1 twisted-pair, and 75Ω E1 coaxial applications.	Not supported.
In HPS mode, the transmitter output and the internal impedance of the receiver can be turned off with only the OE pin.	Requires that both receivers use the same front-end termination.
Built in BERT tester for diagnostics.	Not supported.
Individual channel control for: Short-circuit protection AIS enable on LOS RCLK inversion TCLK inversion	All channels have global control.
Individual channel-line violation detection.	Not supported.
Flexible MCLK See Table 4 for available input frequencies.	Not supported.
Programmable TECLK output pin (1.544MHz or 2.048MHz)	Not supported.
Programmable CLKA output pin See Table 5 for available output frequencies.	Not supported.
Flexible interrupt pin	Not supported.

Table 2. IDT82V2048 Features Not Present in DS26303
DS26303	IDT82V2048
Uses single optimal value.	Capability to select the jitter attenuator bandwidth.
Not provided.	Inband loopack (loopup and loopdown codes).
MLCK Pin Functionality The DS26303 and IDT82V2048 both require MCLK to for data with clock recovery as well as AIS detection. The MCLK pin of the IDT82V2048 provides additional functionality not present in the DS26303. IDT82V2048 MCLK held high. The IDT82V2048 slices the incoming bipolar line signal into RZ pulse (data-recovery mode). IDT82V2048 MCLK held low. All the receivers are powered down, and the output pins RCLKn, RDPn, and RDNn are switched to high impedance. Note that wait state generation through RDY/ACK is not available if MCLK is not provided.

Table 3. Feature Differences Between DS26303 and IDT82V2048
DS26303	IDT82V2048
3.3V LIU power only, 5V not provided.	5V LIU power.
Non-mux Intel^® write address to WRB rising-edge setup time is 17ns.	Non-mux Intel write address to WRB rising-edge setup time is 6ns.
Expects non-mux Intel read address to be valid when RDB is active.	Non-mux Intel read address to RDB rising-edge setup time is 6ns. This might be an error in data sheet because data is out before this setup time.
Inactive RDY to tri-state delay time 12ns (max).	Inactive RDY to tri-state delay time 3ns (max).
Clears the interrupt pin when reading or writing the interrupt status.	Clear interrupt pin by reading the corresponding status register.
Jitter attenuator FIFO depths of 32 bits or 128 bits.	Jitter attenuator FIFO depths of 32 bits or 64 bits.
Individual channel control for jitter attenuator: Enable/disable FIFO depth FIFO limit trip	All channels have global control.

Table 4. MCLK Selections for the DS26303
PLLE	MPS1, MPS0	MCLK MHz (±50ppm)	FREQS	T1 or E1 Mode
0	xx	1.544	x	T1
0	xx	2.048	x	E1
1	00	1.544	1	T1/J1 or E1
1	01	3.088	1	T1/J1 or E1
1	10	6.176	1	T1/J1 or E1
1	11	12.352	1	T1/J1 or E1
1	00	2.048	0	T1/J1 or E1
1	01	4.096	0	T1/J1 or E1
1	10	8.192	0	T1/J1 or E1
1	11	16.384	0	T1/J1 or E1

Table 5. DS26303 Clock A Selections
CLKA3 to CLKA0	MCLK (Hz)
0000	2.048M
0001	4.096M
0010	8.192M
0011	16.384M
0100	1.544M
0101	3.088M
0110	6.176M
0111	12.352M
1000	1.536M
1001	3.072M
1010	6.144M
1011	12.288M
1100	32k
1101	64k
1110	128k
1111	256k

Register Considerations

The DS26303 contains four major register banks.

Primary Registers (DS26303 and IDT82V2048)
Secondary Registers (DS26303 and IDT82V2048)
Individual LIU Registers (DS26303 only)
BERT Registers (DS26303 only)

To take advantage of the DS26303's additional features and flexibility, additional code must be added to any original source code written for an IDT82V2048 application. The address pointer control register (ADDP), address 1Fh, is used as a pointer to access the desired register bank. Table 6 provides a list of the DS26303 register banks and the required ADDP value required for access to the desired register bank.

Table 6. Address Pointer Bank Selection
ADDP7 to ADDP0 (Hex)	Bank Name	DS26303	IDT82V2048
00	Primary Bank	Yes	Yes
AA	Secondary Bank	Yes	Yes
01	Individual LIU Bank	Yes	No
02	BERT Bank	Yes	No

The Primary Register Bank of the DS26303 is the same as the IDT82V2048. If the DS26303 is used in the place of an existing IDT82V2048 and only the Primary Register Bank is used, the application software does not require modification. Table 7 provides an overview of the Primary Registers.

Table 7. Primary Registers DS26303 and IDT82V2048
Address (Hex)	DS26303 and IDT82V2048
00–15	Primary Registers
16–1E	Reserved
1F	ADDP

While both the DS26303 and IDT82V2048 provide a Secondary Register Bank, the registers and functionality is not the same for all the registers. Table 8 provides a list of the registers contained in the Secondary Register Bank and their function for the DS26303 and the IDT82V2048.

Two additional register banks are contained in the DS26303: the Individual LIU Register Bank and the BERT Register Bank. Table 9 presents a list of the registers contained in the Individual LIU Register Bank and Table 10 has a list of the registers contained in the BERT Register Bank To take advantage of the DS26303's additional features and flexibility, additional code must be added to any original source code written for an IDT82V2048 application.

Table 8. Secondary Register Bank of the DS26303
Address (Hex)	Register Name	DS26303	IDT82V2048
00	Single-Rail Mode Select	Yes	Yes
01	Line-Code Selection	Yes	Yes
02	Clock-Recovery Enable	No	Yes
03	Receiver Power-Down Enable	Yes	Yes
04	Transmitter Power-Down Enable	Yes	Yes
05	Excessive Zero-Detect Enable	Yes	Yes
06	Code-Violation-Detect Enable Bar	Yes	Yes
07	Receive Equalizer Enable	No	Yes
08	Inband Loopback (LB) Configuration	No	Yes
09	Inband LB Activation Code	No	Yes
0A	Inband LB Deactivation Code	No	Yes
0B	Inband LB Receive Status	No	Yes
0C	Inband LB Interrupt Mask	No	Yes
0D	Inband LB Interrupt Status	No	Yes
0E	Inband LB Activation/Deactivation Code Generator	No	Yes
1F	Set to AAh for access to Secondary Register Bank	Yes	Yes

Table 9. Individual LIU Register Bank of the DS26303
Address (Hex)	Register Name
00	Individual JA Enable
01	Individual JA Position Select
02	Individual JA FIFO Depth Select
03	Individual JA FIFO Limit Trip
04	Individual Short-Circuit Protection Disable
05	Individual AIS Select
06	Master-Clock Select
07	Global-Management Register
08–0F	Reserved
10	Bit-Error-Rate Tester Control Register
12	Line-Violation Detect Status
13	Receive-Clock Invert
14	Transmit-Clock Invert
15	Clock-Control Register
16	RCLK Disable Upon LOS Register
1E	Global-Interrupt Status Control
1F	Set to 01h for access to Individual LIU Register Bank

Table 10. BERT Register Bank of the DS26303
Address (Hex)	Register Name
00	BERT Control Register
01	Reserved
02	BERT Pattern Configuration 1
03	BERT Pattern Configuration 2
04	BERT Seed/Pattern 1
05	BERT Seed/Pattern 2
06	BERT Seed/Pattern 3
07	BERT Seed/Pattern 4
08	Transmit-Error Insertion Control
09–0A	Reserved
0C	BERT Status Register
0D	Reserved
0E	BERT Status Register Latched
10	BERT Status Register Interrupt Enable
11–13	Reserved
14	Receive Bit-Error Count Register 1
15	Receive Bit-Error Count Register 2
16	Receive Bit-Error Count Register 3
17	Receive Bit-Error Count Register 4
18	Receive Bit-Count Register 1
19	Receive Bit-Count Register 2
1A	Receive Bit-Count Register 3
1B	Receive Bit-Count Register 4
1C–1E	Reserved
1F	Set to 02h for access to BERT Register Bank

Hardware Considerations

The DS26303 can replace the IDT82V2048 in an existing application without PCB layout changes. All that is needed is to replace external component values for the desired application. Figure 1 provides the recommended DS26303 network termination circuit, and Table 11 provides the component values required for proper termination of the DS26303.

Transmitter

The IDT82V2048 requires transmit-side resistors in series with TTIP and TRING outputs. IDT82V2048 recommends that these resistors should be 0Ω (T1 3.3V mode), 9.5Ω (E1 75Ω coaxial), or 9.1Ω (E1 120Ω twisted pair). The DS26303 does not require the resistors, so any present should be 0Ω in all modes.

Receiver

On the receive side, the IDT82V2048 requires termination resistance of 12.4Ω (T1 3.3V mode), 9.31Ω (E1 75Ω coaxial), or 15Ω (E1 120Ω twisted pair). The DS26303 requires 15Ω termination resistors for all modes when using external impedance mode. If the DS26303's software-selectable impedance-matching mode is used, these resistors are not required. The IDT82V2048 requires 1kΩ resistors in series with the RTIP and RRING pins. If software termination/impedance matching is desired, these 1kΩ resistors should be replaced with 0Ω resistors.

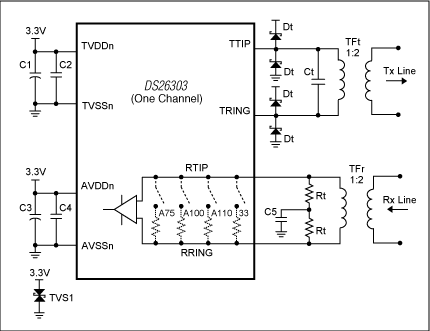

Figure 1. LIU front-end.

Table 11. LIU Front-End Values
Mode	Component	75Ω Coaxial	120Ω Twisted Pair	100Ω/110Ω Twisted Pair
Tx Capacitance	Ct	560pF (typ). Adjust for board parasitics for optimal return loss.
Tx Protection	Dt	International Rectifier: 11DQ04 or 10BQ060 Motorola: MBR0540T1
Rx Transformer 1:2	TFr	Pulse: T1124 (0°C to +70°C)
Tx Transformer 1:2	TFt	Pulse: T1114 (-40°C to +85°C)
Tx Decoupling (ATVDD)	C1	Common decoupling for all eight channels is 68µF.
Tx Decoupling (ATVDD)	C2	Recommended decoupling per channel is 0.1µF.
Rx Decoupling (AVDDn)	C3	Common decoupling for all eight channels is 68µF.
Rx Decoupling (AVDDn)	C4	Common decoupling for all eight channels is 0.1µF.
Rx Termination	C5	When in external impedance mode, Rx capacitance for all eight channels is 0.1µF. Do not populate if using internal impedance mode.
Rx Termination	Rt	When in external impedance mode, the two resistors for all modes shall be 15.0Ω ±1%. Do not populate if using internal impedance mode.
Voltage Protection	TVS1	SGS-Thomson: SMLVT 3V3 (3.3V transient suppressor)
