AN-2621: Generating MIPI C-PHY and D-PHY Compatible Waveforms with ADATE334, a 2.3GHz High-Speed Dual Integrated DCL

Download PDF

Introduction

The ADATE334 is a complete dual-channel automatic test equipment (ATE) solution that performs the pin electronics functions of driver, comparator, and active load (DCL), and four-quadrant per pin parametric measurement unit (PPMU). Dedicated 16-bit DACs with on-chip calibration registers provide all necessary DC levels for operation of the device.

The high voltage driver features three active states: high (VIH), low (VIL), and terminate mode (VIT), as well as a high impedance inhibit state (HiZ). The inhibit state, in conjunction with the integrated dynamic clamps, facilitates significant attenuation of transmission line reflections when the driver is not actively terminating the line.

The open circuit drive capability is −1.5V to +7.0V to accommodate a wide range of ATE and instrumentation applications. The low voltage driver, working in conjunction with the high voltage driver, can provide 25mVpp to 600mVpp signals at up to 4.6Gbps in a 50Ω environment. Refer to the ADATE334 data sheet and functional block diagram for more information.

The MIPI Alliance provides a set of specialized physical layers with both complementary and unique features. MIPI C-PHY and MIPI D-PHY are mainly used for camera, display, and mobile applications. The ADATE334 high voltage and low voltage drivers can be used in combination to generate multilevel waveforms that are MIPI C-PHY and D-PHY compatible.

Figure 1. ADATE334 functional block diagram

ADATE334 HIGH-SPEED MUX AND DRIVER CONTROLS

The ADATE334 utilizes internal high-speed multiplexers to map the high-speed inputs (DAT0, RCV0, DAT1, and RCV1) to the internal high voltage or low voltage driver control signals. The block diagram in Figure 1 shows the arrangement of the internal multiplexers and output drivers. The internal multiplexers (HV_DAT_x, HV_RCV_x, LV_VSWA_x, and LV_VSWB_x) generate the internal high-speed high voltage driver control signals (SELECTED_DAT_x and SELECTED_RCV_x) and low voltage driver control signals (SELECTED_VSWA_x and SELECTED_VSWB_x). Table 1 shows how the high voltage driver control signals determine the state of the high voltage driver output and Table 2 shows how the low voltage driver control signals determine the state of the low voltage driver output. The ADATE334 output is the sum of the high voltage driver and low voltage driver outputs

Table 1. Internal High Voltage Driver Control Truth Table
SELECTED_RCV_X SELECTED_DAT_X High Voltage Driver Output
0 0 VIL
0 1 VIH
1 0 VIT
1 1 VIT
Table 2. Internal Low Voltage Driver Control Truth Table
SELECTED_VSWB_X SELECTED_VSWA_X Low Voltage Driver Output
0 0 – ½ VSWA – ½ VSWB
0 1 −½ VSWB
1 0 −½ VSWA
1 1 −0(OFF)

The internal multiplexer selection is controlled via Register 0x05 and is described in Table 3 to Table 6. Utilizing these internal multiplexers, different combinations of high voltage and low voltage driver outputs can be created using the high-speed inputs.

Figure 2. ADATE334 high-speed multiplexer to driver input selection diagram and example C-PHY outputs

High-speed Multiplexers to Driver Input Selection

Table 3. Map HV_DAT_X to High Voltage Driver Input
HV_DAT_0[2:0] Address 0x05[15:13] SELECTED_DAT_0 HV_DAT_1[2:0] Address 0x05[15:13] SELECTED_DAT_1
000 DAT0 000 DAT1
001 DAT1 001 DAT0
010 DAT1 010 DAT0
011 Reserved 011 Reserved
100 Reserved 100 Reserved
101 Reserved 101 Reserved
110 Reserved 110 Reserved
111 High 111 High
Table 4. Map HV_RCV_X to High Voltage Driver Input
HV_RCV_0[1:0] Address 0x05[12:11] SELECTED_RCV_0 HV_RCV_1[1:0] Address 0x05[12:11] SELECTED_RCV_1
00 RCV0 00 RCV1
01 RCV1 01 RCV0
10 RCV1 10 RCV0
11 Low 11 Low
Table 5. Map LV_VSWA_X to Low Voltage Driver Input
LV_VSWA_0[1:0] Address 0x05[10:9] SELECTED_VSWA_0 LV_VSWA_1[1:0] Address 0x05[10:9] SELECTED_VSWA_1
00 DAT0 00 DAT1
01 DAT1 01 DAT0
10 Reserved 10 Reserved
11 High 11 High
Table 6. Map LV_VSWB_X to Low Voltage Driver Input
LV_VSWB_0[2:0] Address 0x05[8:6] SELECTED_VSWB_0 LV_VSWB_1[2:0] Address 0x05[8:6] SELECTED_VSWB_1
000 DAT0 000 DAT1
001 DAT1 001 DAT0
010 RCV0 010 RCV1
011 RCV1 011 RCV0
100 Reserved 100 Reserved
101 Reserved 101 Reserved
110 Reserved 110 Reserved
111 High 111 High

MIPI Alliance

MIPI Alliance supports a wide variety of application protocols requiring high performance, low-power serial interfaces. The MIPI C-PHY and D-PHY specifications are primarily used for the connection of cameras and display applications to a host processor. The PHY functionality includes a high-speed (HS) mode for fast-data traffic and a low-power (LP) mode for control purposes. C-PHY utilizes five signaling levels (LP-LOW, LP-HIGH, HS-LOW, HS-MID, and HS-HIGH), which can be combined across three lanes to generate the states described in Table 7. D-PHY utilizes four signaling levels (LP-LOW, LP-HIGH, HS-LOW, and HS-HIGH), which can combined across two lanes to generate the states described in Table 8.

Table 7. C-PHY Lane State Descriptions
State Code Line Voltage Levels High-Speed Low-Power
A Line B Line C Line Burst Mode Control Mode Escape Mode
HS_+X HS-HIGH HS-LOW HS-MID +x state N/A1, 2 N/A1, 2
HS_–X HS-LOW HS-HIGH HS-MID –x state N/A1, 2 N/A1, 2
HS_+Y HS-MID HS-HIGH HS-LOW +y state N/A1, 2 N/A1, 2
HS_–Y HS-MID HS-LOW HS-HIGH –y state N/A1, 2 N/A1, 2
HS_+Z HS-LOW HS-MID HS-HIGH +z state N/A1, 2 N/A1, 2
HS_–Z HS-HIGH HS-MID HS-LOW –z state N/A1, 2 N/A1, 2
LP-000 LP-LOW LP-LOW LP-LOW N/A1 Bridge Space
LP-001 LP-LOW LP-LOW LP-HIGH N/A1 HS-Rqst Mark-0
LP-100 LP-HIGH LP-LOW LP-LOW N/A1 LP-Rqst Mark-1
LP-111 LP-HIGH LP-HIGH LP-HIGH N/A1 Stop N/A1, 3

1 N/A means not applicable.

2 During high-speed transmission, the low-power receivers observe LP-000 on the lines.

3 If LP-111 occurs during escape mode, the lane returns to stop state (control mode LP-111).

Table 8. D-PHY Lane State Descriptions
State Code Line Voltage Levels High-Speed Low-Power
Dp-Line Dn-Line Burst Mode Control Mode Escape Mode
HS-0 HS-LOW HS-HIGH Differential-0 N/A1, 2 N/A1, 2
HS-1 HS-HIGH HS-LOW Differential-1 N/A1, 2 N/A1, 2
LP-00 LP-LOW LP-LOW N/A1 Bridge Space
LP-01 LP-LOW LP-HIGH N/A1 HS-Rqst Mark-0
LP-10 LP-HIGH LP-LOW N/A1 LP-Rqst Mark-1
LP-11 LP-HIGH LP-HIGH N/A1 Stop N/A1, 3

1 N/A means not applicable.

2 During high-speed transmission, the low-power receivers observe LP-00 on the lines.

3 If LP-11 occurs during escape mode, the lane returns to stop state (control mode LP-11).

C-PHY Driver Example

The ADATE334 can be used to generate the five signaling levels utilized by C-PHY: LP-LOW, LP-HIGH, HS-LOW, HS-MID, and HS-HIGH. The HS signals have a smaller voltage swing at higher speeds and can be generated with the low voltage driver. The LP signals have a larger voltage swing at lower speeds and can be generated with the high voltage driver.

Figure 3 shows the C-PHY signaling levels and an example of corresponding ADATE334 output voltage levels. The internal high-speed multiplexers can be utilized to generate these output states with the high-speed inputs (DAT0, RCV0, DAT1, and RCV1). Table 9 shows how to configure the relevant ADATE334 registers to achieve this example configuration. Table 11 shows the corresponding truth table, mapping the high-speed inputs states to specific high voltage driver and low voltage driver output levels. Under this configuration, RCV0 and DAT0 control the high voltage driver, and DAT1b and RCV1b control the low voltage driver. Figure 4 shows an example scope capture of the ADATE334 in this configuration.

Figure 3. C-PHY single channel signaling level example
Table 9. C-PHY Driver Mode Register Setting Example
Register Address Name CHx Value CHx Mux Input
LOADCTL (0x05) [15:13] HV_DAT_x[2:0] 000 DAT0
LOADCTL (0x05) [12:11] HV_RCV_x[1:0] 00 RCV0
LOADCTL (0x05) [10:9] LV_VSWA_x[1:0] 01 DAT1b
LOADCTL (0x05) [8:6] LV_VSWB_x[2:0] 011 RCV1b
DRVCTL (0x03) [6] DRIVE_VT_HIZ_x 1 N/A1
DRVCTL (0x03) [5:3] DRIVE_FORCE_STATE_x[2:0] XXX N/A1
DRVCTL (0x03) [2] DRIVE_FORCE_x 0 N/A1
DRVCTL (0x03) [1:0] DRIVE_ENABLE_x[1:0] 1X N/A1
1 N/A means not applicable.

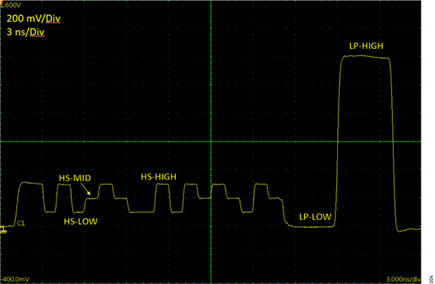

Figure 4. C-PHY waveform scope picture, 1Gbps

D-PHY Driver Example

The ADATE334 can be used to generate the four signaling levels utilized by D-PHY: LP-LOW, LP-HIGH, HS-LOW, and HS-HIGH. The HS signals have a smaller voltage swing at higher speeds and can be generated with the low voltage driver. The LP signals have a larger voltage swing at lower speeds and can be generated with the high voltage driver.

Figure 5 shows the D-PHY signaling levels and an example of corresponding ADATE334 output voltage levels. The internal high-speed multiplexers can be utilized to generate these output states with the high-speed inputs (DAT0, RCV0, DAT1, and RCV1). Table 10 shows how to configure the relevant ADATE334 registers to achieve this example configuration. Table 12 shows the corresponding truth table, mapping the high-speed inputs states to specific high voltage driver and low voltage driver output levels. Under this configuration, DAT0, DAT1, and RCV0 control the high voltage drivers, and RCV1 controls the low voltage drivers. Figure 6 shows an example scope capture of the ADATE334 in this configuration.

Figure 5. D-PHY single channel signaling level example
Table 10. D-PHY Driver Mode Register Setting Example
Register Address Name CH0 Value CH0 Mux Input CH1 Value CH1 Mux Input
LOADCTL (0x05) [15:13] HV_DAT_x[2:0] 000 DAT0 000 DAT1
LOADCTL (0x05) [12:11] HV_RCV_x[1:0] 10 RCV1 00 RCV1
LOADCTL (0x05) [10:9] LV_VSWA_x[1:0] 11 High 11 High
LOADCTL (0x05) [8:6] LV_VSWB_x[2:0] 010 RCV0 011 RCV0b
DRVCTL (0x03) [6] DRIVE_VT_HIZ_x 1 N/A1 1 N/A1
DRVCTL (0x03) [5:3] DRIVE_FORCE_STATE_x[2:0] XXX N/A1 XXX N/A1
DRVCTL (0x03) [2] DRIVE_FORCE_x 0 N/A1 0 N/A1
DRVCTL (0x03) [1:0] DRIVE_ENABLE_x[1:0] 1X N/A1 1X N/A1
1 N/A means not applicable.

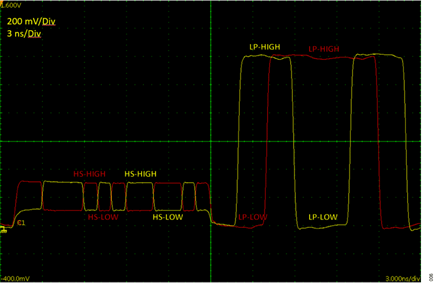

Figure 6. D-PHY scope plot, 1Gbps

Table 11. C-PHY Driver Mode Use Case Example
HV_DAT_0[2 :0] Address 0x05[15:13] HV_RCV_0[1:0] Address0x05[12:11] LV_SWA_0[1 :0] Address 0x05[10:9] LV_SWB_0[ 2:0] Address 0x05[8:6] HV_DAT_1[2:0] Address0x05[15:13] HV_RCV_1[1:0] Address0x05[12:11] LV_SWA_1[1:0] Address0x05[10:9] LV_SWB_1[2:0] Address0x05[8:6] RCV
0		 RCV
1		 DAT
0		 DAT
1		 Low Voltage Driver State, Channel x High Voltage Driver State, Channel x C-PHY Lane Level
Load Control Register, 0x05 High-Speed Inputs
000
(DAT0)		 00
(RCV0)		 01
(DAT1b)		 011
(RCV1b)		 X X X X 0 0 0 0 0 VIL LP-LOW
0 0 1 0 0 VIH LP-HIGH
1 1 X 1 – ½ VSWA ½ VSWB VIT HS-LOW
1 0 X 1 – ½ VSWA VIT HS-MID
1 0 X 0 0 VIT HS-HIGH
Table 12. D-PHY Driver Mode Use Case Example
HV_DAT_0[2:0] Address0x05[15:13] HV_RCV_0[1:0] Address0x05[12:11] LV_SWA_0[1:0] Address0x05[10:9] LV_SWB_0[2:0] Address0x05[8:6] HV_DAT_1[2:0] Address0x05[15:13] HV_RCV_1[1:0] Address0x05[12:11] LV_SWA_1[1:0] Address0x05[10:9] LV_SWB_1[2:0] Address0x05[8:6] RCV
0		 RCV
1		 DAT
0		 DAT
1		 Low Voltage Driver State, Channel 0 High Voltage Driver State, Channel 0 Low Voltage Driver State, Channel 1 High Voltage Driver State, Channel 1 D-PHY State Code
Load Control Register, 0x05 High-Speed Inputs Dp-Line Dn-Line
000
(DAT0)		 10
(RCV1)		 11
(High)		 010
(RCV0)		 000
(DAT1)		 00
(RCV1)		 11
(High)		 011
(RCV0b)		 0 0 0 0 – ½ VSWB0 VIL0 0 VIL1 LP-00
0 0 1 0 – ½ VSWB0 VIH0 0 VIL1 LP-10
0 0 0 1 – ½ VSWB0 VIL0 0 VIH1 LP-01
0 0 1 1 – ½ VSWB0 VIH0 0 VIH1 LP-11
0 1 X X – ½ VSWB0 VIT0 0 VIT1 HS-0
1 1 X X 0 VIT0 – ½ VSWB1 VIT1 HS-1

References

MIPI. 2022. https://www.mipi.org/.

ADATE334 Data Sheet, 2.3 GHz Dual Integrated DCL with PPMU, Level Setting DACs, and On-Chip Calibration Registers. Analog Devices.
