Introduction

This appnote shows step by step how to configure realtime operation with TwinCAT3 and ADI Trinamic EtherCAT modules. For example the TMCM-6213 is a six axes controller/driver module for 2-phase bipolar stepper. It supports EtherCAT interface with CoE CiA-402 Drive Profile for all axis. General usage of TwinCAT is not explained.

Preparation

It is recommended to update the ADI Trinamic module:

  • Firmware
  • EEPROM
  • ESI file (.xml)

ADI Trinamic module firmware should be at least v1.09. Example for files notation as follows:

  • TMCM-6213.xml
  • TMCM-6213_CoE_V109.bin
  • TMCM-6213_CoE_V109.hex

The files can be downloaded from the module page: https://www.trinamic.com/products/modules/details/tmcm-6213/

Create a new TwinCAT XAE project

Assign dedicated processor core to TwinCAT


Assignment of processor core needs to be done only once!

The processor core will be used for realtime motion NC_Task

  1. Read from Target
    Figure 1: Available CPU (Windows/Isolated) = 4/0 → no processor core is assigned to TwinCAT yet
    Fig 02
    Figure 1: Available CPU (Windows/Isolated) = 4/0 → no processor core is assigned to TwinCAT yet
  2. Set on target Assign processor core to TwinCAT:
    Fig 03
    Fig 04
    Fig 05
    Fig 06
    fig07
  3. After restart check the Task Manager -> Resource Monitor
Fig 08
Fig 09

The core assignment is permanent. In order to unassign processor core again repeat step 2. Using the Set on targe dialog and set Available (Windows/Isolated): 4/0

Fig 10

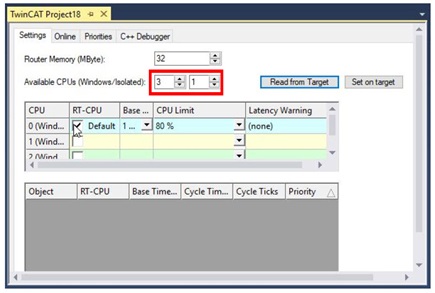

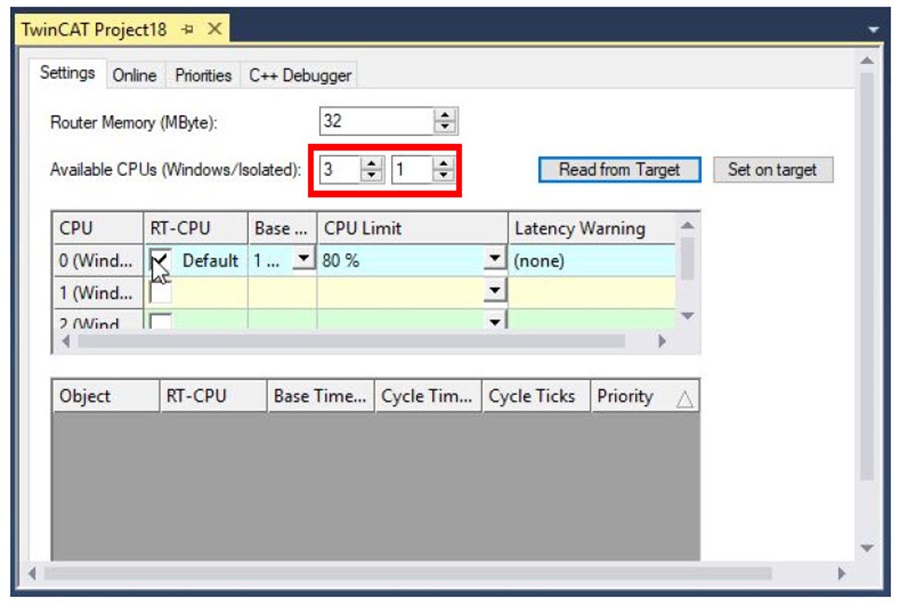

For the next steps in this app note, the configuration should be set to Available CPUs (Windows/Isolated): 3/1

Select assigned processor core

  1. Open TwinCAT Project.

    Project → System → Real-Time → Settings Tab
    Fig 11
  2. Choose Isolated CPU core.
    Fig 12
  3. Deactivate Windows CPU core.
    Fig 13
    Thus the windows core is reserved for TwinCAT real-time operations. In the next step the real-time operation will be activated.

Activate Configuration (Motion Task)

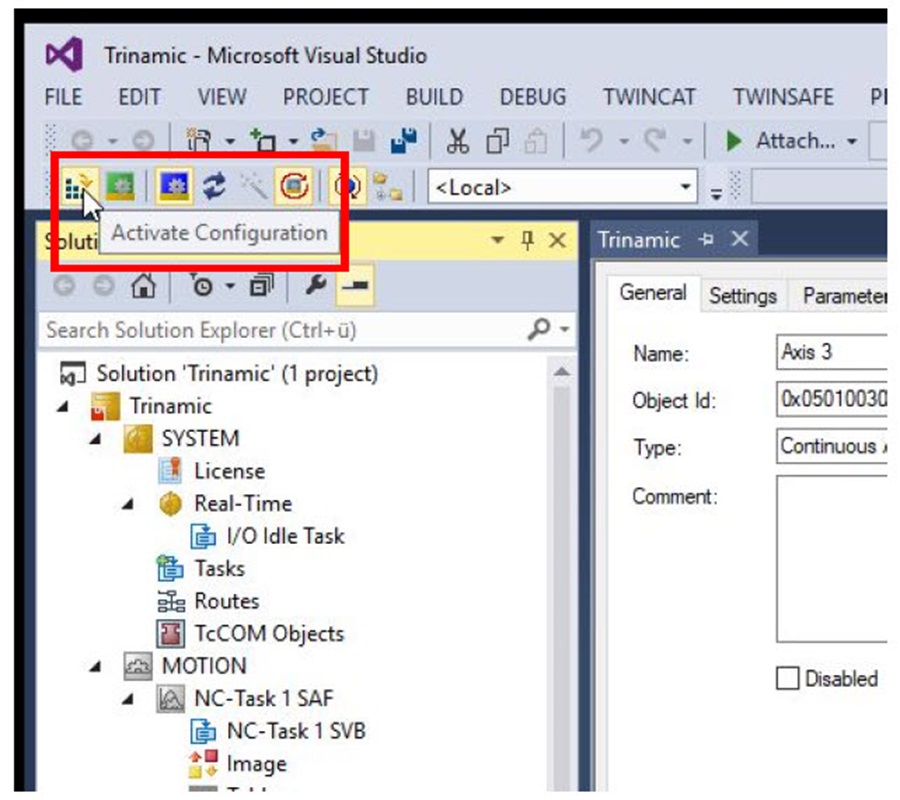

  1. Activate configuration.
    Fig 14
    Fig 15
    Fig 16
    Fig 17
    Enter the License code which is generated.

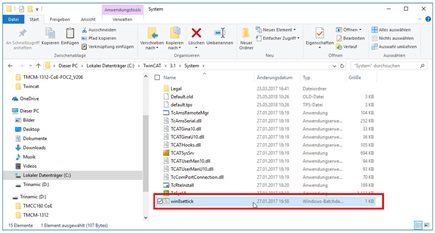

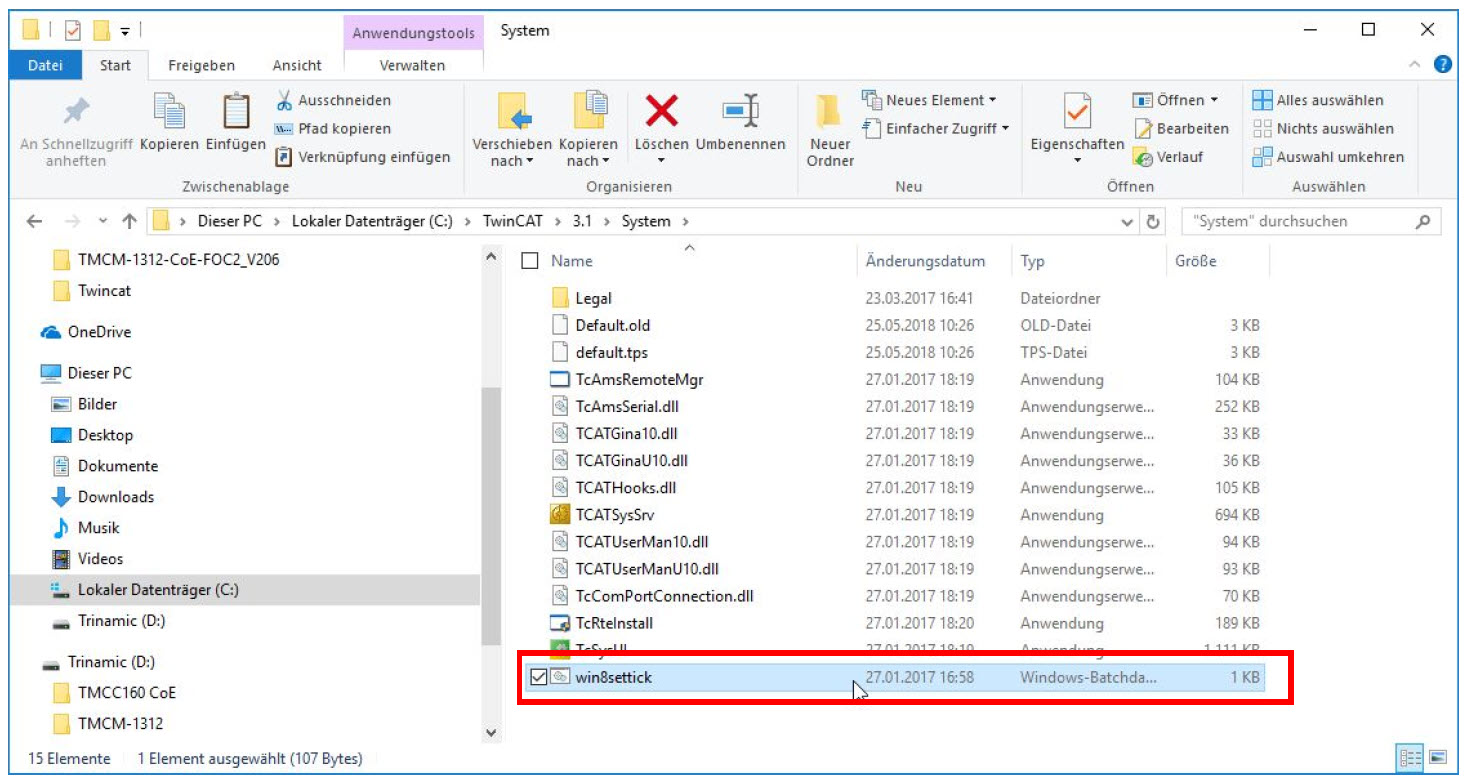

  2. Execute win8settick.bat as administrator if the following Error shows up. This is a TwinCat specific Error.

    Fig 18
    Fig 19

If the configuration is active, the green logo shows up in the bottom right corner.

Fig 20

Use Jogging Mode

Axis 1 is driven in Jogging Mode in this section.

  1. Configure Monitoring

    Axis 1 → Parameter → Monitoring → Set Every Value to False (since not provided by the module)

    Confirm every value by clicking on Download.
    Fig 21
    Fig 22
  2. Set axis 1 to CSP mode. Write 8 to Axis0 Modes of Operation 1

    Modes of Operation as SDO (Firmware v207)
    Fig 23
    Modes of Operation as PDO in (Firmware v208)
    Fig 24
  3. Enable Controller and Feed Fw/Bw

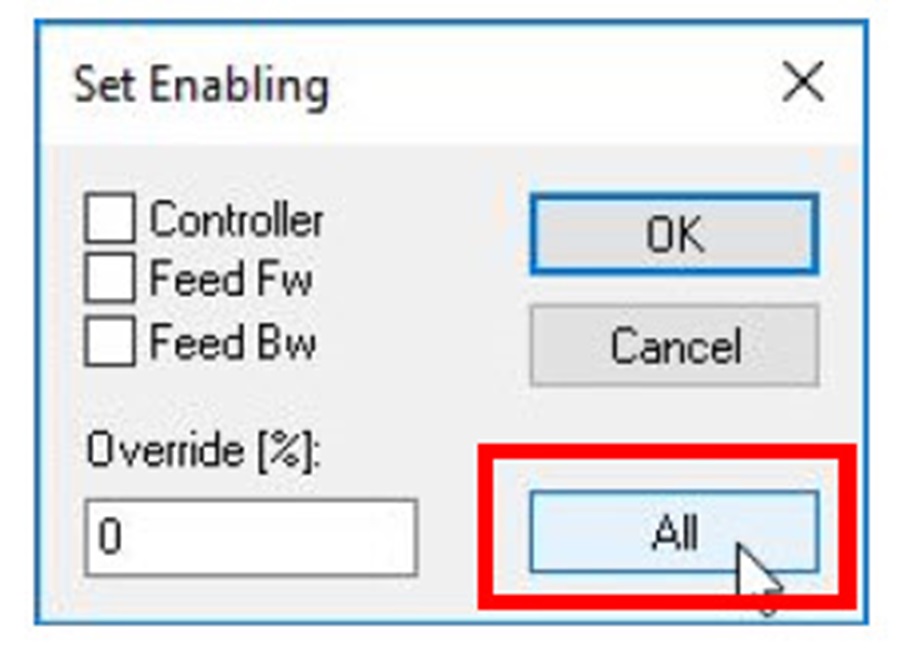

    Motion → Axes → Axis X → Tab Online → Enabling → Set → All
    Fig 25
    Fig 26

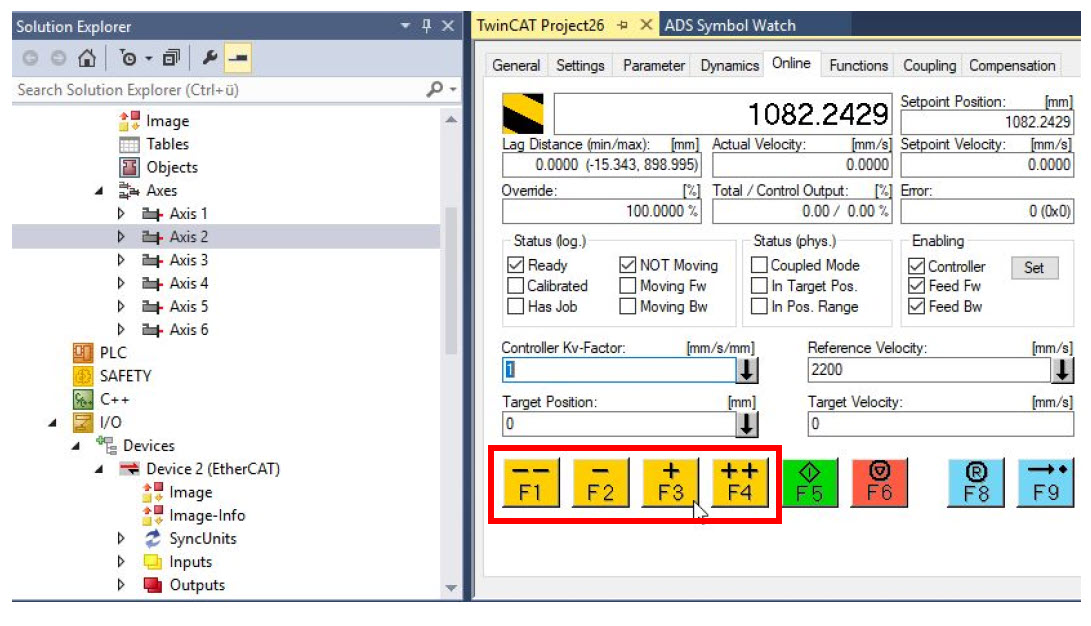

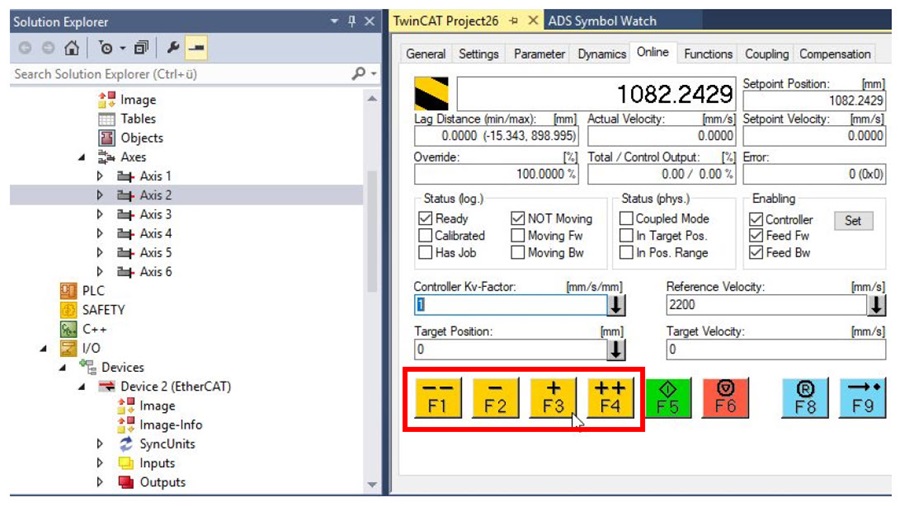

  4. Use Jog Control Buttons to move the axis X.
    FIg 28
