Multiparameter Water Quality Monitor

Overview

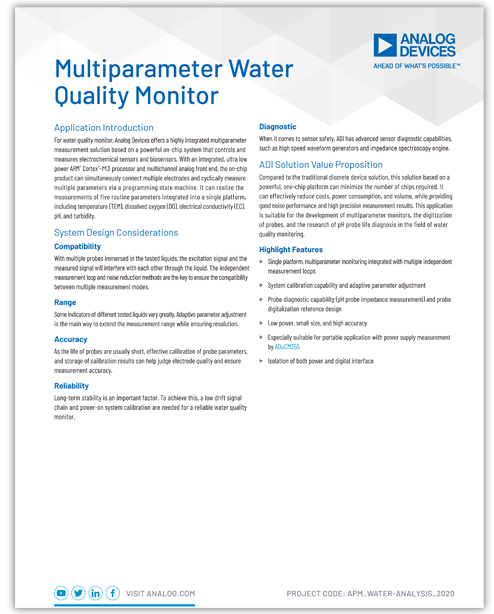

multi-parameter-water-quality-monitor_en

For water quality monitor, Analog Devices offers a highly integrated multiparameter measurement solution based on a powerful on-chip system that controls and measures electrochemical sensors and biosensors. With an integrated, ultra low power ARM® CortexTM-M3 processor and multichannel analog front end, the on-chip product can simultaneously connect multiple electrodes and cyclically measure multiple parameters via a programming state machine. It can realize the measurements of routine five parameters integrated into a single platform, including temperature (TEM), dissolved oxygen (DO), electrical conductivity (EC), pH, and turbidity.


ADI offers:
  • Single platform, multiparameter monitoring integrated with multiple independent measurement loops
  • System calibration capability and adaptive parameter adjustment
  • Probe diagnostic capability (pH probe impedance measurement) and probe digitalization reference design
  • Low power, small size, and high accuracy
  • Especially suitable for portable application with power supply measurement by ADuCM355
  • Isolation of both power and digital interface

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

System Block Diagram

multi-parameter-water-quality-monitor_pic

Other

Design Resources

Key Products
  • Precision Analog Microcontroller with Chemical Sensor Interface ADuCM355 — analog.com/aducm355
  • High Precision, Impedance, and Electrochemical Front End AD594x — analog.com/AD5940

Eval Tools
Reference Design
Application Article
