LT3477EFE | Constant Current Boost LED Driver, 2.7V ≤ V_IN ≤ 16V, V_LED up to 36V @ 330mA

Top

Overview

Product Details

Product Details

Demonstration circuit 841 is a constant current LED boost converter with input current and output voltage protection featuring the LT3477. The board is optimized to drive 330mA LED arrays with a total LED voltage between the maximum input voltage and 36V. The input voltage range is 2.7V to 16V.

DC841 has overvoltage protection below 36V if the LEDs are open or not properly attached to the terminals on the PCB

Applicable Parts

LT3477

Documentation & Resources

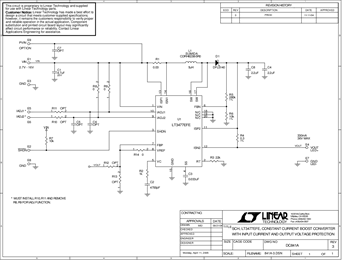

Demo Board Schematic

DC841A - Schematic
9/24/2009

PDF

24K

User Guide

DC841A - Demo Manual
9/24/2009

PDF

265K

Evaluation Design File

DC841A - Design File
9/24/2009

ZIP

608K

Software

LTspice

ASC

4.00K

LT3477 Demo Circuit - 3A, Monolithic Boost LED Driver DC/DC Converter (5V to string of 8 3.5V LEDs @ 330mA)
