DC701A

LTC3407EDD Demo Board | (DFN) V_IN = 2.5V to 5.5V, V_OUT1 = 1.2V / 1.5V/1.8V @ 600mA, V_OUT2 = 2.5V @ 600mA

Top

Overview

Product Details

Product Details

Demonstration circuit 701 is a Dual Synchronous, 600mA, 1.5MHz Step-Down DC/DC Regulator featuring the LTC3407 in the 3x3 DFN-10 package. The DC701 has an input voltage range of 2.5V to 5.5V, and either output is capable of delivering up to 600mA of output current. In Burst Mode^® operation, the LTC3407 requires only 40uA of quiescent current; in Pulse Skip mode, the LTC3407 provides lower output ripple voltage at light load currents. The DC701 can provide up to 96% efficiency on either channel and consumes less than 1uA in shutdown.

Applicable Parts

LTC3407

Documentation & Resources

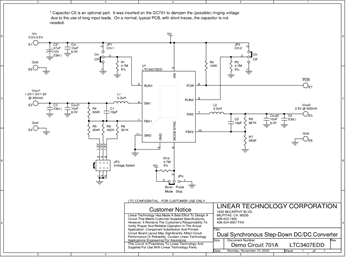

Demo Board Schematic

DC701A - Schematic
9/24/2009

PDF

20K

User Guide

DC701A - Demo Manual
9/24/2009

PDF

143K

Evaluation Design File

DC701A - Design File
9/24/2009

ZIP

606K

Software

LTpowerCAD

LTC3407 Project - Dual 600mA, 1.5MHz Monolithic, Synchronous Step-Down Regulator (2.7-5.5V to 2.5V @ 600mA)

LTspice

ASC

4.00K

LTC3407 Demo Circuit - Dual 1.5MHz, 600mA, Synchronous Step-Down Regulator (3.3V to 1.2V @ 600mA & 1.8V @ 600mA)
