Demonstration circuit 662 is a monolithic step-down DC/DC switching converter featuring the LT1933 in the TSOT-23-6 package. The board is optimized for 3.3V output at up to 500mA load current and requires an input voltage ranging from 4.5V to 36V.

Applicable Parts

Documentation & Resources

  • View All (3)

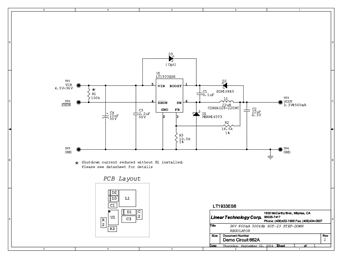

  • Demo Board Schematic (1)
