LT1934ES6/LT1934ES6-1 Demo Board | 2 Circuits, 4.5V ≤ V_IN ≤ 34V, V_OUT = 3.3V/5V @ 250mA (LT1934) and 50mA (LT1934-1)

Top

Overview

Product Details

Product Details

Demonstration circuit 544 features the LT1934 and LT1934-1 wide input range micro power step-down switching regulators. There are two switching regulator circuits in DC544, the LT1934ES6 circuit designed to convert a 4.5V to 34V input voltage range to 3.3V or 5V (jumper-selectable) at 250mA output, and the LT1934ES6-1 circuit designed for the same input and output voltages but at a lighter 50mA load current. For 5V output operation, the input voltage range is 6.5V to 34V.

Applicable Parts

LT1934

Documentation & Resources

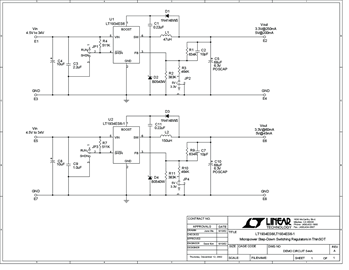

Demo Board Schematic

DC544A - Schematic
9/24/2009

PDF

42K

User Guides

DC544A - Demo Manual
9/24/2009

PDF

226K

Evaluation Design Files

DC544A - Design File
9/24/2009

ZIP

458K

Software

LTspice

ASC

2.00K

LT1934 Demo Circuit - µPower Step-Down Regulator (6.5-34V to 5V @ 250mA)

ASC

3.00K

LT1934-1 Demo Circuit - µPower Step-Down Regulator (10V to 3.3V @ 45mA)
