DC326C

LT1766EFE | 1.5A, 200kHz High Voltage Buck Converter, V_IN = 6V-60V, V_OUT = 5V @ 1A

Top

Overview

Product Details

Product Details

DC326C: Demo Board for LT1766 5.5V to 60V 1.5A, 200kHz Step-Down Switching Regulator.

Applicable Parts

LT1766

Documentation & Resources

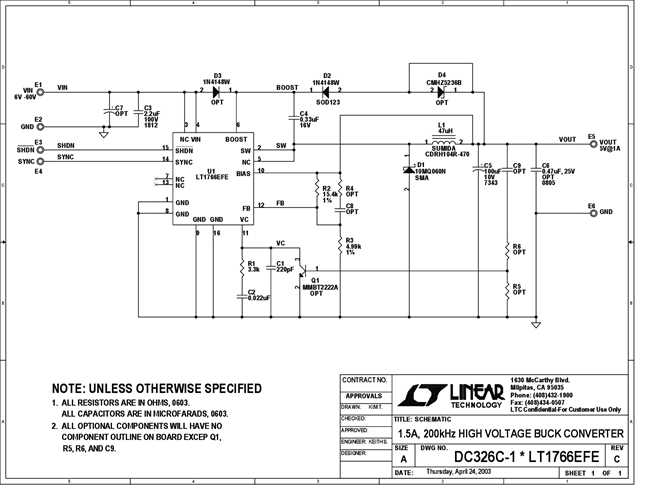

Demo Board Schematic

DC326C - Schematic
9/24/2009

PDF

70K

User Guide

DC326C - Demo Manual
9/24/2009

PDF

356K

Evaluation Design File

DC326C - Design File
9/24/2009

ZIP

518K

Software

LTspice

LT1766 Demo Circuit - High Voltage 60V 1.5A, 200kHz Step-Down Regulator (12V to 5V @ 1A)
