Overview

Product Details

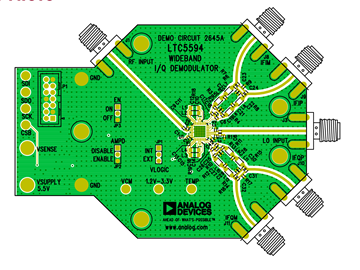

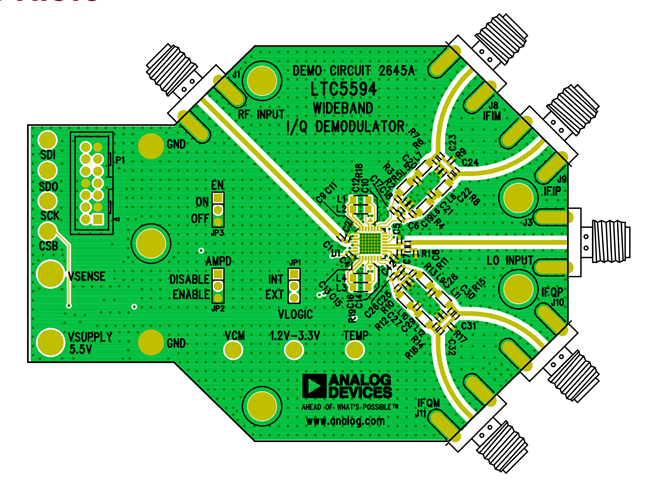

Demonstration circuit 2645A showcases the LTC5594 300MHz to 9GHz high linearity I/Q demodulator with wideband IF amplifiers. The USB serial controller, DC590B, is required to control and configure LTC5594 for its evaluation.
