DC2240A

LT8714EFE Demo Board | Synchronous 4-Quadrant Controller, 10V ≤ V_IN ≤ 14V, -5V ≤ V_OUT ≤ 5V @ 5A

Top

Overview

Product Details

Product Details

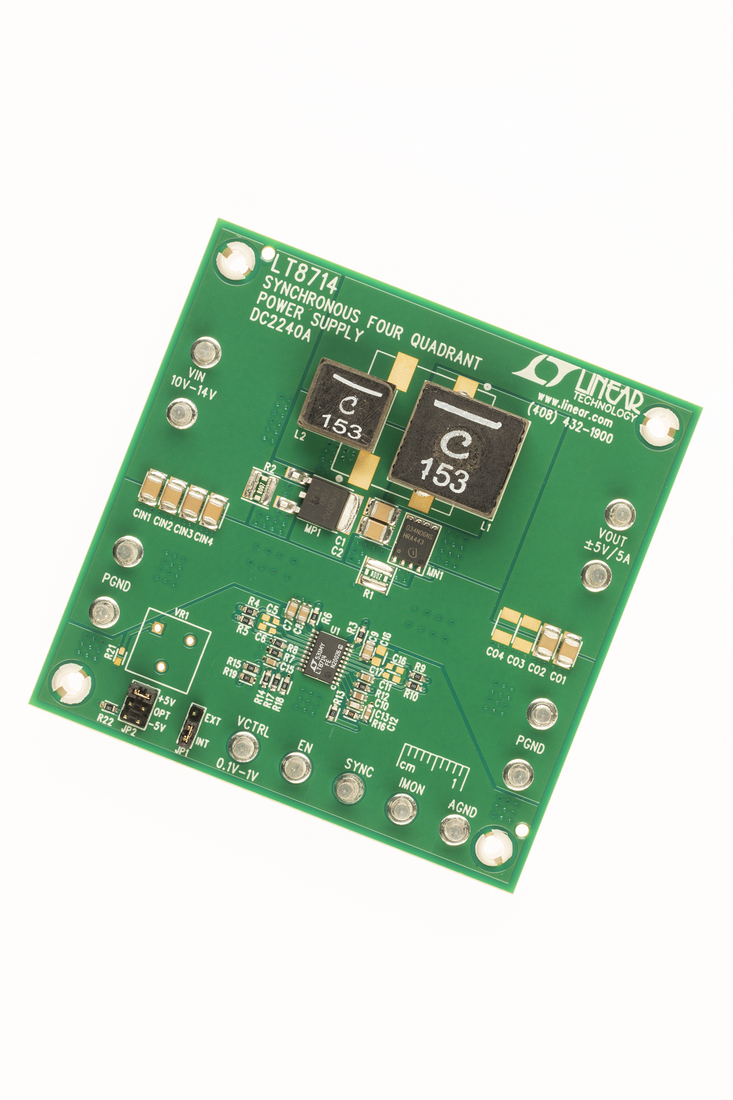

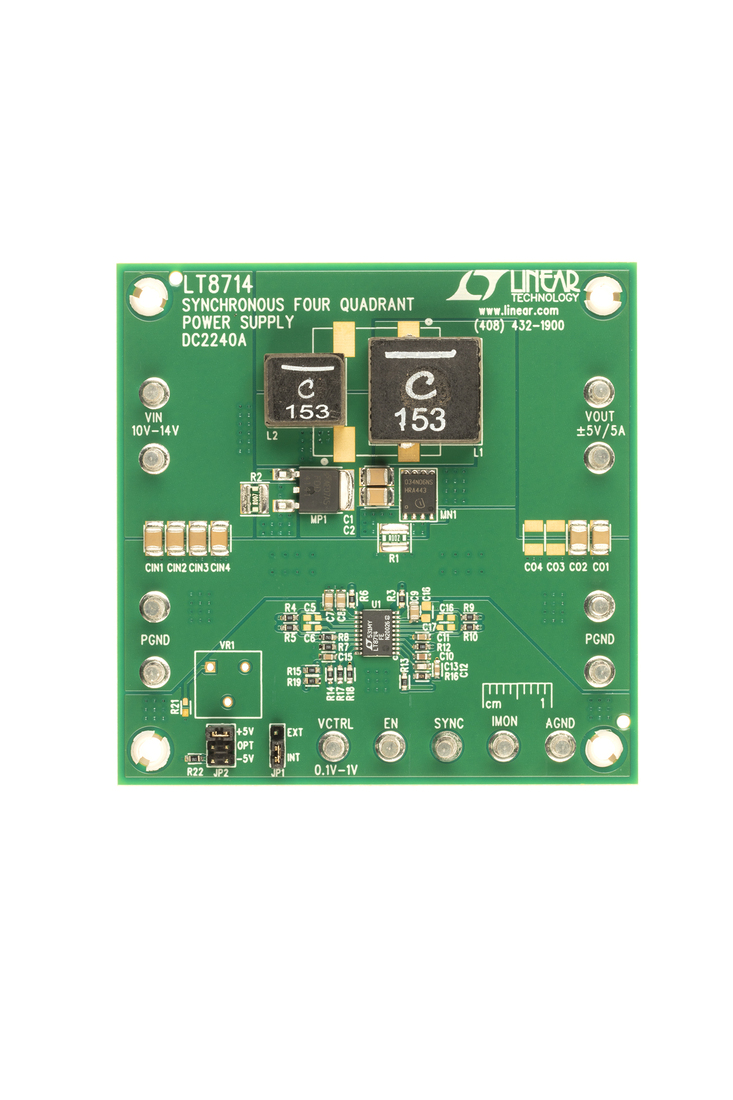

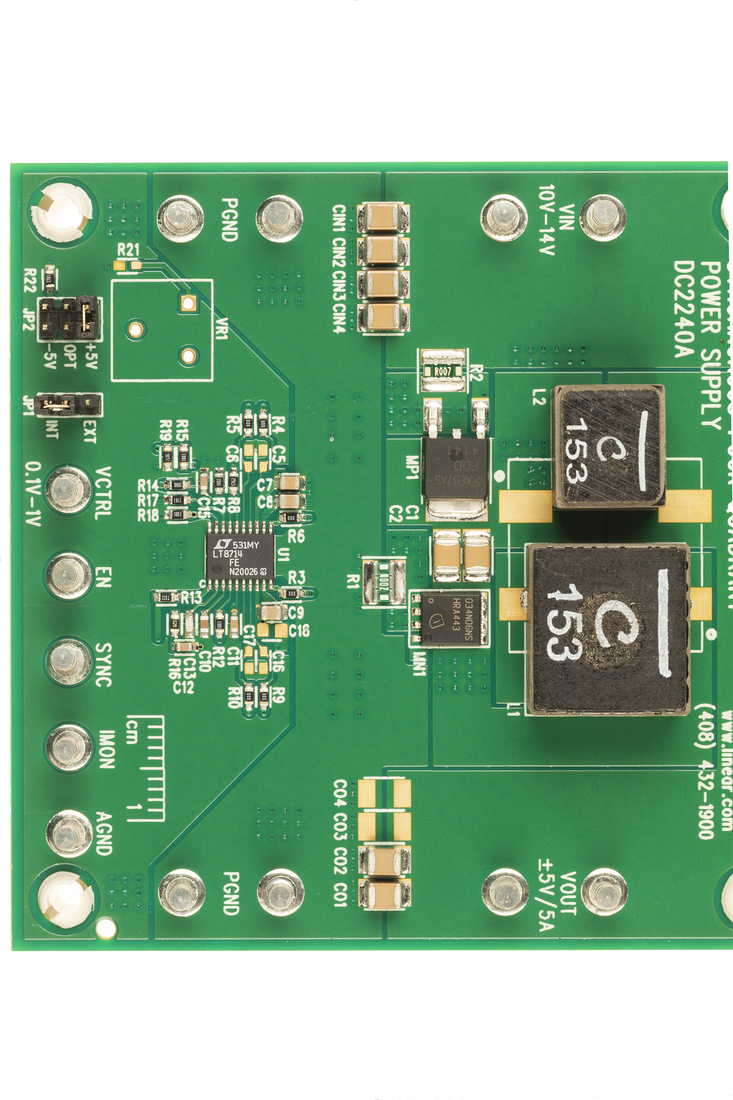

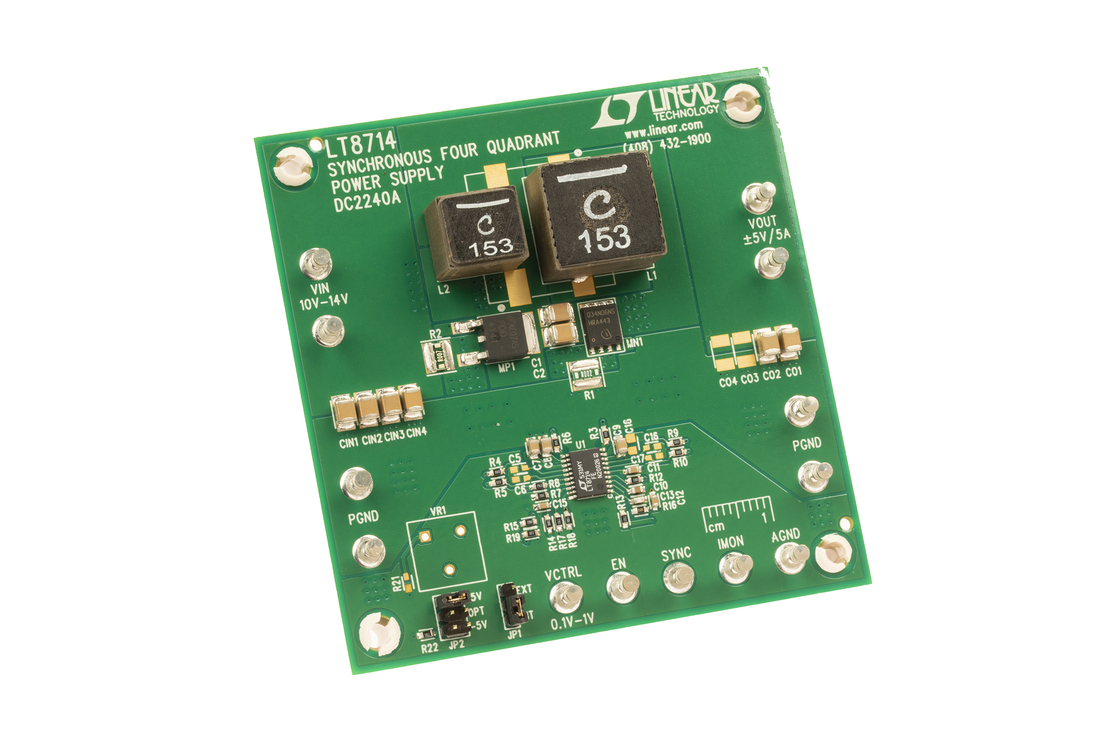

Demonstration circuit 2240A is a synchronous four quadrant converter featuring the LT8714 switching controller. The LT8714 can regulate to positive, negative, or zero volts when configured as a four-quadrant topology. The DC2240A regulates from a 10V to 14V input source to an adjustable output voltage from positive 5V to negative 5V with a 5A maximum current rating.

Applicable Parts

LT8714

Documentation & Resources

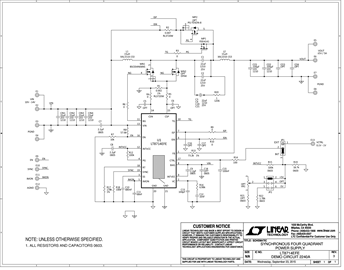

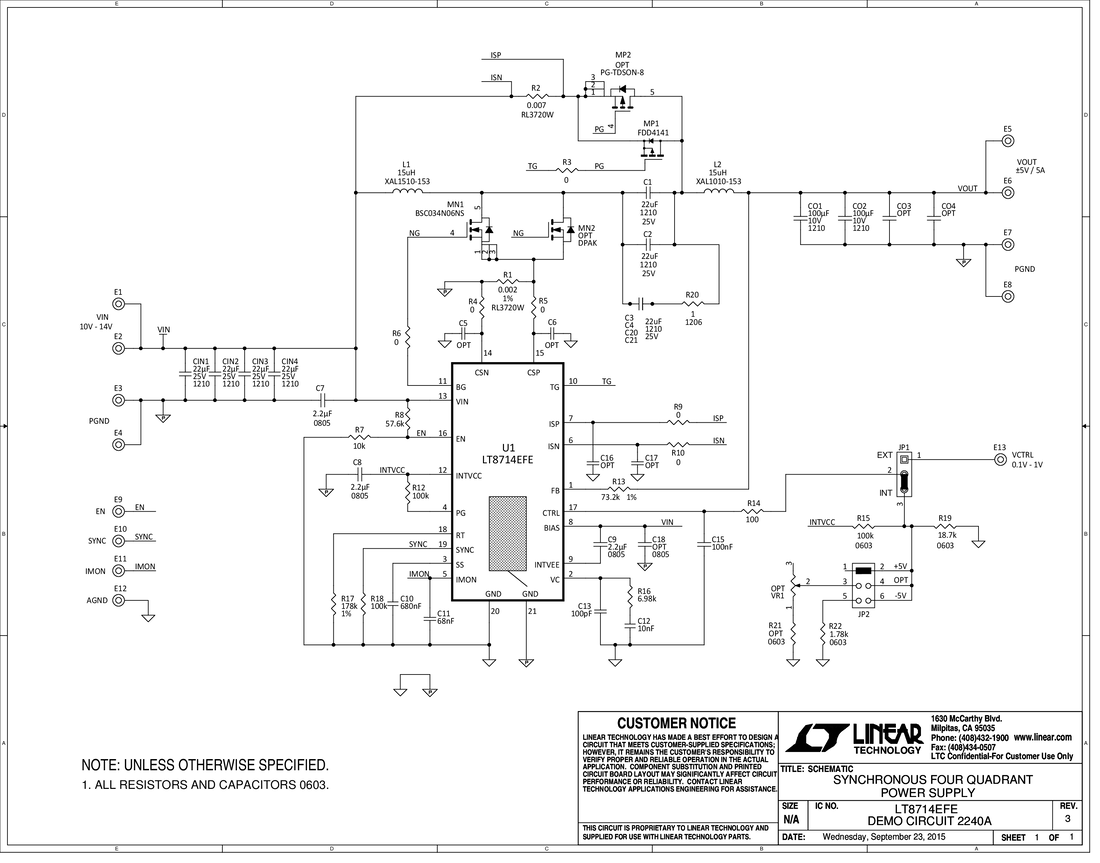

Demo Board Schematic

DC2240A - Schematic
10/30/2015

PDF

76K

User Guides

DC2240A - Demo Manual
10/30/2015

PDF

262K

Evaluation Design Files

DC2240A - Design Files
4/21/2016

ZIP

1M

Software

LTspice

ASC

5.67 K

LT8714 Demo Circuit - Synchronous Four Quadrant Converter Using Uncoupled Inductors (10-14V to -5V to 5V @ -5A to 5A)

ASC

5.00K

LT8714 Demo Circuit - Synchronous Four Quadrant Converter with Power Good Indication (10-14V to -5V to 5V @ -5A to 5A)

Buy

Pricing displayed is based on 1-piece.

Pricing displayed is based on 1-piece. The USA list pricing shown is for budgetary use only, shown in United States dollars (FOB USA per unit), and is subject to change. International prices may vary due to local duties, taxes, fees and exchange rates.
