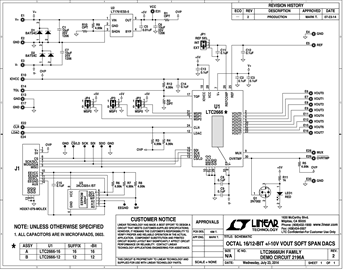

DC2196A - Schematic9/1/2015PDF40K
DC2196A-B
LTC2666-12 Demo Board | 8-Channel 12-Bit ±10V VOUT SoftSpan DAC with 10ppm/°C Max Reference (requires DC2026 or DC590)
Top
Overview
Product Details
Demonstration circuit 2196A features the LTC2666, 8-channel 16-Bit/12-Bit ±10V VOUT SoftSpan™ DACs with 10ppm/°C max reference in a 5mm × 5mm QFN package. This device features per-channel SoftSpan configuration with five output ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, and ±10V. A toggle feature allows any or all DACs to switch between two programmed codes via a single SPI command or by the TGP input pin. The versatile SPI interface can operate on any logic level between 1.71V and 5.5V, for easy interface to lower voltage microcontrollers or FPGAs.
Applicable Parts
Documentation & Resources
-
DC2196A - Demo Manual9/1/2015PDF329K
-
DC2196A - Design Files9/1/2015ZIP1M
