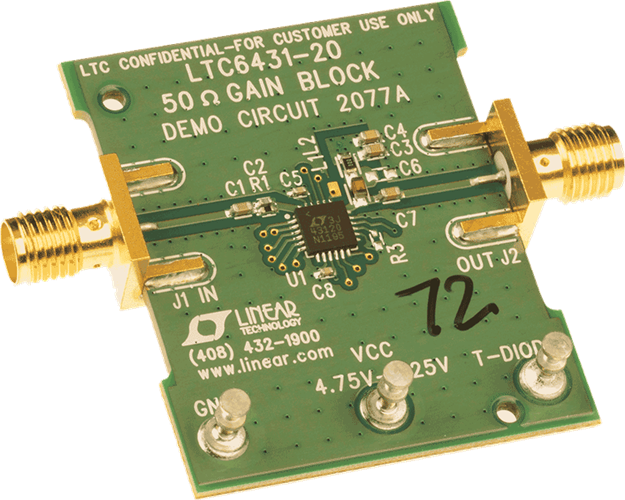

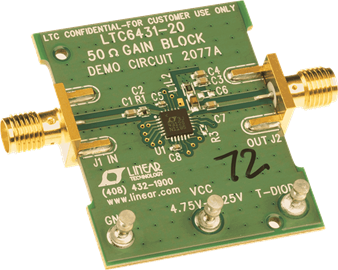

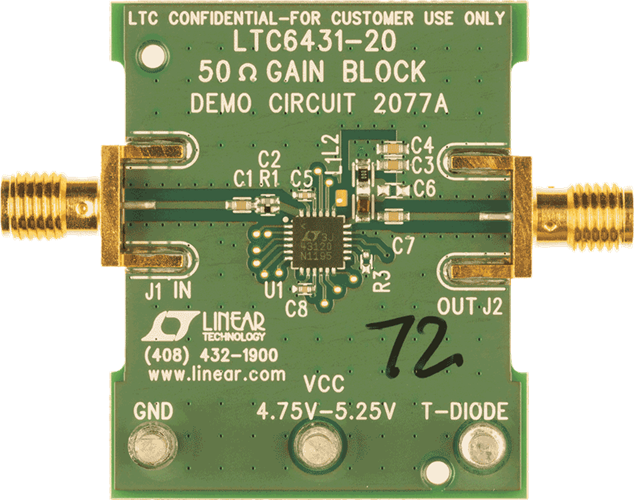

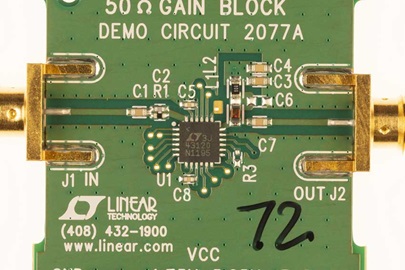

Demonstration circuit 2077A features the LTC6431-20 50Ω gain block IF amplifier. The LTC6431-20 has a power gain of 20.8dB and it is part of the LTC6431-YY amplifier series.
