Overview

Product Details

The DC2023A is a demonstration system for the LTM2987 16-channel I2C/SMBus/PMBus power system manager with EEPROM. The LTM2987 monitors and controls 16 power supply rails. The DC2023A demonstrates the ability of the LTM2987 to sequence, trim, margin, supervise, monitor, and log faults for 16 power supply rails. Each power supply channel’s output voltage is monitored and the LTM2987 monitors its own internal die temperature.

Applicable Parts

Documentation & Resources

  • View All (4)
  • Design Tools (1)

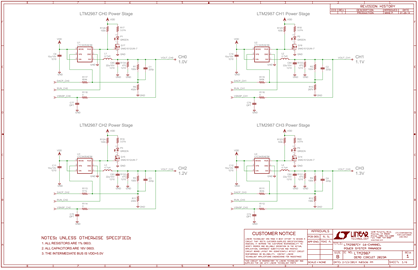

  • Demo Board Schematic (1)
  • User Guides (1)
  • Evaluation Design Files (1)
    • Document Type

    Software

    Design Tools

    LTpowerPlay®
    LTpowerPlay® is a powerful, Windows-based development environment supporting Linear Technology's Digital Power System Management (PSM) products.
