DC1780A-B

LTM4620EV Demo Board | LTM4620 (x3) PolyPhase µModule Buck, 4.5V ≤ V_IN≤ 16V, V_OUT= 1.0V/1.2V/1.5V/1.8V/2.5V @ 75A

Top

Overview

Product Details

Product Details

Demonstration circuit 1780A-B features PolyPhase^® design using the LTM4620EV, the high efficiency, high density, dual 13A, switch mode step-down power module regulator. The input voltage is from 4.5V to 16V. The output voltage is jumper selectable from 1.0V to 2.5V. DC1780A-B can deliver nominal 75A output current with 3× LTM4620s in parallel. Output current derating is necessary for certain V_IN, V_OUT, and thermal conditions.

Applicable Parts

LTM4620

Documentation & Resources

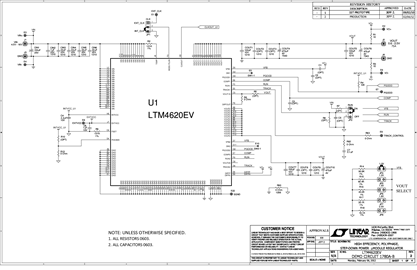

Demo Board Schematic

DC1780A-B - Schematic
8/3/2012

PDF

216K

User Guide

DC1780A-B Demo Manual
8/3/2012

PDF

690K

Evaluation Design File

DC1780A-B - Design Files
8/3/2012

ZIP

4M

Software

LTpowerCAD

LTM4620 Project - PolyPhase Step-Down µModule Regulators (4.5-16V to 1.2V @ 75A)

LTspice

ASC

6.00K

LTM4620 Demo Circuit - High Efficiency PolyPhase Step-Down µModule Regulator (4.5-16V to 1V @ 75A)
