DC1533A

LTM8045 Demo Board | Inverting/SEPIC µModule Converter, 2.8V ≤ V_IN ≤ 18V, V_OUT = 5V or –5V @ up to 700mA

Top

Overview

Product Details

Product Details

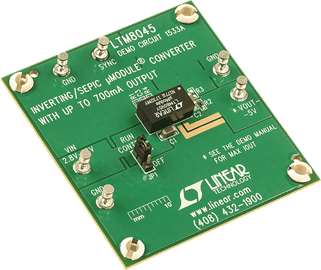

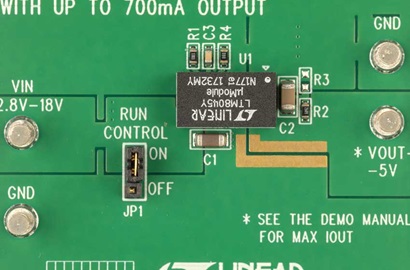

Demo circuit DC1533A features the LTM8045, an inverting/SEPIC μModule converter delivering up to 700mA of output current. DC1533A is configured as an inverting converter, but can be easily changed to a SEPIC configuration for non-inverting step-up or step-down functionality. The user adjustable features of the LTM8045 such as output voltage, switching frequency, soft-start period and undervoltage lockout can be changed on DC1533A simply by modifying or installing the appropriate resistors or capacitor.

Markets and Technologies

Instrumentation & Measurement (2)
- DC Sources & Power Supplies
- Precision Measurement

Applicable Parts

LTM8045

Documentation & Resources

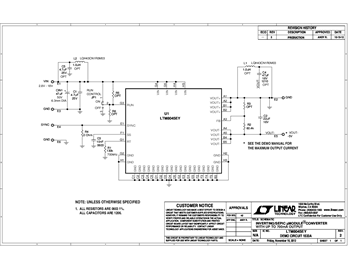

Demo Board Schematic

DC1533A - Schematic
2/5/2013

PDF

45K

User Guides

DC1533A - Demo Manual
2/5/2013

PDF

234K

Evaluation Design Files

DC1533A - Design Files
2/5/2013

ZIP

671K

Software

LTspice

ASC

1.00K

LTM8045 Demo Circuit - Negative 5V Inverting Converter (2.8-18V to -5V @ 430mA)

Related Hardware (1)

Reference Designs

CN0511
DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power
