DC1290A-A

LTC3775EUD Demo Board | 5V ≤ V_IN ≤ 26V, V_OUT = 1.2V @ 15A

Top

Overview

Product Details

Product Details

Demonstration circuit 1290A is a high frequency synchronous step-down converter featuring the LTC3775EUD. The package style for the LTC3775EUD is a 16-pin 3mm x 3mm QFN. Two versions of the demonstration board are available. DC-1290A-A has been optimized for 5V to 26V input and typically provides 1.2V/15A, while the DC1290A-B is optimized for 5V to 36V_IN range and typically provides 1.2V/10A.

Applicable Parts

LTC3775

Documentation & Resources

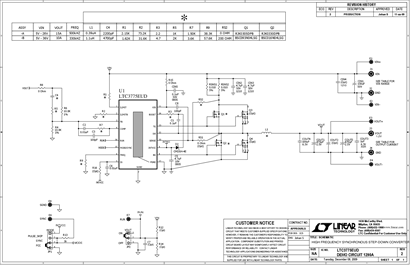

Demo Board Schematic

DC1290A - Schematic
1/15/2010

PDF

69K

User Guide

DC1290A - Demo Manual
1/15/2010

PDF

890K

Evaluation Design File

DC1290A - Design Files
1/15/2010

ZIP

2M

Software

LTspice

ASC

4.00K

LTC3775 Demo Circuit - Synchronous Step-Down (5-26V to 1.2V @ 15A)
